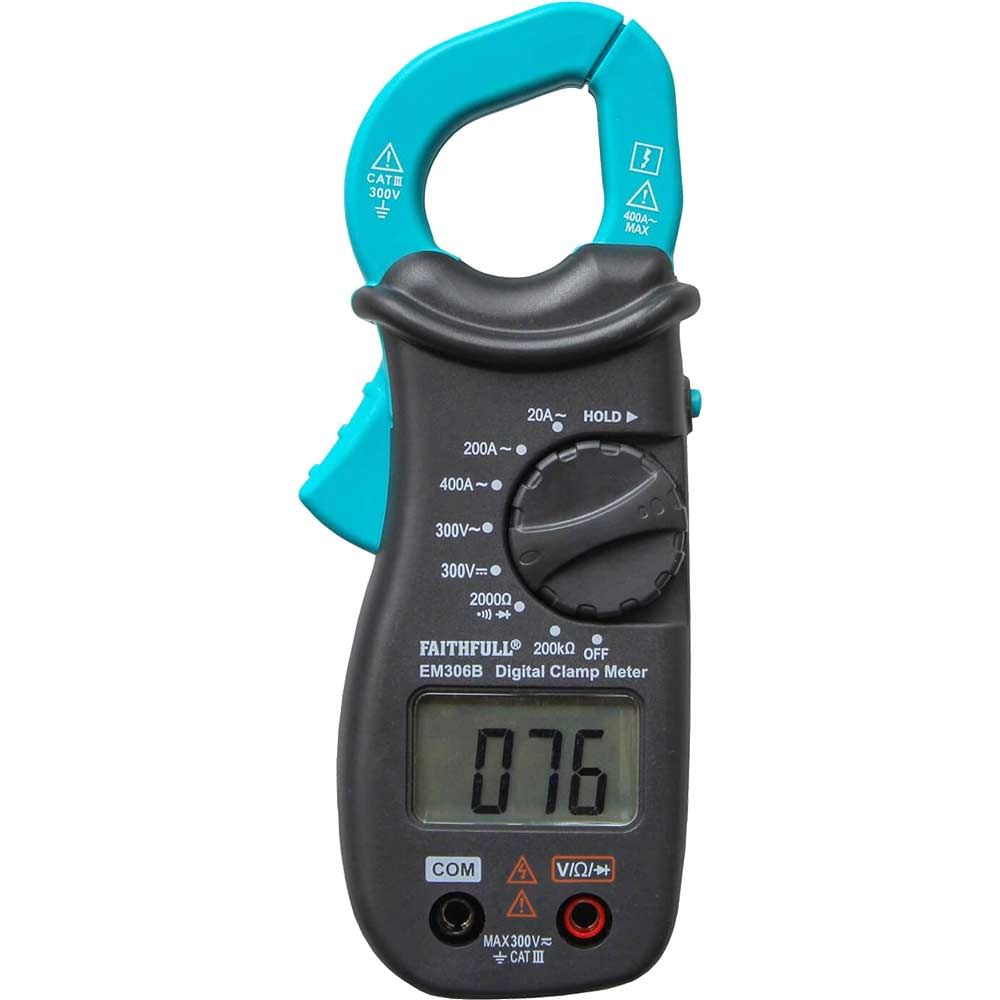

Faithfull Mini Clamp Meter

The Faithfull Mini Clamp Meter is a compact electrical testing instrument designed for measuring voltage, current and resistance across a range of professional and domestic applications. This versatile tool combines the functionality of a digital multimeter with an integrated current sensor clamp, making it ideal for electricians, maintenance engineers and DIY enthusiasts working in workshops, warehouses, laboratories or at home.

The 25mm clamp jaw allows for quick, non-contact current measurement on conductors up to 25mm diameter, whilst the supplied test leads enable accurate voltage and resistance testing. The instrument measures AC and DC voltage up to 300V, AC current, resistance up to 200kO, and includes diode checking and continuity testing functions for comprehensive electrical diagnostics.

A clear 3.1/2 digit LCD display provides precise readings, whilst the data hold function allows you to freeze measurements on screen for recording or analysis. This lightweight meter weighs approximately 125g and measures just 151 x 65 x 34mm, making it highly portable for site work or field testing. The unit comes complete with batteries, test leads and user manual, providing everything needed to start testing immediately.

Features and Benefits:
• Data hold function freezes readings on screen for easy recording
• Compact 151mm design fits easily in tool bags or pockets
• Measures both AC and DC voltage for versatile applications
• 25mm clamp capacity suitable for most standard cables
• Continuity testing (less than 30O) for circuit verification
• Supplied complete with batteries and test leads

Specifications:
Min. Voltage (V): 0
Max. Voltage (V): 300
Current Type: AC/DC
Clamp Capacity: 25mm
Max. Measurable Conduction: 25mm
Power: 3 x 3V CR2032 batteries (supplied)
Dimensions: 151 x 65 x 34mm
Weight: approx. 125g (excluding battery)
