Festool DF 500 RQ Domino Jointer Set

The Festool DF 500 RQ Domino Jointer Set is a precision loose-tenon jointing system designed for carpenters and joiners who demand accurate, repeatable timber connections across a wide range of applications.

At the heart of the system is Festool's distinctive pendulum routing action, which cuts precise elongated mortises that accommodate the specially shaped DOMINO dowels. This combination delivers joints with the structural strength of traditional mortise and slot joinery, while offering the speed and ease of a biscuit jointer. The result is twist-proof, stable connections — even on narrow cross sections or delicate workpieces.

The DF 500 RQ is equally at home creating frame joints in solid wood, panel joints in sheet materials, or mitre joints for furniture and cabinetry work. DOMINO dowels are available in sizes from 4 x 20 mm to 10 x 50 mm, in timber grades suited to both interior and exterior applications. For installations that may need to be dismantled, DOMINO core connectors and furniture fittings enable sturdy yet removable assemblies.

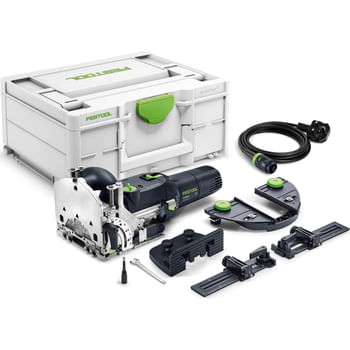

This set is supplied complete with a DOMINO cutter D5, additional stop, trim stop, cross stop, open-ended spanner, WAF 8, a 4-metre plug-it power cable, and a Systainer SYS3 M 187 for organised storage and transport.

Features and Benefits:
• Pendulum milling principle delivers accurate, repeatable mortises with minimal effort
• Built-in stop pins allow precise, consistent dowel placement across multiple workpieces
• DOMINO dowels provide twist-proof joints combining the strength of mortise and slot joinery
• Compatible with dowel sizes from 4 x 20 mm to 10 x 50 mm for versatility across timber dimensions
• Mitre routing adjustable from 0° to 90° for angled joint applications
• Routing height adjustable from 5 to 30 mm to suit varying material thicknesses
• 27 mm dust extraction port for connection to compatible extraction systems
• Supplied in a Systainer SYS3 M 187 for secure storage and integration with the Festool system

Specifications:
Power consumption: 420 W
Idle engine speed: 25,500 min?¹
Depth stop for routing depth: 12, 15, 20, 25, 28 mm
Max. routing depth: 28 mm
DOMINO groove cutter diameter: 4, 5, 6, 8, 10 mm
Routing height adjustment: 5–30 mm
Mitre routing: 0–90°
Dust extraction connection diameter: 27 mm
Cable length: 4 m
Drive type: Mains
Product weight (without accessories): 3.60 kg
Transport weight (incl. accessories): 6.5 kg
Vibration total average, Ah: 2.50 m/s²
Vibration uncertainty, K: 1.50 m/s²
Sound pressure level, LpA: 85.00 dB(A)
Sound power level, LWA: 96.00 dB(A)
Noise uncertainty, K: 1.50 dB
Standards: EN 60745-2-19

Contents:
DOMINO cutter D5
Additional stop
Trim stop
Cross stop
Open-ended spanner WAF 8
Plug-it power cable (4 m)
Systainer SYS3 M 187
