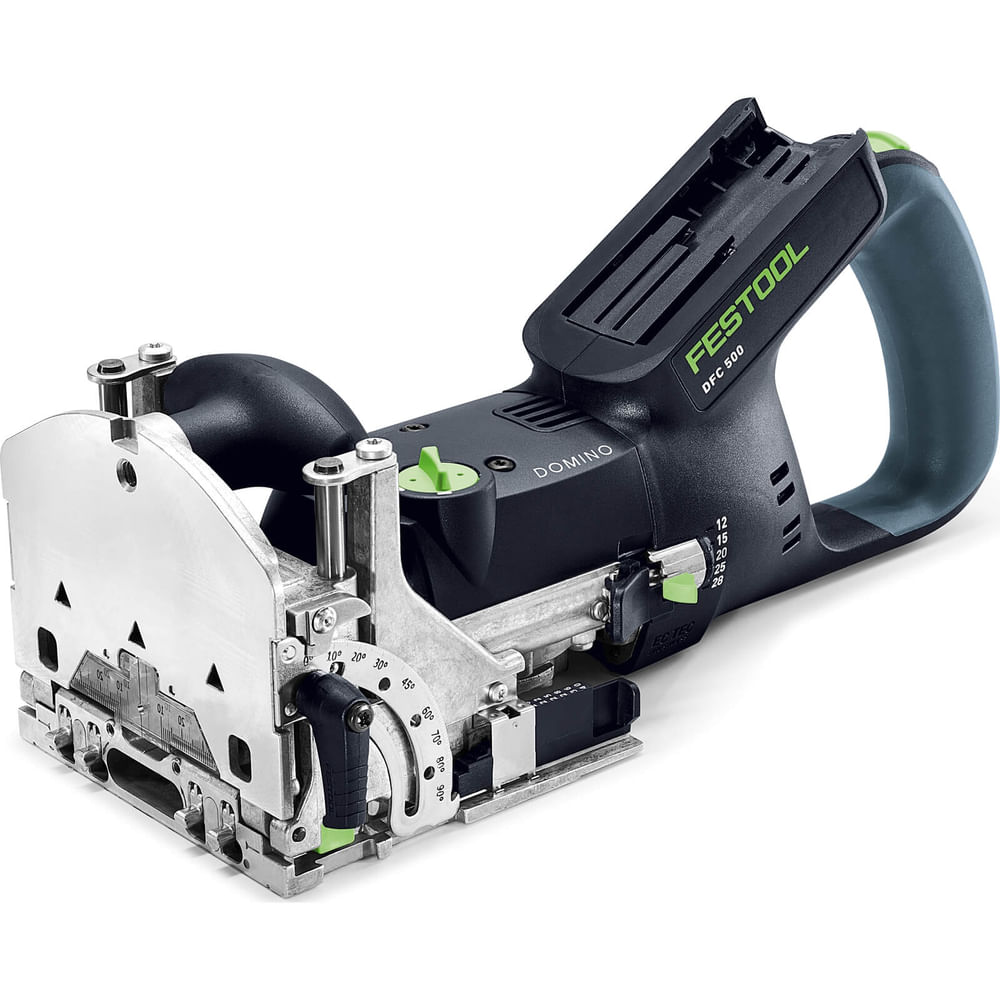

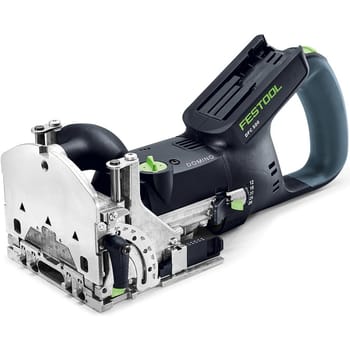

Festool DFC 500 E 18v Cordless Domino Jointer

The Festool DFC 500 E is an 18V cordless Domino jointer designed for creating precise, twist-proof mortise and tenon-style joints in solid wood and panel materials without the restriction of a power cable.

At the heart of the system is Festool's unique pendulum routing motion, which produces accurate elongated holes for the DOMINO dowel to seat into. This distinctive jointing method combines the strength of traditional slotted and tenon joints with the flexibility of flat dowels, making it equally well-suited to fine cabinet work and robust outdoor structures.

The cordless format with its ergonomic spade handle makes the DFC 500 E ideal for on-site joinery, workshop furniture making, and frame construction where mobility and repeatability are essential. Built-in stop pins ensure consistent dowel placement across multiple workpieces, while five routing depth settings (12, 15, 20, 25, and 28 mm) and a routing height adjustment range of 5–30 mm give precise control across a wide range of joint configurations.

DOMINO dowels are available in cutter diameters from 4 mm to 10 mm, with two wood types covering both indoor and outdoor applications. The mitre routing capability of 0–90° extends the system further, enabling stable angled joints for frame and panel work.

Features and Benefits:
• Cordless freedom: 18V battery drive gives full mobility in the workshop or on-site
• Pendulum routing principle: Produces precise, twist-proof elongated holes with minimal effort
• Ergonomic spade handle: Reduces fatigue during extended use
• Built-in stop pins: Ensure repeatable, consistent dowel placement
• Five routing depth settings: 12, 15, 20, 25, and 28 mm for versatile joint configurations
• Mitre routing: 0–90° range for angled frame and panel joints
• DOMINO connector compatibility: Supports demountable furniture connections
• Dust extraction ready: 27 mm extraction port for cleaner working conditions
• Systainer storage: Supplied in Festool SYS3 M 237 Systainer for organised transport and storage

Specifications:
Battery voltage (rated voltage): 18 V
Idle engine speed: 18,500 min?¹
Depth stop for routing depth: 12, 15, 20, 25, 28 mm
Max. routing depth: 28 mm
DOMINO groove cutter diameter: 4, 5, 6, 8, 10 mm
Routing height adjustment: 5–30 mm
Mitre routing: 0–90°
Dust extraction connection diameter: 27 mm
Drive type: Battery
Product weight without accessories: 3.40 kg
Transport weight incl. accessories: 6.0 kg
A-weighted sound pressure level (LpA): 87 dB(A)
A-weighted sound power level (LWA): 98 dB(A)
Total vibration average (Ah): 2.50 m/s²
Vibration uncertainty (K): 1.50 m/s²
Noise uncertainty (K): 1.50 dB
Standards: EN 60745-2-19
• Wide cutter range: Compatible with DOMINO cutter diameters from 4 to 10 mm

Contents:
DOMINO cutter D5
Additional stop
Open-ended spanner WAF 8
Systainer SYS3 M 237
