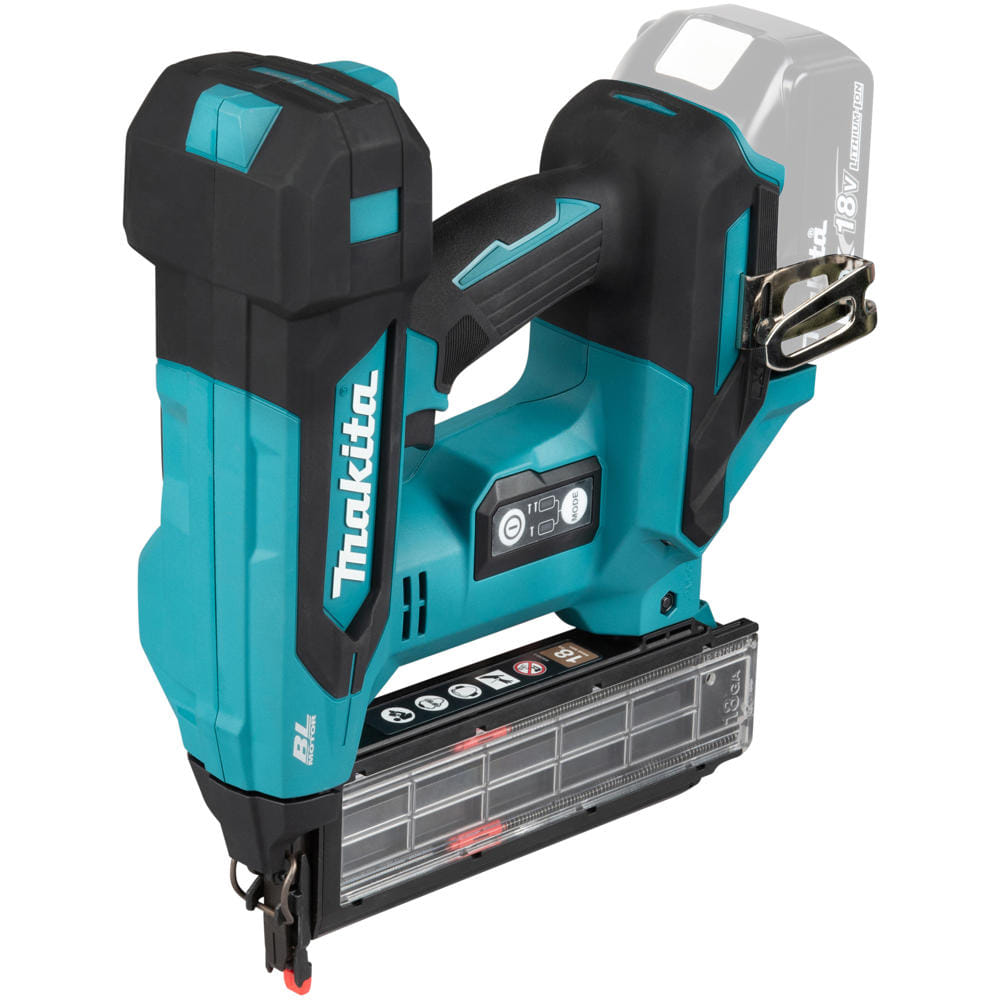

Makita DBN501 18v LXT Cordless Brushless 18 Gauge Brad Nailer
The Makita DBN501 is a cordless 18 gauge brad nailer built for professional second-fix and interior finishing applications, including trim work, skirting boards, architraves and cabinetry.
Powered by Makita's 18v LXT lithium-ion battery platform, the DBN501 uses a pneumatic spring mechanism to deliver a firing action that closely replicates the feel of a traditional air nailer — without the need for a compressor, air hoses or gas cartridges. The brushless motor improves energy efficiency, extends runtime and reduces long-term maintenance requirements, making it well suited to demanding site use.
The slim nose profile aids nail placement accuracy in tight or restricted areas, while tool-less jam clearing helps minimise downtime when fastener jams occur. Adjustable driving depth control allows the user to achieve a consistent nail set across different materials, and the anti-dry fire mechanism prevents the tool from firing on an empty magazine, protecting finished surfaces.
A built-in LED work light improves visibility in darker working conditions, and Makita's eXtreme Protection Technology (XPT) provides enhanced resistance to dust and moisture ingress for reliable performance in challenging environments. The tool accepts 18 gauge brad nails from 15mm to 50mm in length.
Features and Benefits:
• Pneumatic spring mechanism replicates the feel of an air nailer — no compressor or gas required
• Brushless motor for improved efficiency, extended runtime and reduced maintenance
• Compatible with 18 gauge brad nails from 15mm to 50mm
• Adjustable driving depth for consistent nail set across varying materials
• Slim nose profile for improved accuracy in confined or restricted areas
• Tool-less nail jam clearing to minimise downtime on site
• Anti-dry fire mechanism protects work surfaces when magazine is empty
• Built-in LED work light improves visibility in low-light conditions
• XPT technology provides enhanced dust and moisture resistance
• Lightweight and well-balanced design reduces operator fatigue during extended use
• Part of the Makita 18v LXT battery platform for compatibility across tools
Specifications:
Battery Platform: Makita 18v LXT
Battery Type: Lithium-Ion
Fastener Gauge: 18 Gauge
Nail Length Capacity: 15mm - 50mm
Nail Diameter: 1.2mm
Magazine Capacity: 110 Nails
Magazine Angle: 0°
Sound Pressure Level: 82 dB(A)
Sound Power Level: 93 dB(A)
Vibration Level: = 2.5 m/s²
Product Dimensions: 246 x 96 x 301mm
Net Weight: 2.3kg
Weight with Battery: 2.7kg - 3.0kg
Contents:
Makita DBN501 18v LXT Cordless Brushless 18 Gauge Brad Nailer
No Battery
No Charger
Makpac Type 4 Carry Case
2 x Nose Adapters
Belt Hook
Battery AH Explained
The best way to describe battery amp hour is that this is effectively the size of your fuel tank, the more amp hours your battery has then the longer the battery will last between charges. More amp hours does not increase the power of a given tool.
Battery Voltage Explained
A tool with a higher voltage than another is a bit like choosing an engine in a car, the higher voltage will generally mean higher power & performance. As with cars though a bigger engine does not always translate to better performance so it is important to compare the specifications of tools at different voltages between different manufacturers.
