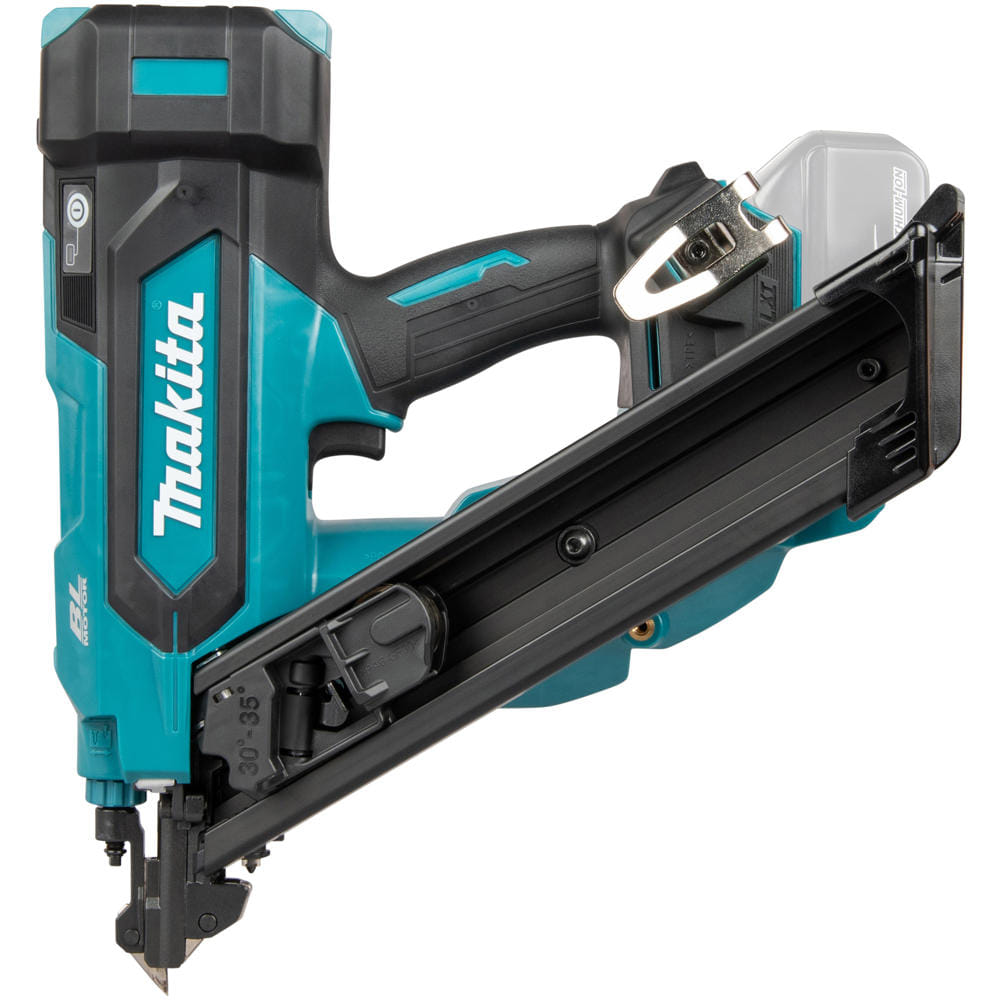

Makita DBN640 18v LXT Cordless Brushless Metal Connector Nailer

The Makita DBN640 18v LXT Cordless Brushless Metal Connector Nailer is a professional fastening tool purpose-built for installing joist hangers, framing brackets, structural fixing plates and metal connector hardware on construction sites.

Powered by the Makita 18v LXT lithium-ion battery platform, the DBN640 uses a pneumatic spring drive system to deliver consistent, reliable nail driving without the need for gas cartridges, compressors or trailing hoses. This makes it a practical and efficient choice for carpenters, structural framers and contractors working across timber frame construction and structural fixing applications.

The slim nose design improves sightlines to the workpiece and aids access in confined or awkward spaces, while the adjustable depth mechanism allows precise control over nail penetration to suit varying materials and fixing requirements. An anti-dry fire mechanism protects both the tool and the workpiece when the magazine is empty, and an integrated LED job light with pre-glow and afterglow functions supports use in poorly lit site conditions.

Built to withstand demanding site environments, the DBN640 incorporates Makita's eXtreme Protection Technology (XPT), offering enhanced resistance to dust and moisture ingress. The tool accepts round-head connector nails from 38mm to 64mm in length, with diameters ranging from 3.3mm to 4.1mm, making it well suited to a wide range of structural connector and metal plate fixing tasks.

Features and Benefits:
• Powered by Makita 18v LXT lithium-ion batteries — compatible with the wider LXT range
• Pneumatic spring drive system delivers consistent fastening without gas cartridges or compressors
• Slim nose design improves workpiece visibility and access in restricted spaces
• Adjustable driving depth for precise nail penetration across different materials
• Anti-dry fire mechanism protects tool and workpiece when magazine is empty
• Integrated LED job light with pre-glow and afterglow for low-light working conditions
• eXtreme Protection Technology (XPT) for improved resistance to dust and moisture
• Accepts round-head connector nails from 38mm to 64mm in length
• Suitable for joist hangers, framing brackets, metal connector plates and structural fixings

Specifications:
Battery Platform: Makita LXT
Battery Voltage: 18v
Battery Chemistry: Lithium-Ion
Nail Head Type: Round Head
Nail Length Capacity: 38 - 64mm
Nail Diameter Capacity: 3.3 - 4.1mm
Fastener Gauge: 3.3 - 4.1
Magazine Capacity: 31 Nails
Magazine Angle: 30° - 35°
Sound Pressure Level: 92 dB(A)
Sound Power Level: 103 dB(A)
Vibration Level: 4.2 m/s²
Product Dimensions: 326 x 185 x 359mm
Net Weight: 4.5kg
Weight with Battery: 4.9 - 5.2kg

Contents:
Makita DBN640 18v LXT Cordless Metal Connector Nailer
Hook Assembly
Hook
4mm Hex Wrench
Plastic Carrying Case
No Battery
No Charger
