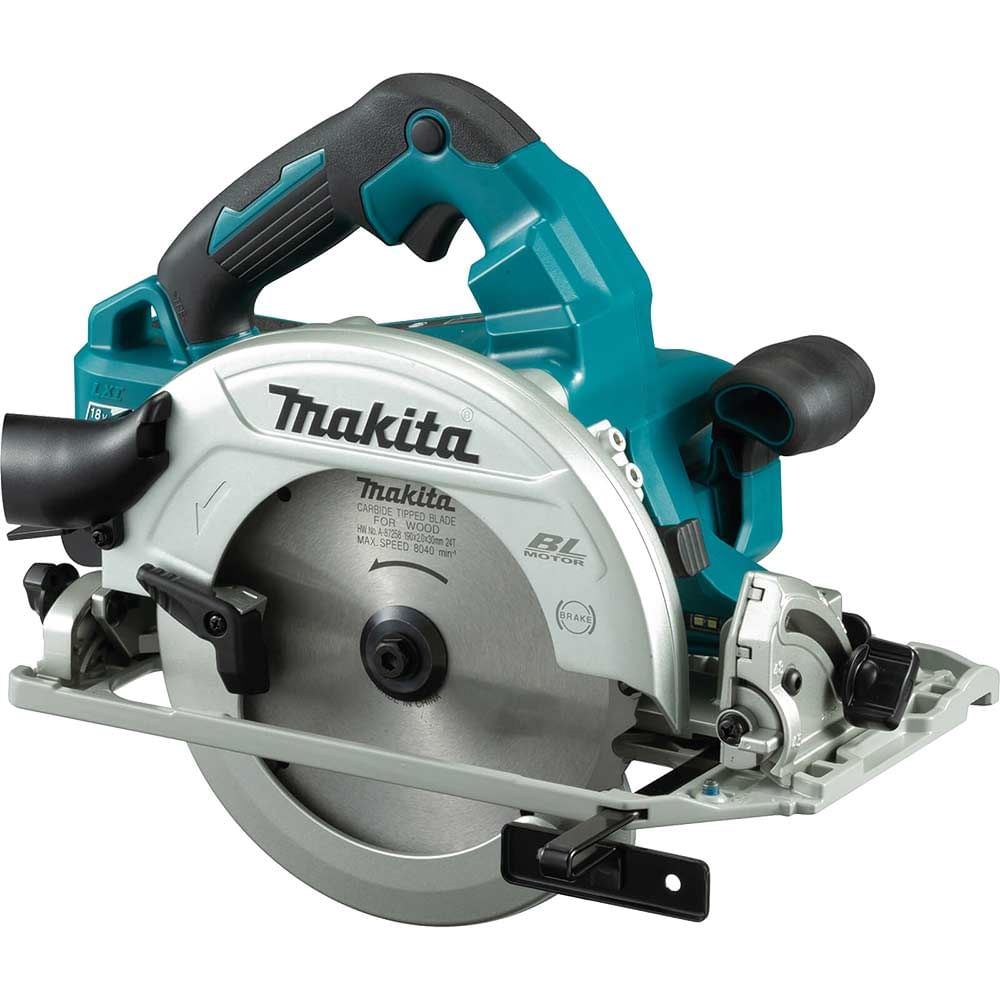

Makita DHS783 Twin 18v LXT Cordless Brushless Circular Saw 190mm
The Makita DHS783 is a professional-grade twin 18V cordless circular saw that delivers 36V power through its brushless motor system, designed for demanding cutting applications in timber construction, joinery and general carpentry work. This 190mm blade model incorporates Automatic Torque Drive Technology, which intelligently adjusts cutting speed based on load conditions to maintain optimal performance comparable to mains-powered tools.
Built around a robust magnesium die-cast base plate, this circular saw provides exceptional precision and durability on site. The base design enhances visibility of the blade tip for improved cutting accuracy, whilst the integrated electric brake and overload warning lamp deliver enhanced operator safety. An LED job light illuminates the cutting line in poorly lit environments, making this saw particularly suitable for first-fix carpentry, roofing applications and renovation work where lighting may be limited.
The DHS783 features Makita's Auto-Start Wireless System (AWS), enabling Bluetooth connectivity with compatible dust extractors that activate automatically when the saw is switched on. This cordless circular saw achieves a maximum cutting depth of 62.5mm at 90 degrees and 44.5mm at 45 degrees, with a positive stop at the 45-degree bevel position for efficient repetitive cuts. Guide rail compatibility without requiring an adaptor makes this tool ideal for sheet material breakdown and precision rip cuts.
Features and Benefits:
• Brushless motor for enhanced efficiency and extended runtime
• Auto-Start Wireless System (AWS) connects to compatible dust extractors via Bluetooth
• Electric brake and soft start for improved safety and control
• LED job light illuminates cutting area in low-light conditions
• Automatic Torque Drive Technology adapts cutting speed to load for consistent performance
• Overload warning lamp alerts operator to potential motor damage
• Compatible with guide rails without requiring an adaptor
• Positive stop at 45° bevel angle for quick repetitive angled cuts
• Enhanced blade tip visibility through optimised base plate design
• Power output comparable to corded AC circular saws
• Magnesium die-cast base plate for durability and precision
Specifications:
Battery Voltage: 36V (18V x2)
Battery Type: Lithium-ion
Blade Diameter: 190mm
Bore: 20/30mm
Max. Cut @ 0°: 62.5mm
Max. Cut @ 45°: 44.5mm
Max. Cut @ 48°: 42mm
No Load Speed: 6,000rpm
Noise K Factor: 3dB(A)
Noise Sound Power: 104dB(A)
Noise Sound Pressure: 93dB(A)
Vibration Cutting Wood: 2.5m/sec²
Vibration K Factor: 1.5m/sec²
Net Weight: 4.5-5.1kg
Contents:
DHS783 Twin 18V LXT Cordless Brushless Circular Saw
No Batteries
No Charger
Makita MakPac Type 4 Connector Case
TCT Saw Blade
Dust Nozzle
Hex Wrench
Guide Rule
Wireless Unit
Battery AH Explained
The best way to describe battery amp hour is that this is effectively the size of your fuel tank, the more amp hours your battery has then the longer the battery will last between charges. More amp hours does not increase the power of a given tool.
Battery Voltage Explained
A tool with a higher voltage than another is a bit like choosing an engine in a car, the higher voltage will generally mean higher power & performance. As with cars though a bigger engine does not always translate to better performance so it is important to compare the specifications of tools at different voltages between different manufacturers.
