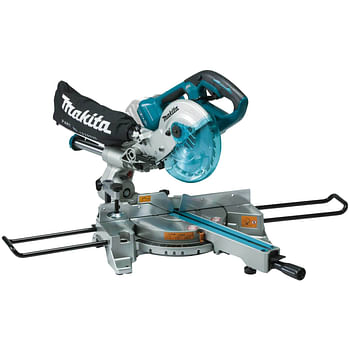

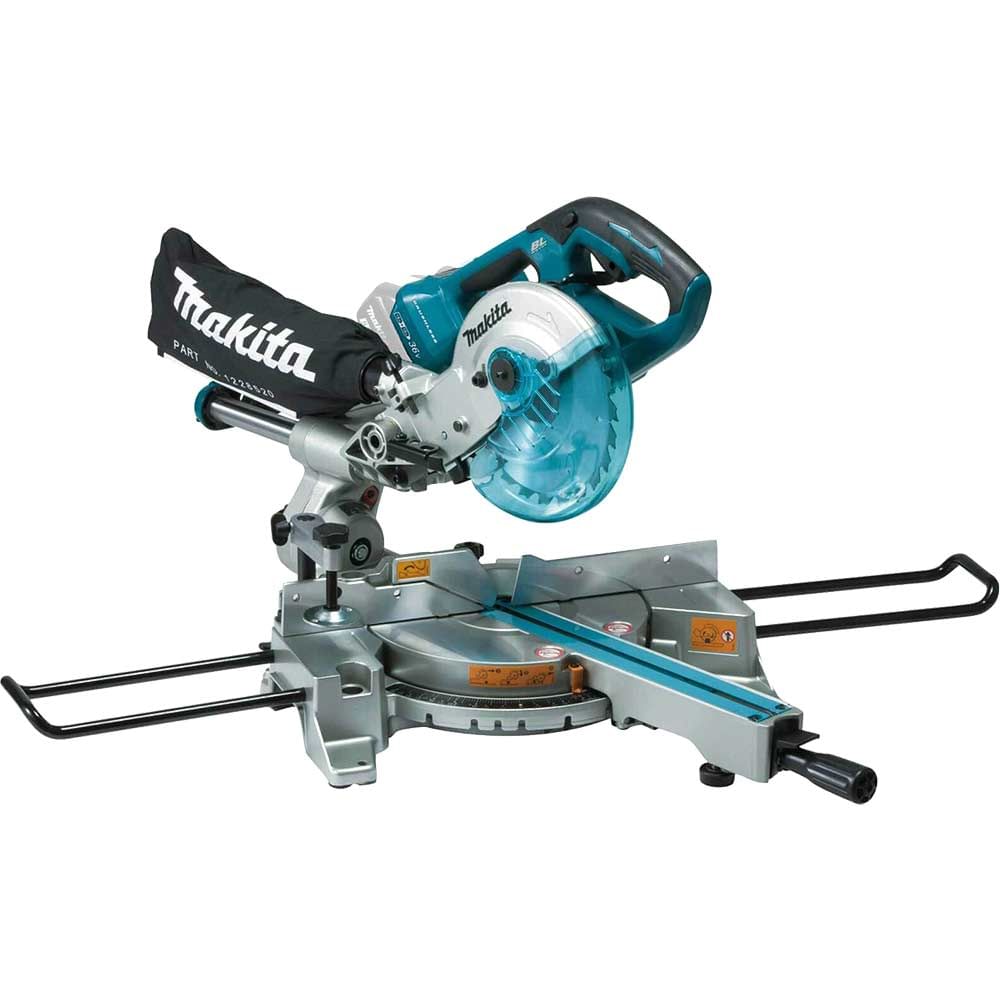

Makita DLS714N Twin 18v LXT Cordless Brushless Mitre Saw 190mm
The Makita DLS714N is a professional cordless sliding compound mitre saw powered by Makita's innovative twin 18V LXT battery system, delivering the performance of a corded 36V tool with the freedom of battery operation. This 190mm sliding mitre saw combines a brushless motor with advanced features to deliver mains-equivalent cutting power without the constraints of cables or access to power supplies.
Powered by two 18V LXT batteries running in series, the DLS714N integrates seamlessly with Makita's extensive LXT platform, making it an ideal choice for contractors already invested in the system. The brushless motor technology ensures efficient power delivery whilst reducing maintenance requirements, and the soft start function provides smooth operation with reduced kickback. An electric brake stops the blade quickly for enhanced safety between cuts.
The double sliding mechanism provides excellent stability and precision, with a maximum cutting capacity of 52 x 300mm making it suitable for trim work, framing, and general carpentry applications. The LED indicator panel keeps you informed of remaining battery charge and automatic speed control status, whilst the ergonomic handle features an anti-slip elastomer surface for secure control during operation. This bare unit is supplied with material supports, clamp, dust bag and blade, making it ready for immediate deployment on site.
Features and Benefits:
• Twin 18V battery system delivers 36V power with full LXT compatibility across the Makita range
• Brushless motor technology for efficient, maintenance-free operation
• Double sliding mechanism ensures stable, accurate cuts
• Soft start function reduces motor stress and improves control
• LED indicator panel displays battery status and automatic speed control
• Electric brake for rapid blade stopping and enhanced safety
• Anti-slip elastomer handle provides comfortable, secure grip
• 300mm cutting capacity in a single pass for wide material
• Cordless operation eliminates cable management on site
Specifications:
Battery Voltage: 36V (2 x 18V)
Battery Type: Makita LXT Lithium Ion
Blade Diameter: 190mm
Bore Diameter: 20mm
Machine Type: Sliding Compound Mitre Saw
No Load Speed: 5700 RPM
Max Bevel Range: 45 - 5°
Max Mitre Range: 47 - 57°
Max Cutting Capacity: 52 x 300mm
Noise Sound Pressure: 88 dB(A)
Noise Sound Power: 97 dB(A)
Noise K Factor: 3 dB(A)
Net Weight: 13.0 - 13.5kg
Contents:
DLS714NZ Cordless Mitre Saw 190mm (bare tool)
Material Supports (x2)
Clamp
Dust Bag
Blade
No Batteries
No Charger
No Case
Battery AH Explained
The best way to describe battery amp hour is that this is effectively the size of your fuel tank, the more amp hours your battery has then the longer the battery will last between charges. More amp hours does not increase the power of a given tool.
Battery Voltage Explained
A tool with a higher voltage than another is a bit like choosing an engine in a car, the higher voltage will generally mean higher power & performance. As with cars though a bigger engine does not always translate to better performance so it is important to compare the specifications of tools at different voltages between different manufacturers.
