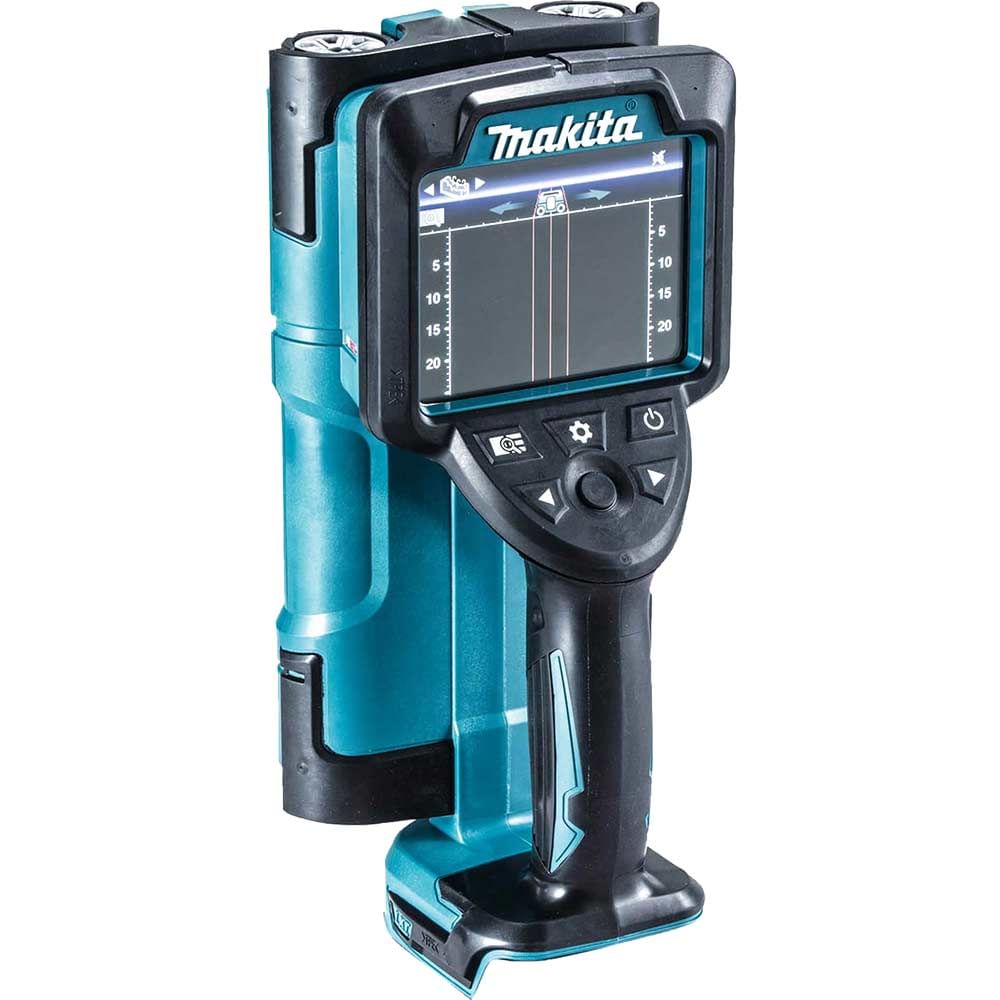

Makita DWD181 18v LXT Cordless Wall Scanner

The Makita DWD181 is a professional cordless wall scanner designed for accurate detection of hidden materials behind walls and in concrete. Compatible with any Makita 14.4V or 18V LXT lithium-ion battery, this advanced scanning tool features a large 4.1-inch full-colour display that provides detailed visual feedback when locating metal objects, plastic pipes, wood studs and live electrical cables. The integrated laser guide emits a vertical line to indicate the exact centre of the sensor, ensuring precise marking of detected objects with an accuracy of +/- 5mm.

Built for demanding site conditions, the DWD181 offers multiple scene modes including settings for dry concrete, wet concrete, partition walls and a radar view mode, allowing tradespeople to adapt to different materials and moisture conditions. The unit alerts operators both visually on screen and with an audible signal when objects are detected. With an impressive maximum detection depth of 180mm for metal in concrete and 120mm for plastic pipes, this scanner is ideal for electricians, plumbers and general contractors carrying out first fix work, installation projects or renovation tasks where avoiding buried services is critical.

The IP54-rated housing provides protection against dust and water ingress, making it suitable for use in challenging construction environments. An integrated LED worklight improves visibility when working in poorly lit areas, whilst the multi-detection mode can display up to three detection results simultaneously on a split screen. With a runtime of up to 28 hours using an 18V 6.0Ah battery, the DWD181 delivers professional performance throughout the working day.

Features and Benefits:
• Professional cordless wall scanner powered by any Makita 14.4V or 18V LXT lithium-ion battery
• Large 4.1-inch full-colour display indicates object position, depth and detection status
• High detection accuracy with +/- 5mm precision for both object centre position and depth
• Multi-detection mode displays up to 3 detection results on split screen simultaneously
• Laser guide emits vertical lines to indicate sensor centre and scan axis for precise marking
• Scene mode selection adapts to different materials: dry concrete, wet concrete, partition walls or radar view
• Visual and acoustic alerts confirm presence of detected objects
• IP54 dust and drip-proof design for reliable performance on site
• Integrated LED worklight for improved visibility in dark environments
• Maximum detection depth of 180mm for metal in concrete and 120mm for plastic pipes
• Extended runtime of up to 28 hours with 18V 6.0Ah battery

Specifications:
Battery Voltage: 14.4V / 18V
Battery Type: Makita Lithium-Ion
Max Runtime with 18V 6.0Ah Battery: 28 hours
Max Detection Depth - Metal in Concrete: 180mm
Max Detection Depth - Plastic Pipe in Concrete (water filled/empty): 120mm
Max Detection Depth - Wood Stud behind Drywall: 25mm
Detection Accuracy of Object Centre Position: +/- 5mm
Detection Accuracy of Object Depth: +/- 5mm
Detectable Minimum Distance Between Two Adjacent Objects: 40mm
Machine Weight: 1.0kg - 1.7kg (depending on battery)
Display Size: 4.1 inch
Protection Rating: IP54

Contents:
Makita DWD181ZJ Cordless Wall Scanner (bare tool)
Makpac Connector Case
No Battery
No Charger
