Makita Guide Rail Connector Set

The Makita Guide Rail Connector Set is a guide rail accessory designed to join two guide rails together, enabling longer cuts with consistent precision.

When working on larger sheet materials or long rip cuts, a single guide rail may not be sufficient. This connector set allows you to extend your effective cutting length by joining compatible Makita guide rails end-to-end, maintaining the straight, accurate guidance your saw requires throughout the full length of the cut.

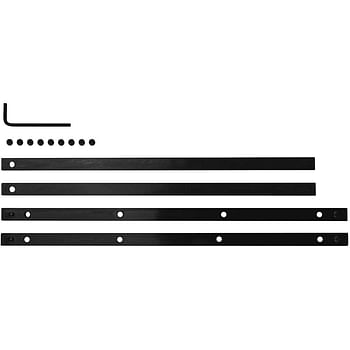

The set includes two guide rail connectors and two auxiliary bars, which are used together to create a secure, stable join between rails. Installation is straightforward, with a hex wrench and eight hex screws included in the set, so no additional tools are required to get set up on site.

Features and Benefits:
• Joins two Makita guide rails to extend cutting length on larger workpieces
• Compatible with 199140-0 1m, 194368-5 1.4m and 199141-8 1.5m guide rails
• For use with SP6000, DSP600 and HS6601 saws
• Auxiliary bars and connectors used together for a secure, stable join
• Includes hex wrench and hex screws — no additional tools required
• Durable steel construction for long-term site use

Specifications:
Part No: P-20177
Weight: 370g
