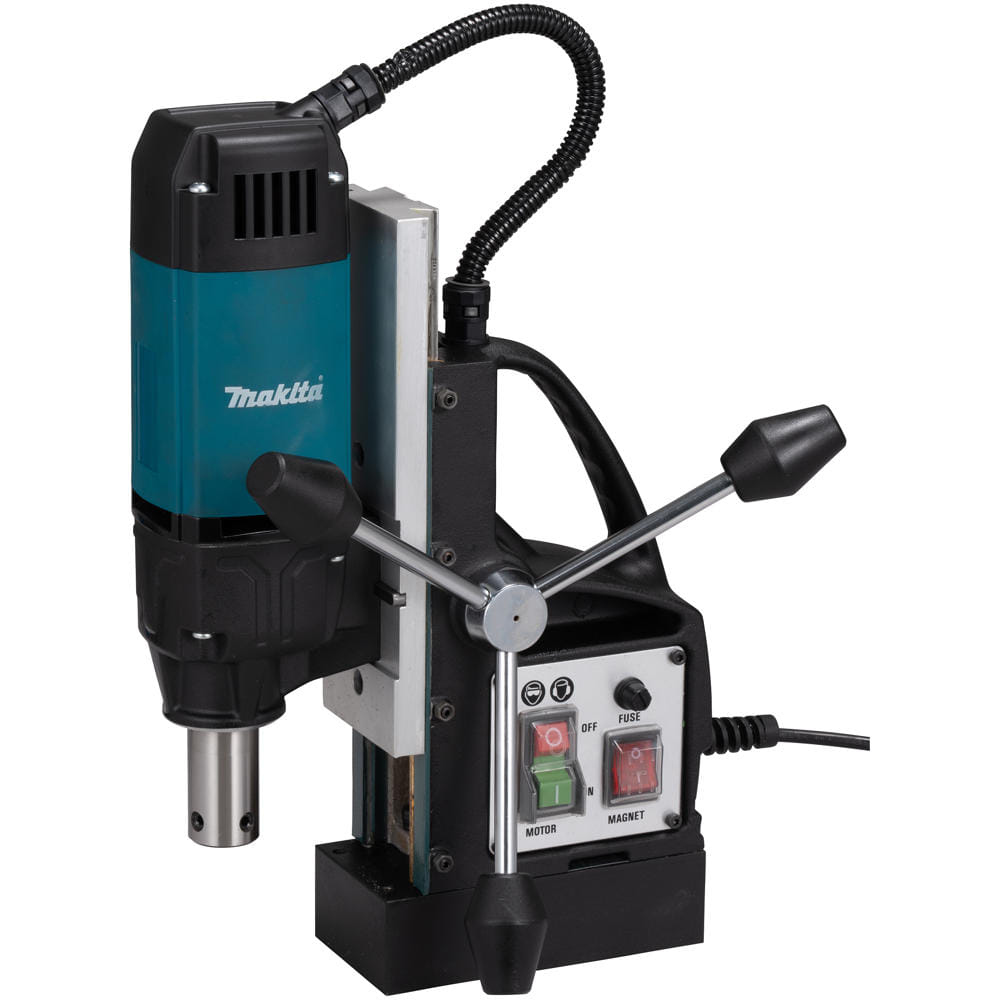

Makita HB351 Magnetic Drilling Machine

The Makita HB351 is a magnetic drilling machine designed for precision core drilling in steel, with a maximum drilling diameter of 35mm in steel plate and structural steelwork.

The powerful magnetic base delivers a maximum pulling force of 11,000N, providing a stable, secure platform during drilling operations — particularly valuable when working on vertical surfaces or overhead steelwork where a secure hold is critical. The integrated oil supply system ensures smooth, consistent cutting performance and extends the life of annular cutters.

The HB351 is supplied as a complete package, with the magnetic base, drill stand, and drill head combined as a single integrated unit. This all-in-one system simplifies set-up on site and is well suited to steel fabrication, structural steelwork, and general metalworking applications. The 110V version includes a carry case, making it a practical choice for contractors working from site to site.

Features and Benefits:
• 11,000N magnetic base pulling force for a secure hold on steel surfaces
• Integrated oil supply system for smooth drilling and extended cutter life
• All-in-one package — magnetic base, drill stand, and machine included
• 168mm stroke length and 50mm drilling depth for versatile application
• 110V version includes carry case for easy site transportation

Specifications:
No Load Speed: 790 min?¹
Max. Drilling Diameter in Steel: 35mm
Weight Without Cable: 10.5kg
Dimensions (L x W x H): 263 x 156 x 323mm
Max. Pulling Force: 11,000N
Length of Stroke: 168mm
Base Dimensions: 160 x 80mm
Drilling Depth: 50mm
