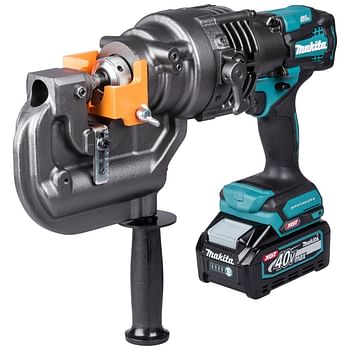

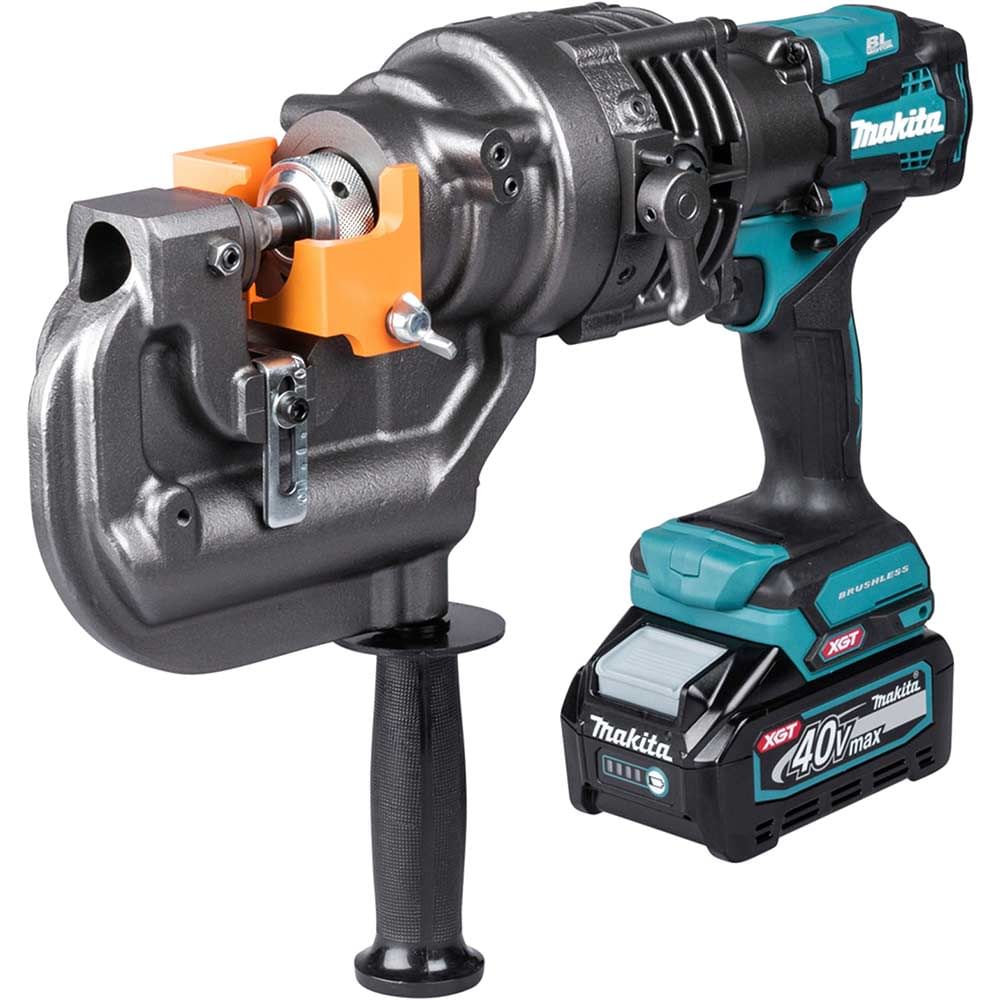

Makita PP001G 40v Max XGT Cordless Brushless Steel Hole Punch
The Makita PP001G is a cordless steel hole punch designed for professional metalworking applications in fabrication and construction. Powered by Makita's advanced 40V Max XGT Li-Ion battery platform, this tool delivers exceptional punching performance with a maximum capacity of ø20mm in 9mm mild steel for round holes, and ø19mm in 10mm material for specialist applications.
The brushless motor technology enhances operational efficiency, reducing working time by 35% compared to conventional models whilst improving punching speed for faster task completion. With a 40mm throat depth, the tool handles both round and oblong hole shapes, making it versatile for electrical contractors, steel fabricators and HVAC installers working with cable gland installations, panel mounting or ductwork fabrication.
The tool's low vibration level of =2.5 m/s² and relatively quiet operation at 77 dB(A) contribute to reduced operator fatigue during extended use. Supplied in a protective plastic case, the unit weighs between 11.6-11.96kg with battery fitted. Please note this is a body-only unit with no battery or charger included.
Features and Benefits:
• 40V Max XGT Li-Ion battery platform delivers improved punching speed
• Brushless motor reduces working time by 35% for enhanced productivity
• Maximum punching capacity of ø20mm (t=9mm) for round holes in mild steel
• 40mm throat depth accommodates various workpiece sizes
• Handles both round and oblong hole shapes for versatile applications
• Low vibration level of =2.5 m/s² reduces operator fatigue
Specifications:
Nominal Battery Voltage: 40v
Battery Chemistry: Li-ion
Max. Throat Depth: 40 mm
Hole Shape: Round / Oblong
Max. Hole Size (stainless steel): Ø20 / t6 mm
Max. Hole Size (mild steel): Ø20 / t9 mm
Sound Pressure Level (LpA): 77 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Vibration Level (3 axes): = 2,5 m/s²
Vibration Uncertainty (K Factor): 1,5 m/s²
Tool weight with battery: 11,6 - 11,96 kg
Contents:
PP001G 40v Max XGT Cordless Brushless Steel Hole Punch
No Battery
No Charger
Plastic Case
Battery AH Explained
The best way to describe battery amp hour is that this is effectively the size of your fuel tank, the more amp hours your battery has then the longer the battery will last between charges. More amp hours does not increase the power of a given tool.
Battery Voltage Explained
A tool with a higher voltage than another is a bit like choosing an engine in a car, the higher voltage will generally mean higher power & performance. As with cars though a bigger engine does not always translate to better performance so it is important to compare the specifications of tools at different voltages between different manufacturers.
