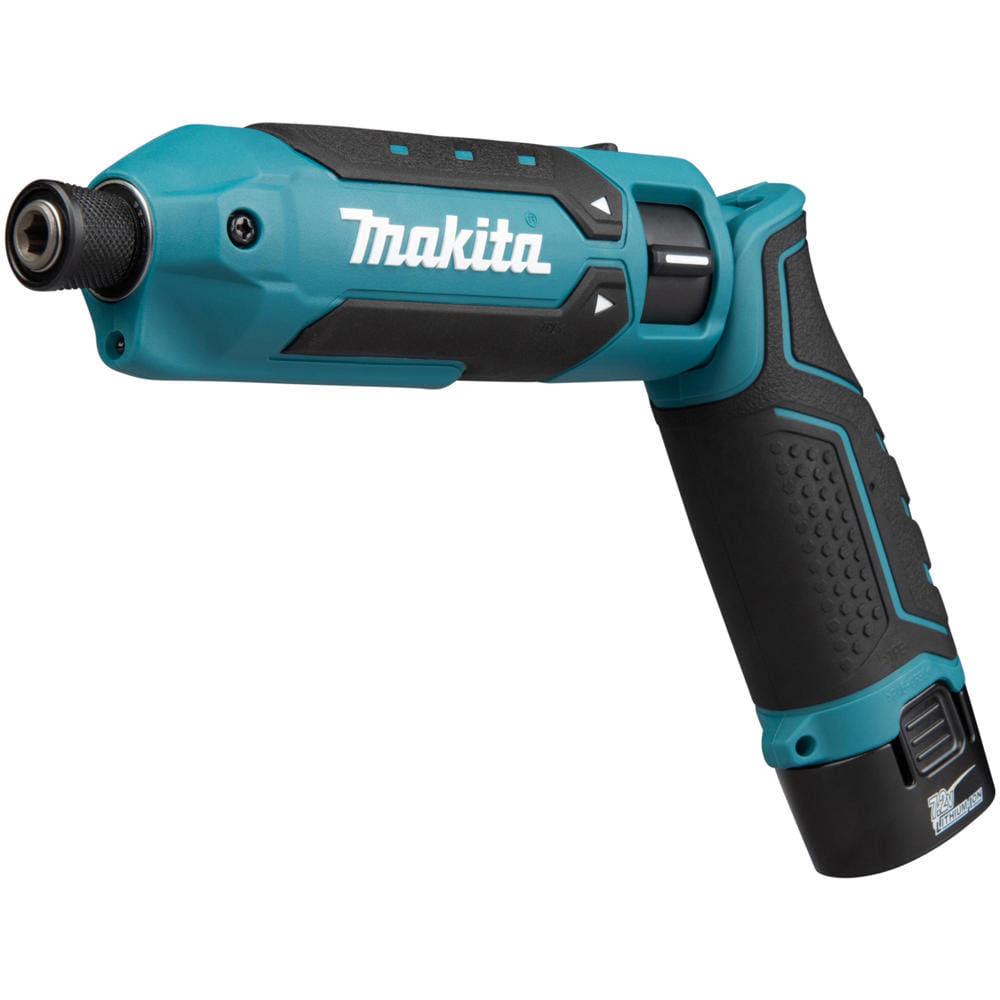

Makita TD023D 7.2v Cordless Pencil Impact Driver

The Makita TD023D is a compact 7.2v cordless pencil impact driver designed for driving screws and fasteners in confined spaces and overhead applications.

Its standout feature is the adjustable handle, which allows the tool to switch between a straight pencil grip and a pistol grip position. This versatility makes it particularly useful for electricians, carpenters, and other contractors working in tight areas where a standard driver simply won't fit.

The TD023D delivers up to 25Nm of fastening torque with a no-load speed of 0–2,450 RPM and up to 3,000 impacts per minute, giving tradespeople confident performance across bolt sizes from M3 to M8. The 1/4" hex quick-change bit holder allows for fast bit swaps on site.

A built-in LED worklight illuminates the work area, while an electric brake ensures precise control when stopping. The rubber-coated handle provides a secure, comfortable grip during extended use, and the tool's lightweight design — just 0.57kg with battery — helps reduce fatigue during repetitive or overhead tasks.

Features and Benefits:
• Adjustable handle for straight (pencil) and pistol grip positions
• Compact dimensions ideal for tight spaces and overhead applications
• 25Nm maximum fastening torque with variable speed control
• 1/4" hex one-touch bit holder for quick bit changes
• Integrated LED worklight to illuminate the work area
• Electric brake for precise control and improved operator safety
• Rubber-coated handle for secure, comfortable grip
• Lightweight at 0.57kg with battery to reduce operator fatigue
• Supplied with battery, charger, carry case, and double-ended PH2 bit

Specifications:
Nominal Battery Voltage: 7.2V
Battery Chemistry: Li-ion
No Load Speed: 0–2,450 RPM
Impacts Per Minute: 0–3,000
Max Fastening Torque: 25Nm
Tightening Capacity (Standard Bolt): M3–M8
Tightening Capacity (High Tensile Bolt): M3–M6
Driving Shank: 1/4"
Sound Power Level (LWA): 95 dB(A)
Sound Pressure Level (LpA): 87 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Vibration Level (Impact Tightening): 6.2 m/s²
Vibration Uncertainty (K Factor): 1.5 m/s²
Product Dimensions (L x W x H): 285 x 42 x 52mm
Folded Dimensions (L x W x H): 229 x 42 x 142mm
Net Weight (without battery): 0.46kg
Weight with Battery: 0.57–0.58kg
