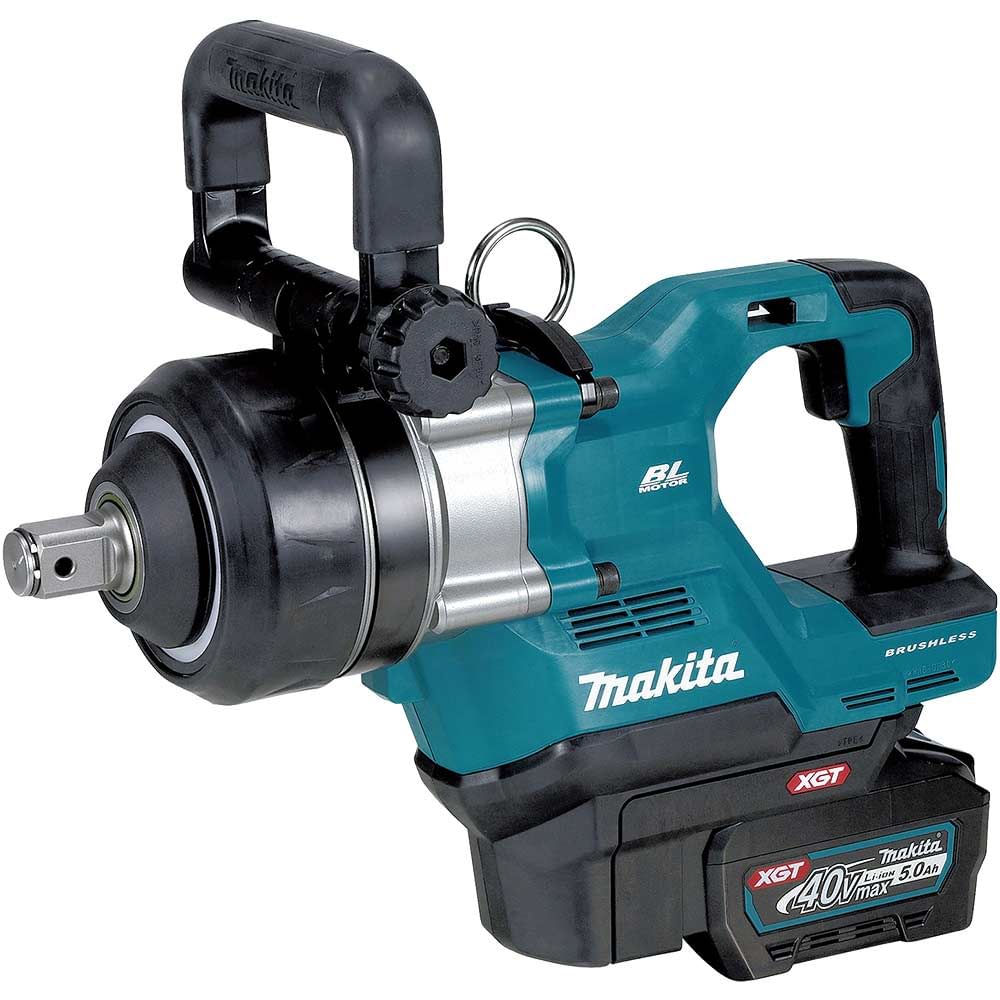

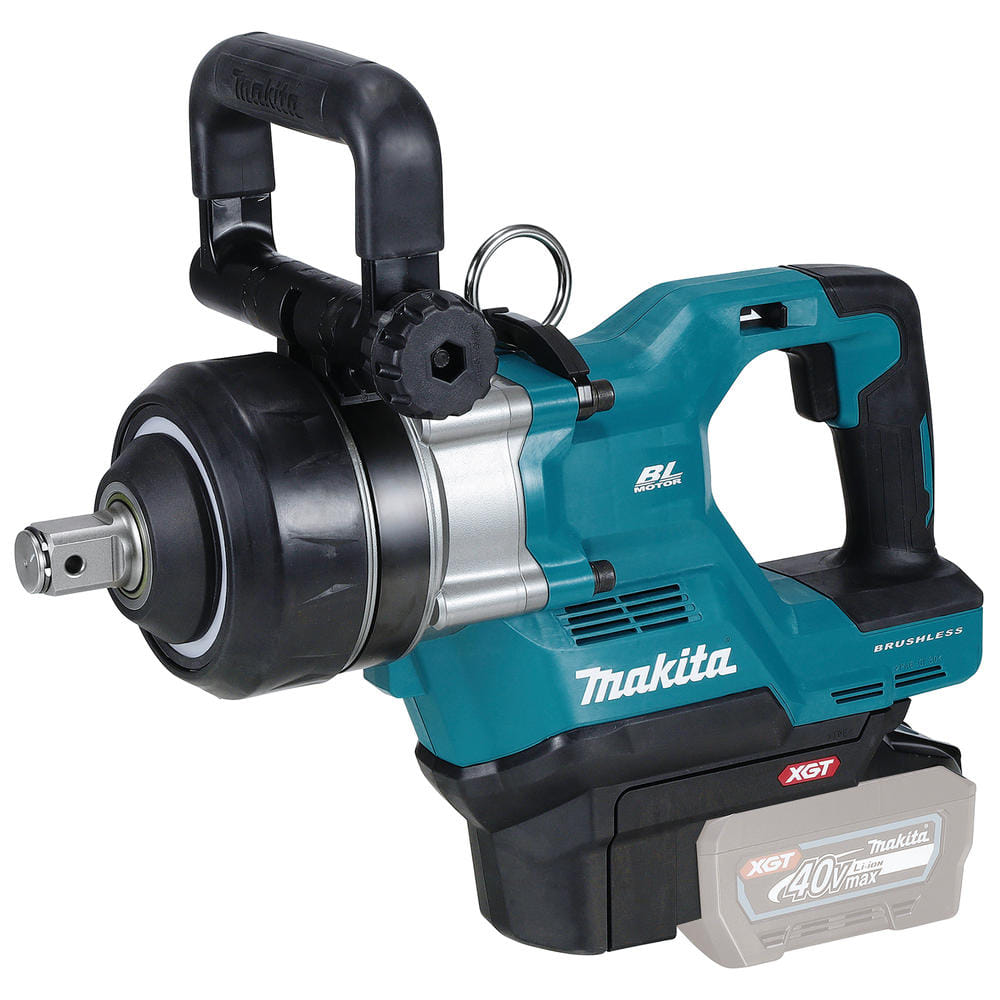

Makita TW009G 40v Max XGT Cordless Brushless Impact Wrench
The Makita TW009G is a heavy-duty cordless impact wrench delivering exceptional power for demanding industrial applications. Featuring a 1-inch short anvil with 25.4mm C-ring, this professional-grade tool is engineered for steel frame construction, structural assemblies, and high-torque fastening tasks where reliability is critical.
Powered by Makita's advanced 40V Max XGT battery platform, the TW009G combines a brushless motor with electronic impact control for precise torque management. With a maximum fastening torque of 3150 Nm and an impressive 4000 Nm nut-busting torque, this impact wrench handles standard bolts from M27 to M45, and high-tensile bolts from M20 to M33.
The four-stage electronic power selection allows operators to match torque output to specific applications, whilst the auto-stop system in both forward and reverse modes prevents over-tightening. A full-speed mode button provides maximum performance when required, and the ring illumination LED ensures visibility in low-light working conditions. The tool hanger ring enables convenient positioning on pipes and framework during steel erection work.
Features and Benefits:
• Tool hanger ring allows hands-free positioning on pipes, hooks and framework
• Ring illumination LED provides enhanced visibility in poorly lit environments
• Toolless installation of side handle for quick setup and configuration
• Auto-stop system available in both forward and reverse rotation modes prevents over-tightening
• Electronic 4-stage impact power selection for precise torque control
• Full speed mode button delivers maximum performance when needed
Specifications:
Nominal Battery Voltage: 40V
No load speed: 0 - 600 / 700 / 850 / 1200 min?¹
Max Fastening Torque Impact Drill: 600 / 1000 / 1600 / 3150 Nm
Nut-busting torque: 4000 Nm
Tightening Capacity Standard Bolt: M27 - M45
Tightening Capacity High Tensile Bolt: M20 - M33
Impacts per Minute (IPM): 0 - 1200 / 1300 / 1500 / 1750 min?¹
Drive Square: 1"
Sound Power Level (LWA): 111 dB(A)
Sound Pressure Level (LpA): 103 dB(A)
Noise Uncertainty (K Factor): 3 dB(A)
Tool weight with battery: 11.8 - 12.8 kg
Max Output Power: 1900 W
Contents:
TW009G 40V Max XGT Cordless Brushless Impact Wrench
No Battery
No Charger
Plastic Carry Case
Battery AH Explained
The best way to describe battery amp hour is that this is effectively the size of your fuel tank, the more amp hours your battery has then the longer the battery will last between charges. More amp hours does not increase the power of a given tool.
Battery Voltage Explained
A tool with a higher voltage than another is a bit like choosing an engine in a car, the higher voltage will generally mean higher power & performance. As with cars though a bigger engine does not always translate to better performance so it is important to compare the specifications of tools at different voltages between different manufacturers.
