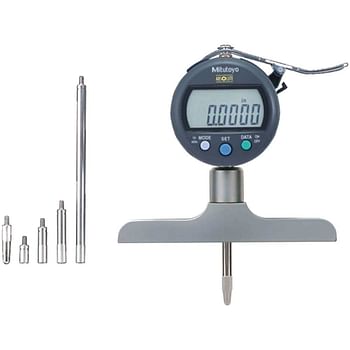

Mitutoyo 547-218S Absolute Digimatic Depth Gauge

This Mitutoyo depth gauge uses stackable extension rods and a 0.5”-stroke indicator to cover a wide measuring range, with a lifting lever for rapid operation. The 4” base is made from tool steel, hardened and ground with a micro-lapped reference surface.

Specifications
• Accuracy: ± 0,001"
• Base flatness: 0.0002"
• Mass: 340 g
• Scale: Capacitance type ABSOLUTE linear encoder
• Stroke: 12.7 mm
• Contact point: Carbide ball
• Alarm: Low voltage, counting value composition error, overflow error, tolerance limit setting error
• Measuring force: = 1.5 N
• Power supply: 1 SR-44 battery
• Battery life: approx. 7000 hours
• GO/±NG judgement: Yes
• Digimatic data output: Yes
• Lock function: Yes
• ZERO/ABS: Yes
• PRESET: Yes
• DATA(output with cable)/HOLD(display value): Yes
• Calculation function: Yes
• Counting direction switchable: Yes
• Inch-Metric: Inch/Metric

Features and Benefits
• Equipped with the ABSOLUTE Digimatic Indicator ID-C
• Hardened, precision ground and micro-lapped reference face on the base
• Includes storage case and extension kit

Contents
• 547-218S Absolute Digimatic Depth Gauge
• 10mm Extension
• 20mm Extension
• 30mm Extension (x2)
• 100mm Extension
• Storage Case
