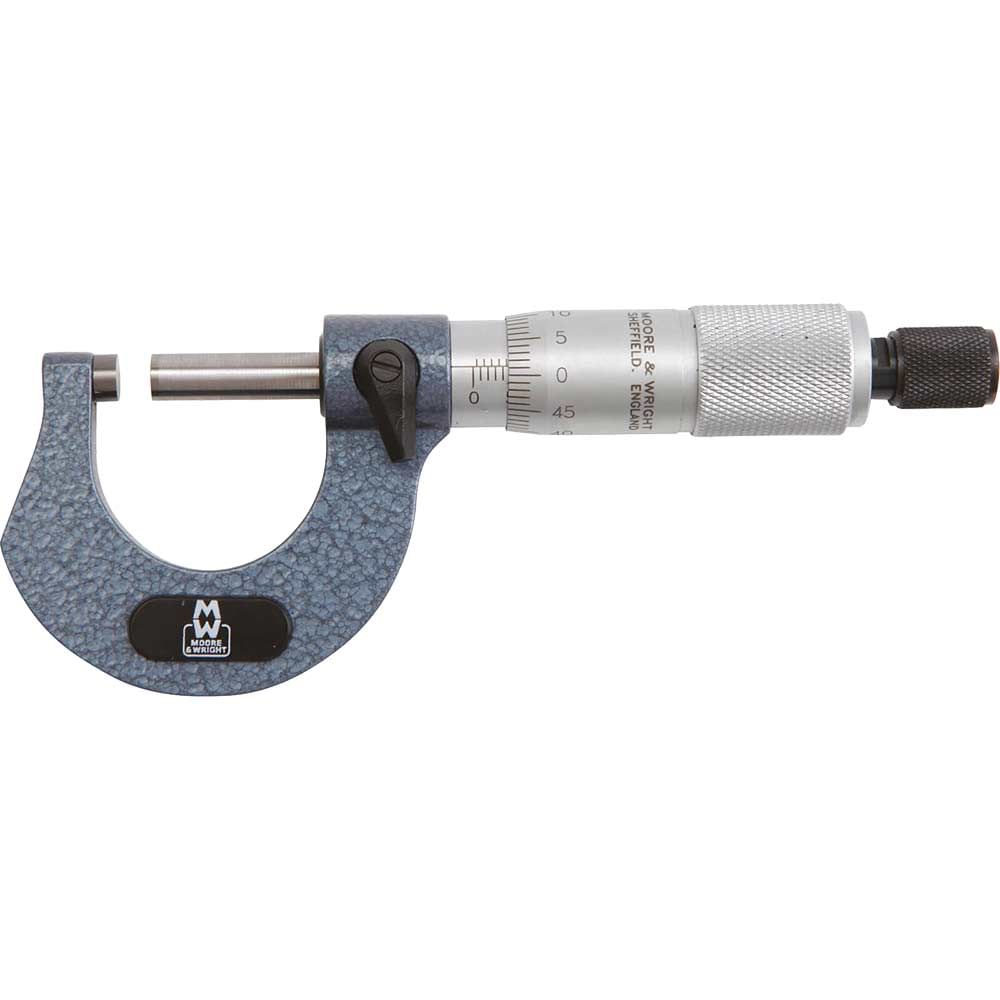

Moore and Wright 1965M Traditional External Micrometer

The Moore & Wright 1965M Traditional External Micrometer is a precision measuring instrument designed for accurate external measurements up to 25mm. Featuring a robust blue textured frame with tungsten carbide measuring faces, this micrometer delivers reliable performance for engineering, machining and quality control applications. The tapered bow frame design provides excellent access to workpieces whilst maintaining structural rigidity.

Built to exacting standards, this micrometer conforms to BS870, DIN 863/1 and ISO 361 specifications, ensuring traceability and accuracy for professional workshop environments. The 6.5mm spindle diameter offers durability, whilst the tungsten carbide measuring faces resist wear even with frequent use. A 'speeder' type ratchet allows rapid spindle movement, whilst the ratchet stop ensures consistent measuring pressure to prevent over-tightening.

The integrated locking lever secures measurements for accurate reading, and the adjusting key enables precise calibration when required. This combination of features makes the 1965M ideal for engineers, toolmakers and machinists who require dependable dimensional measurement. The micrometer is supplied in a protective plastic pocket case for convenient storage and transport between jobs.

Features and Benefits:
• Tungsten carbide measuring faces for extended wear resistance
• Speeder ratchet for quick spindle positioning
• Locking lever to secure measurements during reading
• Manufactured to BS870, DIN 863/1 and ISO 361 standards
• Supplied with plastic pocket case for protection

Specifications:
Micrometer Type: External
Metric/Imperial: Metric
Min. Measurement (mm): 0
Max. Measurement (mm): 25
Graduation (mm): 0.01
Micrometer Range: 0-25mm
Measuring Faces: Flatness: 0.001mm, Parallelism: 0.003mm, Accuracy: 0.003mm
Resolution: 0.001mm
