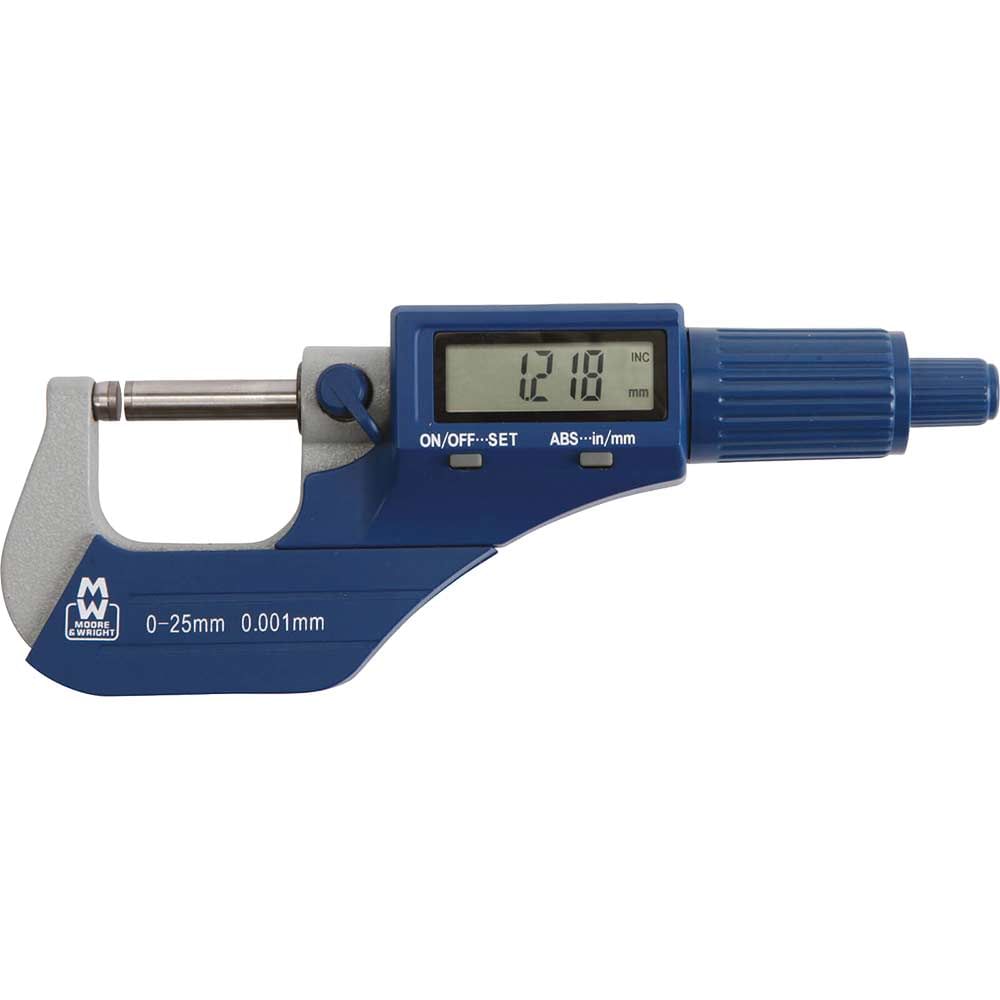

Moore and Wright MW200-01DBL Digital External Micrometer

The Moore & Wright MW200-01DBL Digital External Micrometer is a precision measuring instrument designed for accurate dimensional measurement in engineering and manufacturing environments. This 0-25mm (0-1in) digital micrometer combines traditional craftsmanship with modern electronic measurement technology, making it ideal for toolmakers, machinists and quality control professionals who require reliable, repeatable measurements.

The tapered frame design provides easier access to restricted areas and difficult-to-reach components, whilst the hammertone finished frame features a high quality insulated grip for comfortable handling during extended measuring sessions. Tungsten carbide measuring faces ensure long-term durability and accuracy, even with frequent use on hardened materials. The constant force ratchet on the thimble guarantees consistent measuring pressure for repeatable results.

The large LCD display offers versatile measurement options with four display modes including mm/inch conversion and Absolute/Incremental reading functions. A convenient zero setting feature allows for quick differential measurements. Manufactured to DIN 863 standards, this micrometer delivers 0.001mm resolution in metric mode and 0.00005in resolution in imperial mode, providing the precision required for demanding measurement applications.

Features and Benefits:
• Tapered design for improved access to difficult measuring areas
• Tungsten carbide measuring faces for extended wear resistance
• Constant force ratchet ensures consistent measuring pressure
• Large LCD with mm/inch conversion and multiple display modes
• Insulated grip for comfortable handling and thermal stability
• Manufactured to DIN 863 standards for guaranteed accuracy

Specifications:
Micrometer Type: External
Metric/Imperial: Metric & Imperial
Min. Measurement (mm): 0
Max. Measurement (mm): 25
Min Measurement (in): 0
Max. Measurement (in): 1
Graduation (mm): 0.001
Graduation (in): 0.00005
Range: 0-25mm/0-1in.
Resolution: 0.001mm/.00005in.
