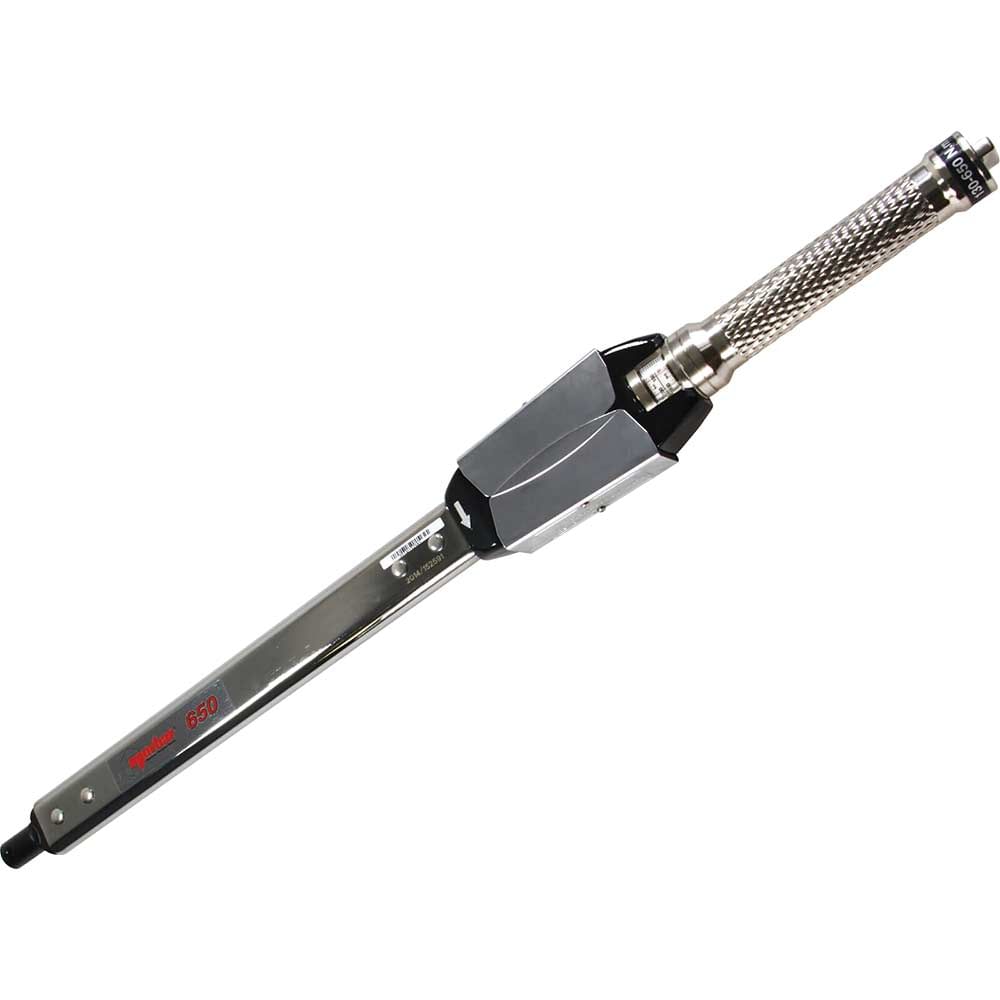

Norbar Pro 650 22mm Spigot Torque Handle

The Norbar Pro 650 22mm Spigot Torque Handle is a professional-grade torque wrench designed for high-capacity bolting applications requiring precise torque control. This spigot-drive model delivers the same exceptional quality and accuracy that defines the Norbar Professional range, making it ideal for heavy-duty industrial maintenance, construction, and mechanical assembly work.

Featuring a positive 'click' mechanism that can be heard, seen and felt, this torque handle helps prevent over-torquing and ensures consistent, accurate results on every fastening application. The long scale length displays measurements in both Nm and lbf·ft, allowing error-free setting and quick adjustment between different torque specifications. The non length-dependent handle design means accuracy is maintained regardless of hand position during use.

With an operating range of 130.0-650.0Nm (100.0-480.0 lbf·ft) and ±3% accuracy, this torque handle is suitable for demanding applications on heavy plant equipment, structural steelwork, and large mechanical assemblies. The substantial 821mm length and 744mm torque radius provide the leverage required for high-torque applications whilst maintaining precision control.

Supplied with a Calibration Certificate that meets the requirements of ISO 6789-2:2017, ensuring full traceability and compliance with professional quality standards.

Features and Benefits:
• Positive 'click' mechanism provides clear audio, visual and tactile feedback
• Non length-dependent handle maintains accuracy regardless of hand position
• Dual-scale display in Nm and lbf·ft for versatile working
• ISO 6789-2:2017 compliant calibration certificate included
• 22mm spigot drive compatible with interchangeable heads and extensions

Specifications:
Wrench Type: 22mm Spigot Wrench
Min. Capacity (Nm): 130
Max. Capacity (Nm): 650
Accuracy: ±3%
Operates Between: 100.0-480.0 lbf·ft/130.0-650.0Nm
Length: 821mm
Torque Radius: 744mm
Weight: 3.6kg
