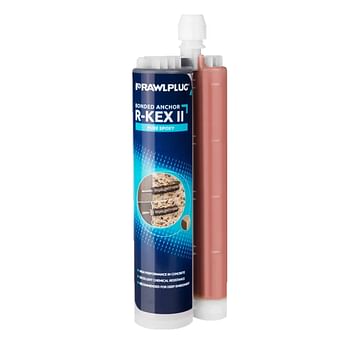

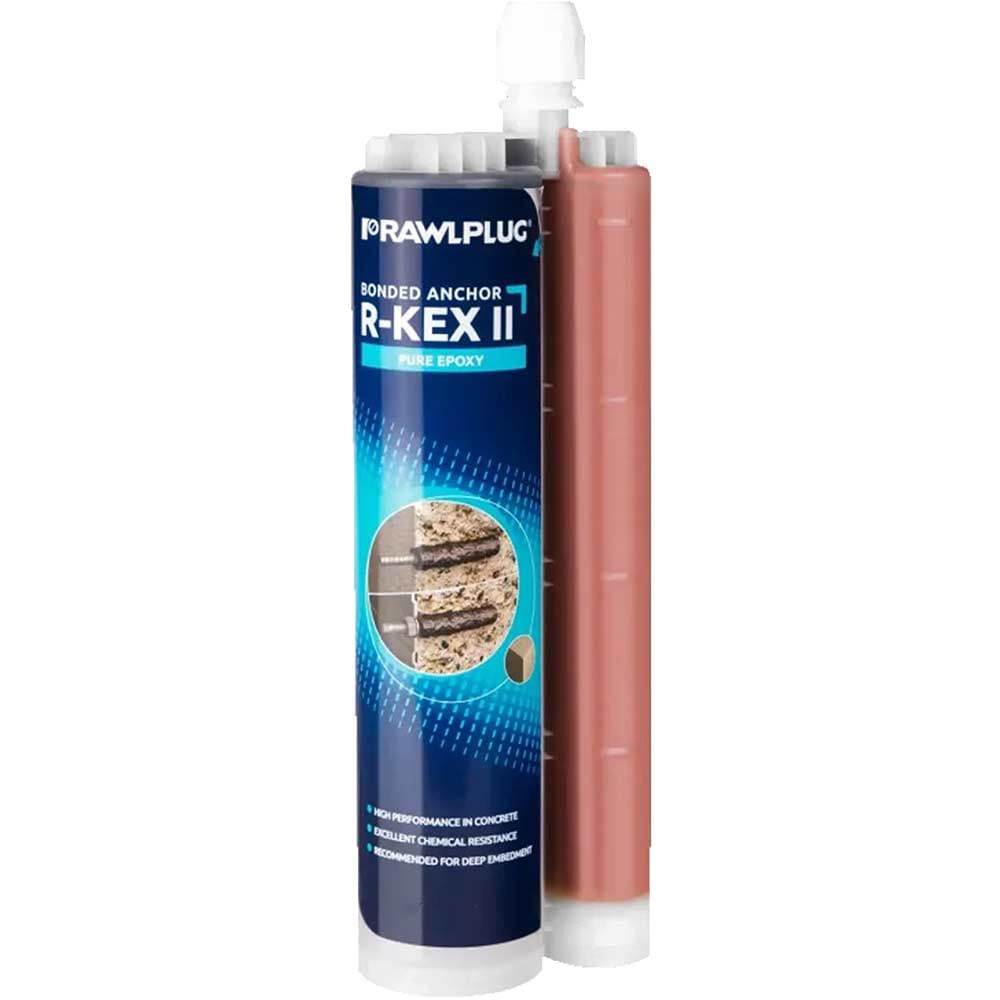

Rawl R-KEX-II Premium Max Strength Epoxy Anchor Resin

The Rawl R-KEX-II Premium Max Strength Epoxy Anchor Resin is a high-performance chemical anchoring solution designed for maximum-strength bonding in cracked and non-cracked concrete.

Approved to EAD 330499-02-0601 for use with threaded rods and EAD 330087-00-0601 for post-installed rebar connections, the R-KEX-II meets rigorous European assessment standards and carries a working life of up to 100 years. Its very high chemical resistance makes it well suited to demanding environments, including industrial and marine settings where exposure to aggressive agents is a concern.

The resin supports installation in all directions — downward, horizontal, and upwards — and is suitable for use in both dry and wet substrates, including flooded holes (use categories I1 and I2). Compatible with both diamond and hammer drilling, it offers extended working time to aid accurate placement, and allows bolt removal to leave a re-usable socket in place.

This cartridge is ideal for structural support installations, post-installed rebar connections, and heavy-duty anchoring applications where long-term performance and compliance documentation are required. A fire testing report is available to support the project approval process with investors and building supervision authorities.

Features and Benefits:
• Approved for post-installed rebar connections (EAD 330087-00-0601)
• Approved for threaded rod use in cracked and non-cracked concrete (EAD 330499-02-0601)
• Working life of up to 100 years
• Suitable for all installation directions — downward, horizontal, and upwards (D3)
• Compatible with dry and wet substrates including flooded holes (I1 & I2)
• Compatible with both diamond and hammer drilling methods
• Extended working time for easier, more controlled installation
• Bolt removal allows re-usable socket to remain in place
• Very high chemical resistance for industrial and marine environments
• Fire testing report available to support project approval
