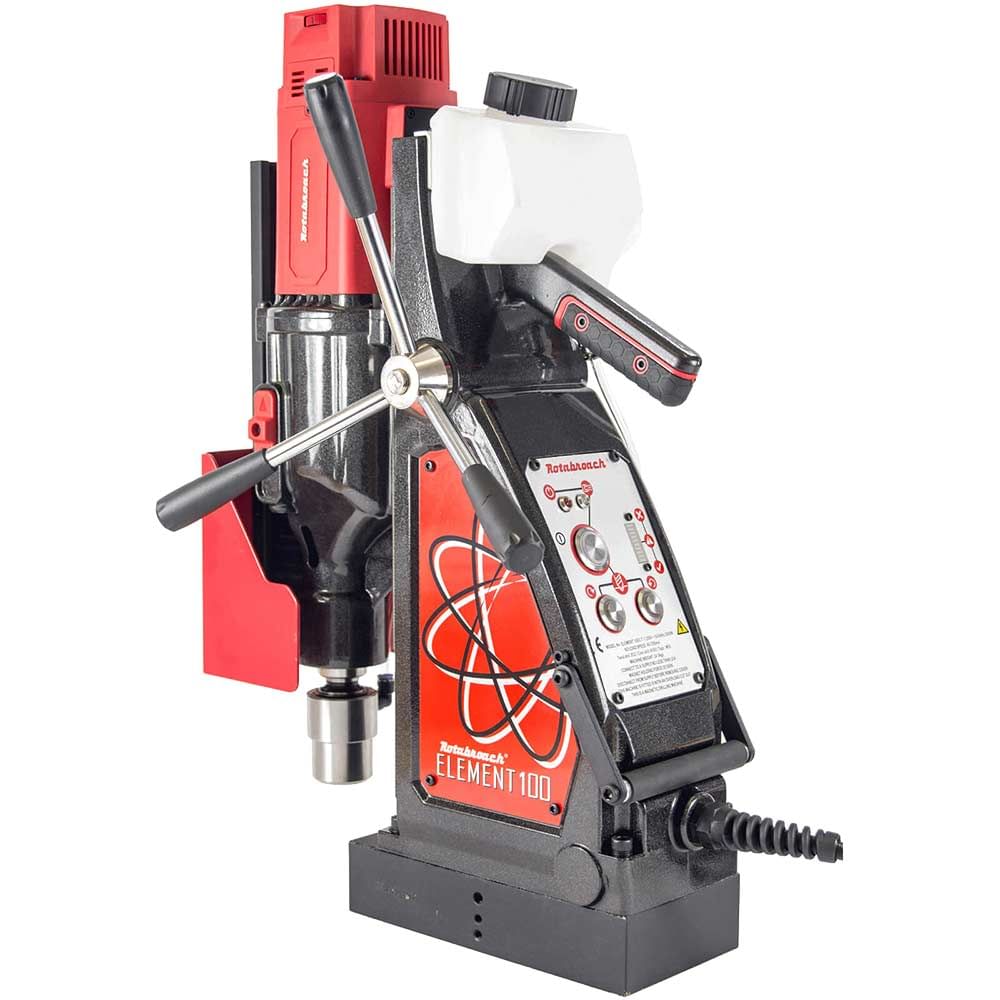

Rotabroach Element 100 Magnetic Drilling Machine

The Rotabroach Element 100 is a heavy-duty magnetic drilling machine designed for large-diameter hole cutting in structural steel and metalwork applications. As Rotabroach's most capable magnetic drill, it delivers exceptional performance for demanding fabrication and construction projects where deep, precise holes are essential.

This professional-grade machine handles cutters up to 100mm diameter and drills to 100mm depth, making it ideal for structural steel fabrication, bridge construction, and heavy engineering work where large mounting holes and fixing points are required. The forward and reverse functionality extends versatility to include tapping operations, whilst the 3 morse taper arbor accommodates conventional twist drills up to 31.75mm diameter for smaller hole requirements.

The 2000W motor drives a four-speed gearbox offering variable speeds from 45 to 700 RPM, allowing operators to optimise cutting parameters for different materials and cutter sizes. Dual motor protection through Cutsmart technology and variable speed control safeguards against overload and excessive wear, extending operational life. The 20,000N magnetic adhesion ensures secure mounting on steel surfaces, whilst the internal coolant system maintains cutting temperatures for cleaner holes and prolonged cutter life.

Features and Benefits:
• Four-speed high performance gearbox for optimised cutting across different materials
• Dual motor protection system combining Cutsmart and variable speed technology
• Forward and reverse functionality for both drilling and tapping operations
• Internal coolant system with mounted bottle for efficient heat management
• Quick release capstan arm for faster setup and cutter changes
• Ergonomic carry handle and 25kg weight for reasonable portability
• Intuitive control panel for straightforward operation
• Comprehensive safety features including fixed guard and magnetic detection

Specifications:
No Load RPM Gear 1: 45-129 RPM
No Load RPM Gear 2: 70-208 RPM
No Load RPM Gear 3: 150-434 RPM
No Load RPM Gear 4: 240-700 RPM
Max Hole Cutting Capacity: 100 x 100mm Deep - 31.75 with MT Drill
Magnet Size: 228mm x 114mm
Magnetic Adhesion: 20,000N
Weight: 25kg
Safety Features: Cutsmart Technology / Fixed Guard / Magnetic Detection

Contents:
Rotabroach Element 100 Magnetic Drilling Machine
Internal Coolant System
16mm Chuck
Arbor Assembly- 6mm Hex Spanner Included
Safety Glasses
Arbor Shank
Drift
Safety Strap
3mm Hex Spanner
Stationary Rings
Pilot Pin
