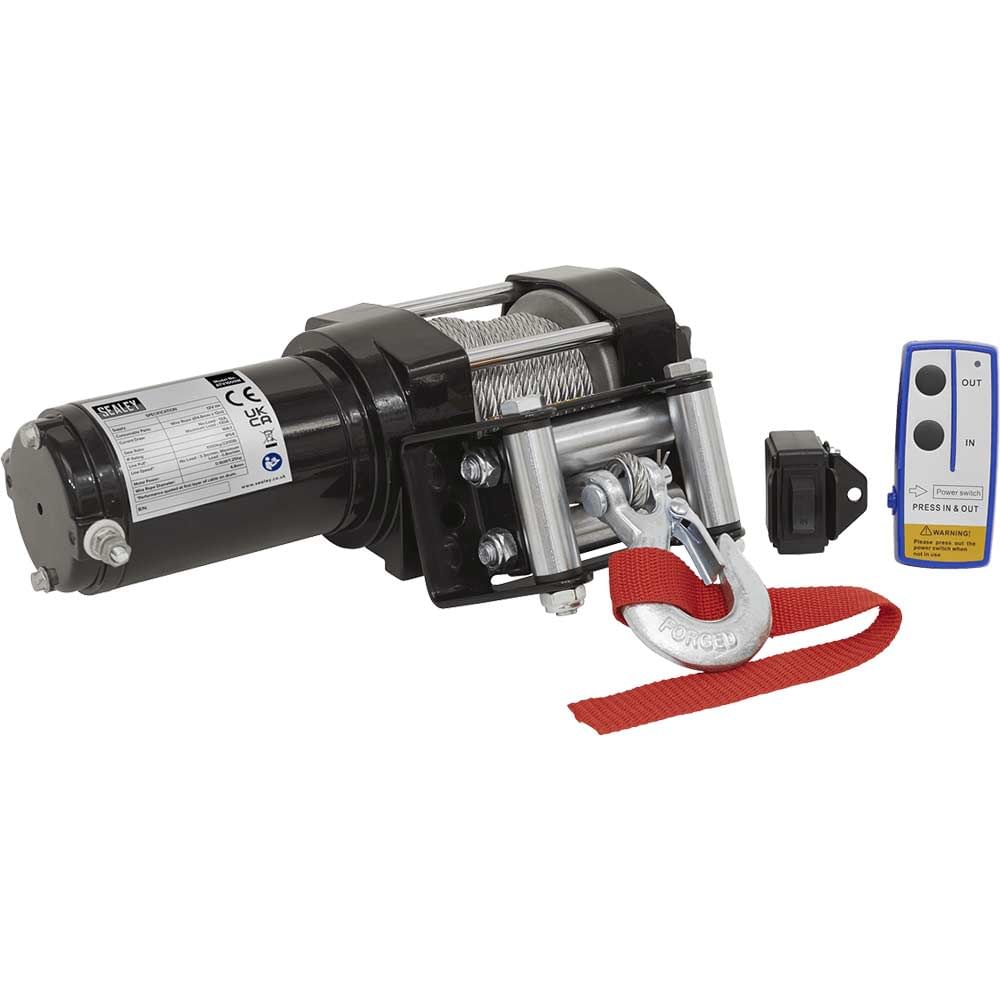

Sealey 12v ATV Winch

The Sealey 12V ATV Winch is a compact electric winch designed specifically for mounting on all-terrain vehicles, offering reliable pulling power for recovery and load-handling tasks. This versatile winch is ideal for agricultural applications, forestry work, and outdoor estate management where ATVs are regularly used for towing or recovery operations.

Built around a 12V DC 1.2hp permanent magnet motor, this winch delivers an impressive 1000kg (2200lb) line pull capacity through its robust 3-stage planetary gear system with a 166:1 gear ratio. The pull and turn clutch mechanism allows for quick manual rope deployment when required, whilst the 4-way roller fairlead ensures even cable distribution onto the drum, reducing wear and extending rope life.

Practical features enhance operational convenience and control. The included wireless remote enables safe operation from a distance, allowing you to monitor the recovery process whilst maintaining a safe working position. The winch comes supplied with 12 metres of 4.8mm diameter wire rope, providing substantial reach for most recovery scenarios. At 8.5kg, the unit is manageable for one-person installation whilst remaining sturdy enough for demanding applications.

Features and Benefits:
• Wireless remote control for safe distance operation
• 3-stage planetary gears deliver reliable pulling power
• 4-way roller fairlead ensures even cable distribution and extended rope life
• Pull and turn clutch allows quick manual rope deployment
• Compact 8.5kg design suitable for ATV mounting

Specifications:
Brand: Sealey
Consumable Parts: Wire Rope (Ø4.8mm x 12m)
Current Draw: No-Load - 12A, Maximum Load - 118A
Gear Ratio: 166:1
Line Pull*: 1000kg/2200lb
Line Speed*: No Load - 3.3m/min, Maximum Load - 0.8m/min
Motor Power: 0.9kW/1.25hp
Nett Weight: 8.5kg
Note: *Performance quoted at first layer of cable on drum.
Supply: 12V
Wire Rope Diameter: 4.8mm
Cable Length: 12m
