Sealey AK4563D Air Operated Gear Oil Dispensing System

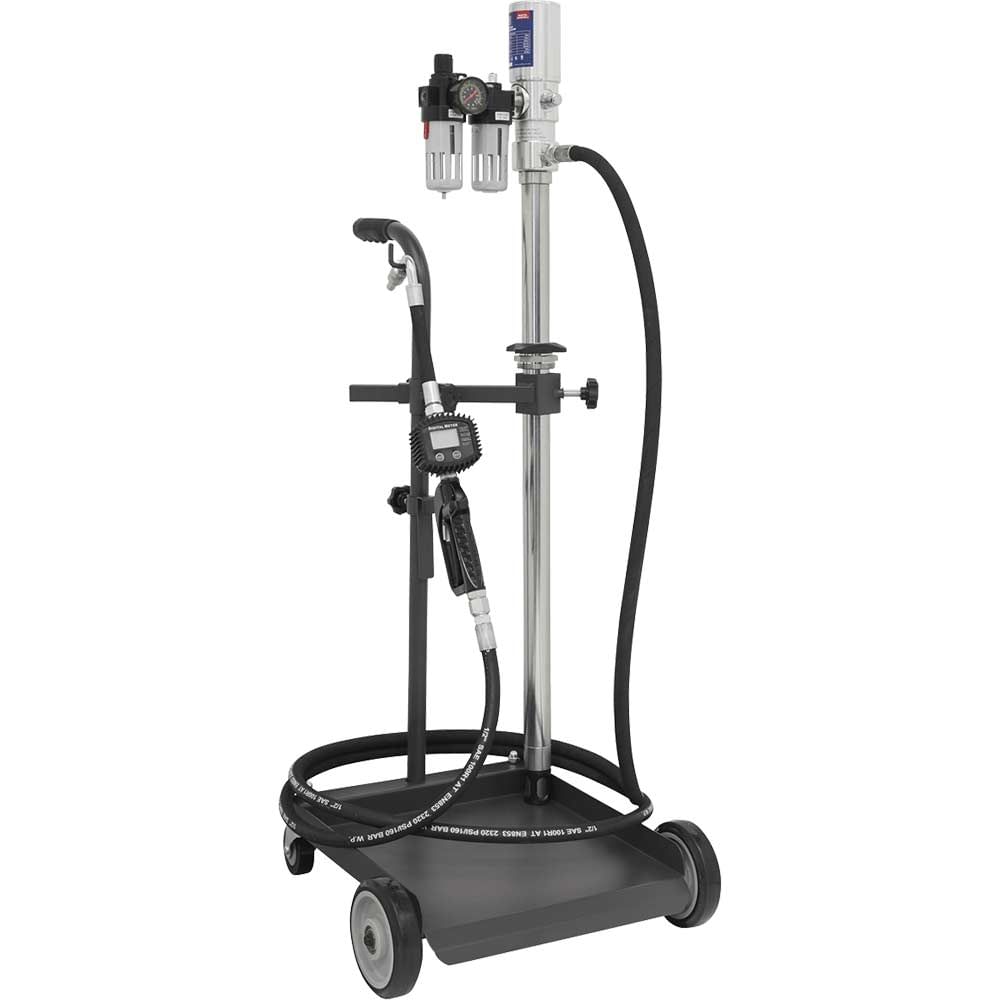

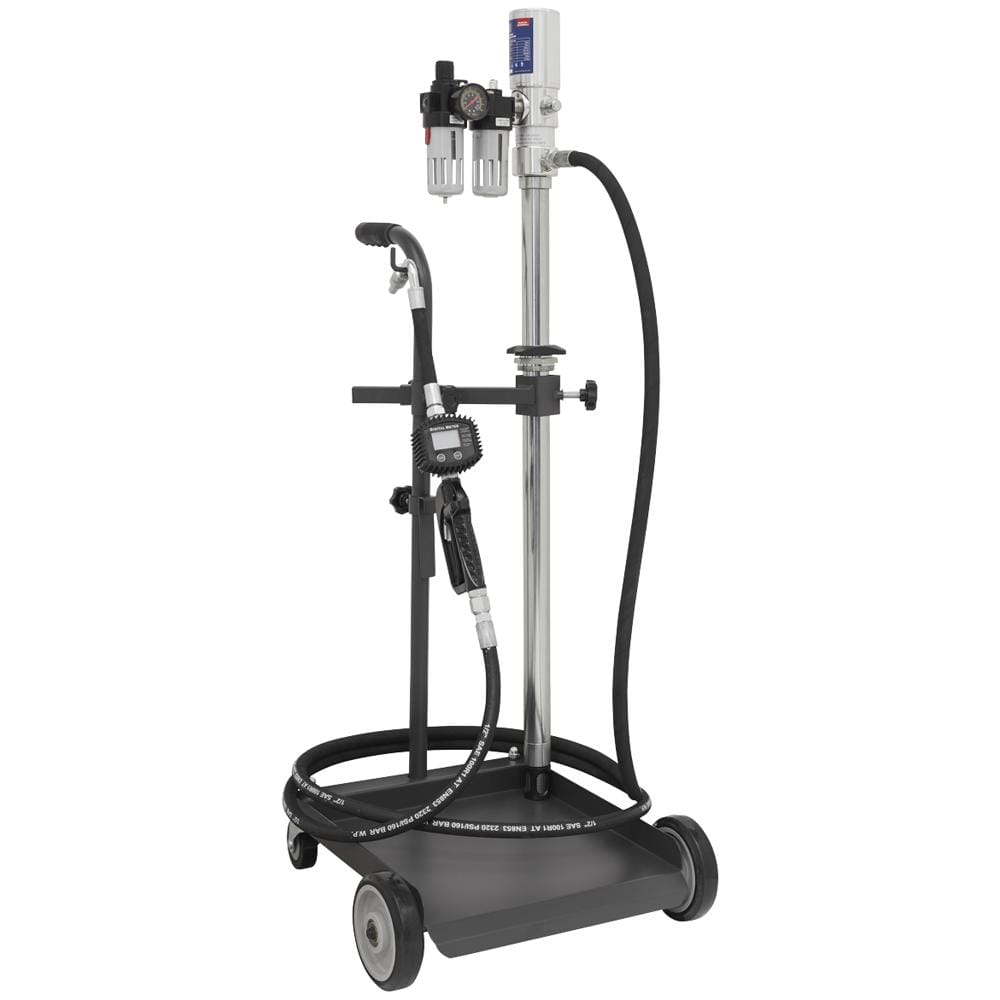

The Sealey AK4563D is a professional air-operated gear oil dispensing system designed for efficient fluid transfer in workshop and commercial vehicle maintenance environments. This mobile dispensing unit features a 3:1 double acting pump with 2"BSP fittings, delivering reliable performance for handling gear oils and other lubricants up to SAE150 viscosity.

The system includes a comprehensive air management setup connected to a 730mm rigid suction probe with integrated non-return valve, ensuring consistent flow and preventing backflow during operation. The 4m delivery hose provides excellent reach around vehicles and equipment, whilst the included digital oil meter (Model No. AK4565D) enables accurate dispensing and inventory control.

Versatility is a key feature of this dispensing system, with compatibility extending beyond gear oils to include engine, hydraulic, synthetic and transmission oils. The mobile trolley accommodates containers up to 50kg, making it ideal for workshop environments where multiple fluid types are handled regularly. Operating at a recommended 70psi air pressure, the pump delivers flow rates up to 12L/min with a maximum output pressure of 350psi.

Features and Benefits:
• Digital oil meter for precise dispensing and fluid management
• Mobile trolley design for easy positioning around the workshop
• Rigid suction probe with non-return valve prevents spillage and contamination
• Air management system included for optimal pump performance
• Handles multiple oil types from lightweight engine oils to heavy gear oils

Specifications:
Brand: Sealey
Maximum Air Pressure: 115psi
Maximum Flow Rate: 12L/min
Maximum Output Pressure: 350psi
Maximum Trolley Capacity: 50kg
Maximum Viscosity: SAE150
Nett Weight: 18.45kg
Outlet Size: 1/2"BSP
Pump Ratio: 3:1
Recommended Air Pressure: 70psi
