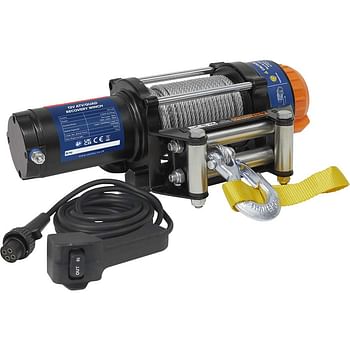

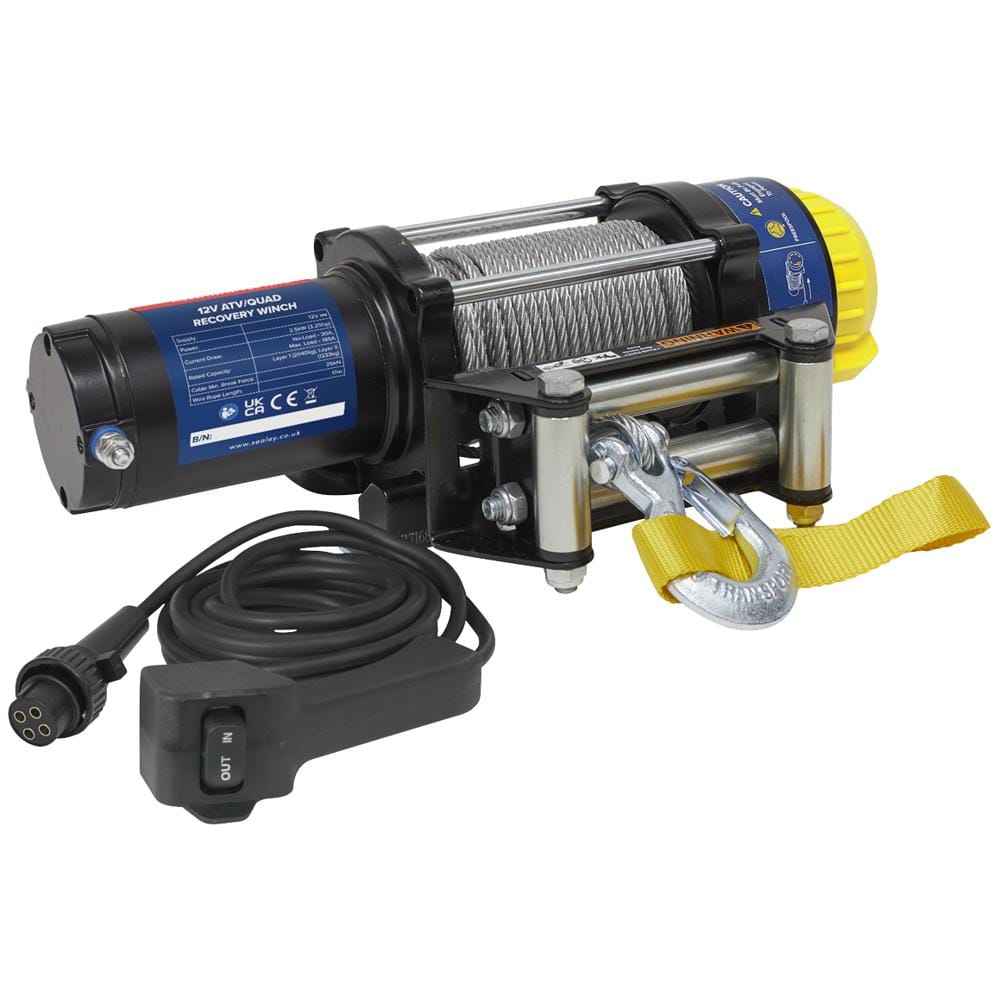

Sealey ATV2040 12v ATV and Quad Bike Recovery Winch

The Sealey ATV2040 is a heavy-duty 12V electric winch designed specifically for ATV and quad bike mounting applications. This robust recovery winch delivers an impressive 2040kg (4500lb) line pull capacity, making it ideal for vehicle recovery, forestry work, and challenging off-road situations where reliable pulling power is essential.

Built around a high-power 2.5kW (3.25hp) 12V DC permanent magnet motor, this winch provides first-class pulling performance combined with exceptional durability. The all-metal chassis construction ensures long-term reliability with minimal maintenance requirements, whilst the IP67 rating guarantees protection against dust and water ingress – crucial for demanding outdoor environments.

The ATV2040 features a patented automatic spring brake system that remains reliable even under full load operation, providing enhanced safety during recovery operations. The motor can be easily rotated 90° to accommodate various mounting configurations and wiring requirements, offering installation flexibility across different ATV models.

High-quality wire rope feeds smoothly through a 4-way roller fairlead, ensuring even distribution of cable onto the drum and reducing wear. With a 180:1 gear ratio, this winch balances pulling power with practical line speed, delivering 4.5m/min under no load and 1.3m/min at maximum capacity.

Features and Benefits:
• IP67-rated protection against dust and water for reliable outdoor use
• 90° motor rotation capability for flexible mounting options
• Patented automatic spring brake for safe full-load operation
• 4-way roller fairlead ensures even cable distribution and longevity
• All-metal chassis construction for durability and low maintenance

Specifications:
Brand: Sealey
Consumable Parts: ATV2040.WR - Wire Rope (Ø5.4mm x 17m) for ATV2040, ATV2040.DR - Dyneema Rope (Ø5.5mm x 17m) for ATV2040
Current Draw: No-Load - 30A, Maximum Load - 185A
Gear Ratio: 180:1
Line Pull*: 2040kg(4500lb)
Line Speed*: No Load - 4.5m/min, Maximum Load - 1.3m/min
Motor Power: 2.5kW(3.25hp)
Nett Weight: 13.9kg
Note: *Performance quoted at first layer of cable on drum
Rated Capacity: Layer 1: 2043kg, Layer 4: 1234kg
Supply: 12V
Wire Rope Diameter: 5.4mm
Wire Rope Length: 17m
