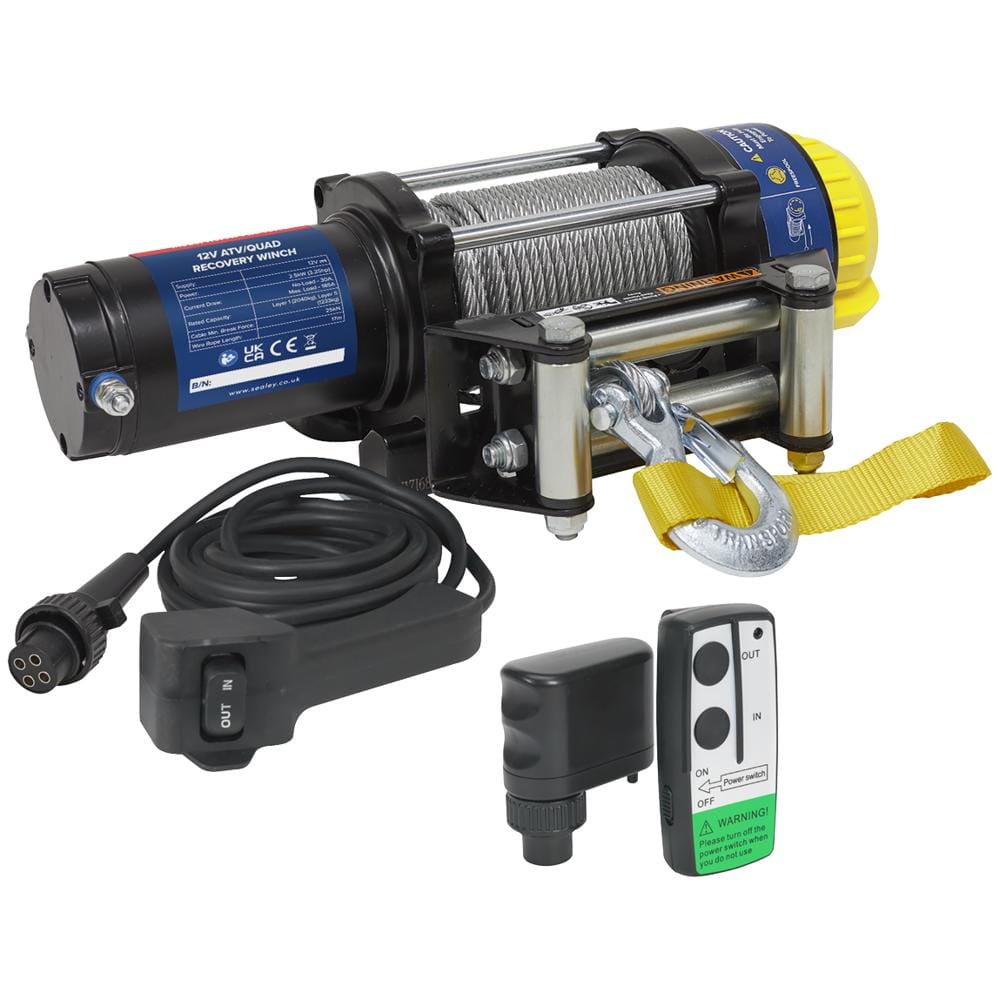

Sealey ATV2040KIT 12v ATV and Quad Bike Recovery Winch Kit

The Sealey ATV2040KIT is a professional-grade 12V recovery winch kit designed specifically for mounting on ATVs and quad bikes, delivering a robust 2040kg (4500lb) line pull capacity. This comprehensive package combines high-speed performance with exceptional durability for demanding recovery and hauling tasks in agricultural, forestry, and off-road environments.

Engineered for the toughest jobs, this winch features a high-power 12V DC permanent magnet motor producing 2.5kW (3.25hp) of pulling power. The 3-stage planetary gear system operates at a 180:1 ratio, whilst the patented automatic spring brake ensures reliable operation even under full load conditions. The heavy-duty all-weather housing protects the IP67-rated motor and gearbox against dust and water ingress, making it ideal for use in challenging outdoor conditions.

The kit includes a 4-way roller fairlead for smooth wire rope operation and a sliding ring gear clutch for controlled winching. The high-quality wire rope feeds reliably through the fairlead system, whilst the included 4-pin universal remote control (UWRC01) allows safe operation from a distance. Suitable for vehicle recovery, equipment hauling, and field maintenance tasks, this winch delivers 4.5m/min line speed at no load and 1.3m/min under maximum load.

Features and Benefits:
• IP67-rated motor and gearbox for superior weather protection
• Patented automatic spring brake for reliable full-load operation
• 4-way roller fairlead ensures smooth rope feeding and reduced wear
• Universal 4-pin remote control included for safe distance operation
• 3-stage planetary gears provide excellent pulling efficiency
• Backed by 3-year guarantee for professional peace of mind

Specifications:
Brand: Sealey
Consumable Parts: ATV2040.WR - Wire Rope (Ø5.4mm x 17m) for ATV2040, ATV2040.DR - Dyneema Rope (Ø5.5mm x 17m) for ATV2040
Current Draw: No-Load - 30A, Maximum Load - 185A
Gear Ratio: 180:1
Line Pull*: 2040kg(4500lb)
Line Speed*: No Load - 4.5m/min, Maximum Load - 1.3m/min
Motor Power: 2.5kW(3.25hp)
Nett Weight: 14.05kg
Note: *Performance quoted at first layer of cable on drum
Supply: 12V
