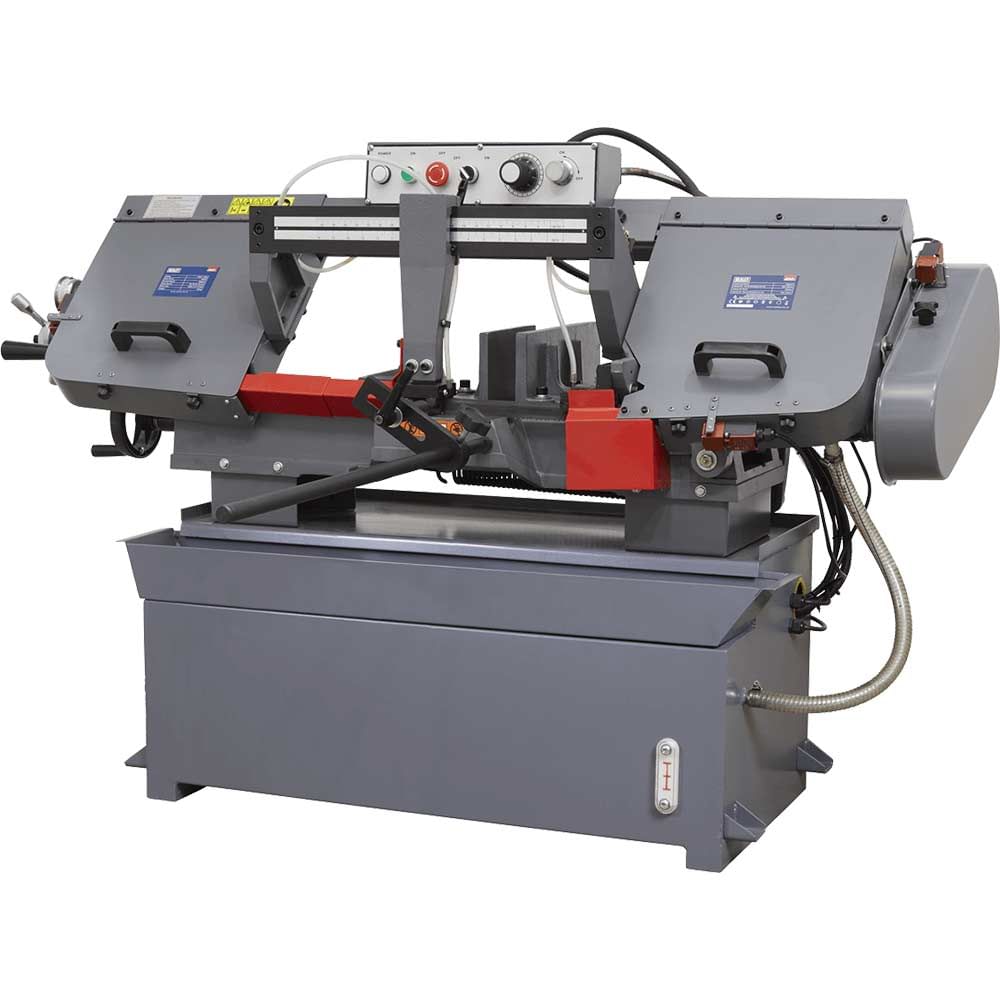

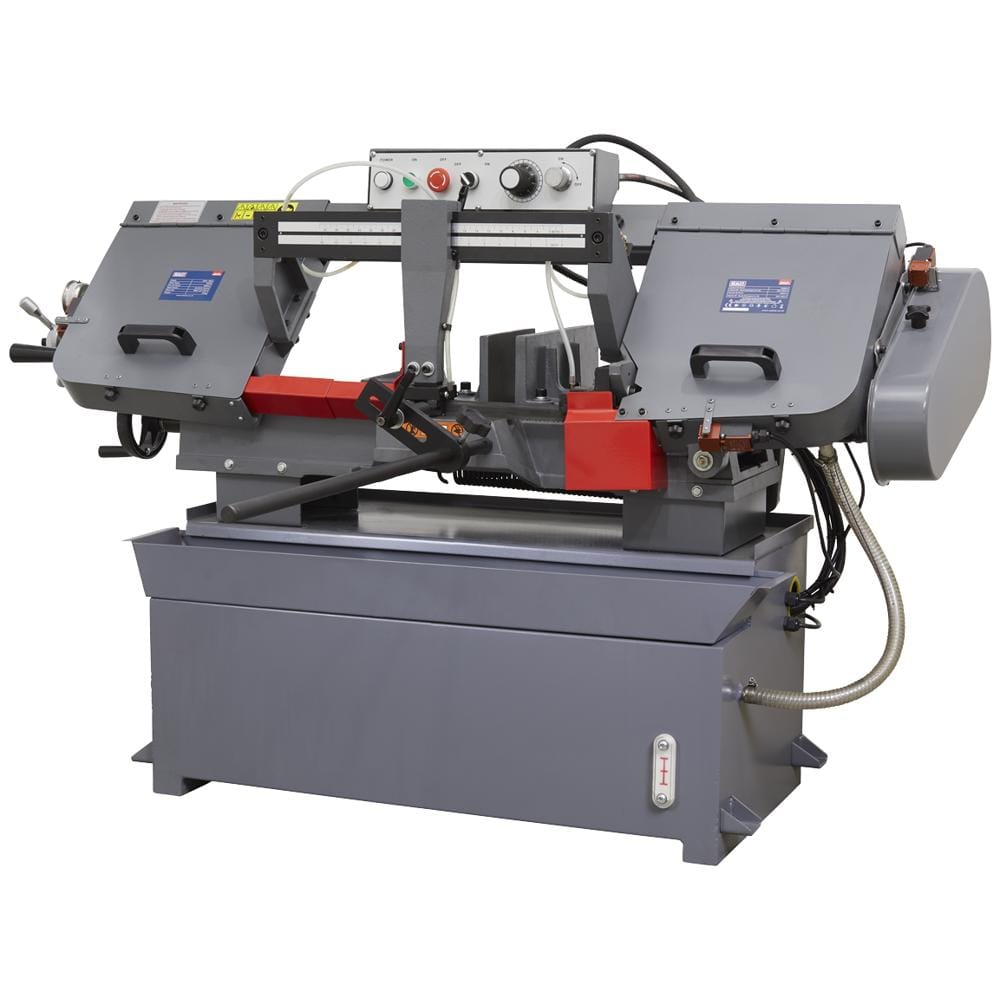

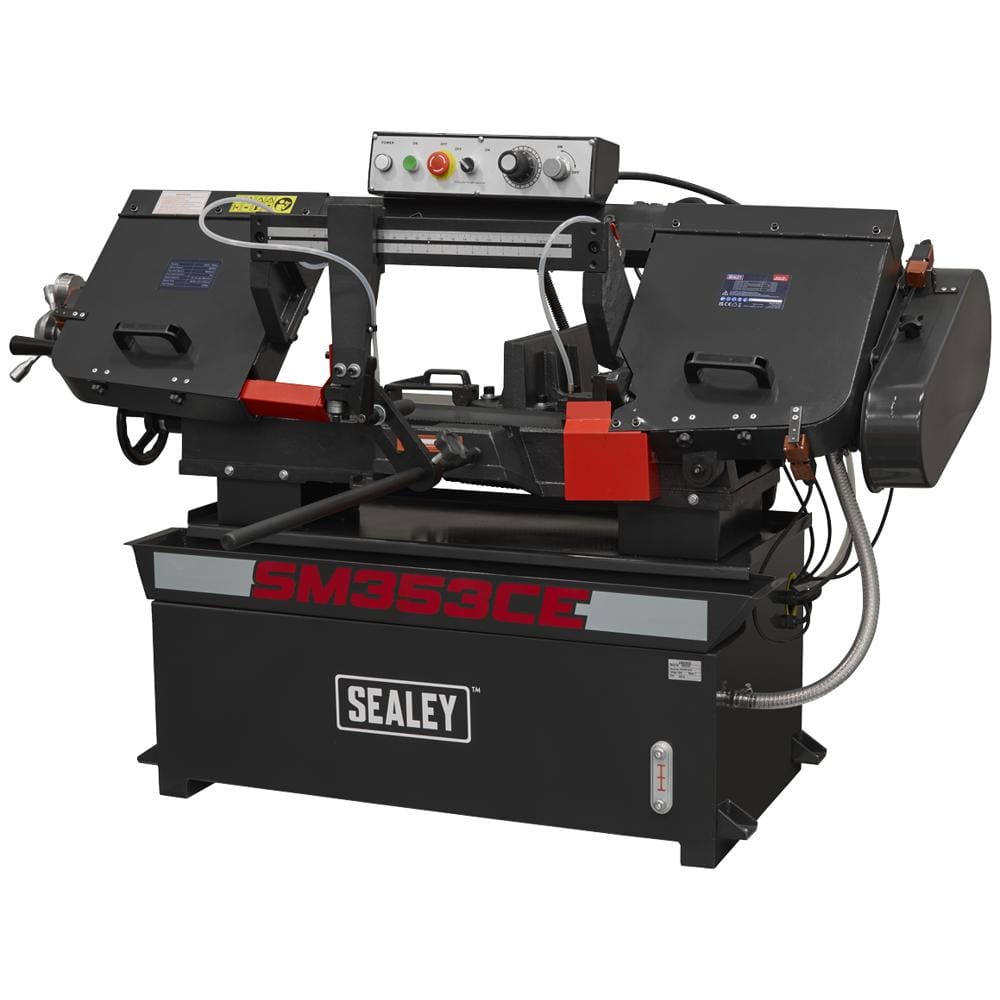

Sealey Bandsaw Horizontal Hydraulic Arm

The Sealey SM353CE is a horizontal hydraulic arm bandsaw engineered for precision cutting in industrial and agricultural engineering workshops. This professional-grade metal cutting bandsaw features a heavy-duty 1500W single-phase motor and precision machined cast iron saw bed, delivering reliable performance for demanding fabrication and maintenance applications.

Manufactured to comply with Supply of Machinery (Safety) Directives 1992 and fully CE approved, this bandsaw prioritises operator safety through multiple protective features. The hydraulic damping system prevents the saw arm from dropping onto the workpiece, ensuring smooth, controlled cutting action whilst reducing operator fatigue during extended use. A 24V/230V combined circuit system operates the coolant pump and main power controls, providing enhanced electrical safety in workshop environments.

The bandsaw offers substantial cutting capacity, handling round stock up to 228mm diameter and rectangular material up to 228 x 355mm at 90 degrees. Four variable blade speeds (21, 33, 42 and 59m/min) allow operators to optimise cutting parameters for different materials and applications. An integrated over-current sensor automatically cuts motor power in the event of blade jam, protecting both the machine and operator from potential damage or injury.

Safety protection extends throughout the machine design, with all blade and pulley covers fitted with safety switches that prevent operation when guards are removed. The integrated coolant fluid system helps maintain blade life and cutting quality whilst reducing heat build-up during intensive cutting operations.

Features and Benefits:
• Hydraulic feed saw arm provides greater cutting control for clean, accurate results
• Large cutting capacity suitable for substantial industrial workpieces
• 24V safety system for coolant pump and motor controls reduces electrical risk
• Over-current sensor protects motor and prevents damage during blade jams
• Precision machined cast iron construction ensures stability and longevity
• Safety switches on all covers prevent accidental operation
• Four-speed blade system allows optimisation for different materials

Specifications:
• Brand: Sealey
• Nett Weight: 279kg
• Capacity 90° - Round: Ø228mm
• Capacity 90° - Square/Rectangular (H x W): 228 x 355mm
• Capacity 45° - Round: Ø152mm
• Capacity 45° - Square/Rectangular (H x W): 228 x 152mm
• Blade Size: 3035 x 27 x 0.9mm
• Blade Speeds: 21, 33, 42 ,59m/min
• No Load Speed: 1400rpm
• Motor Power: 1500W
• Supply: 230V
• Weight: 279kg
