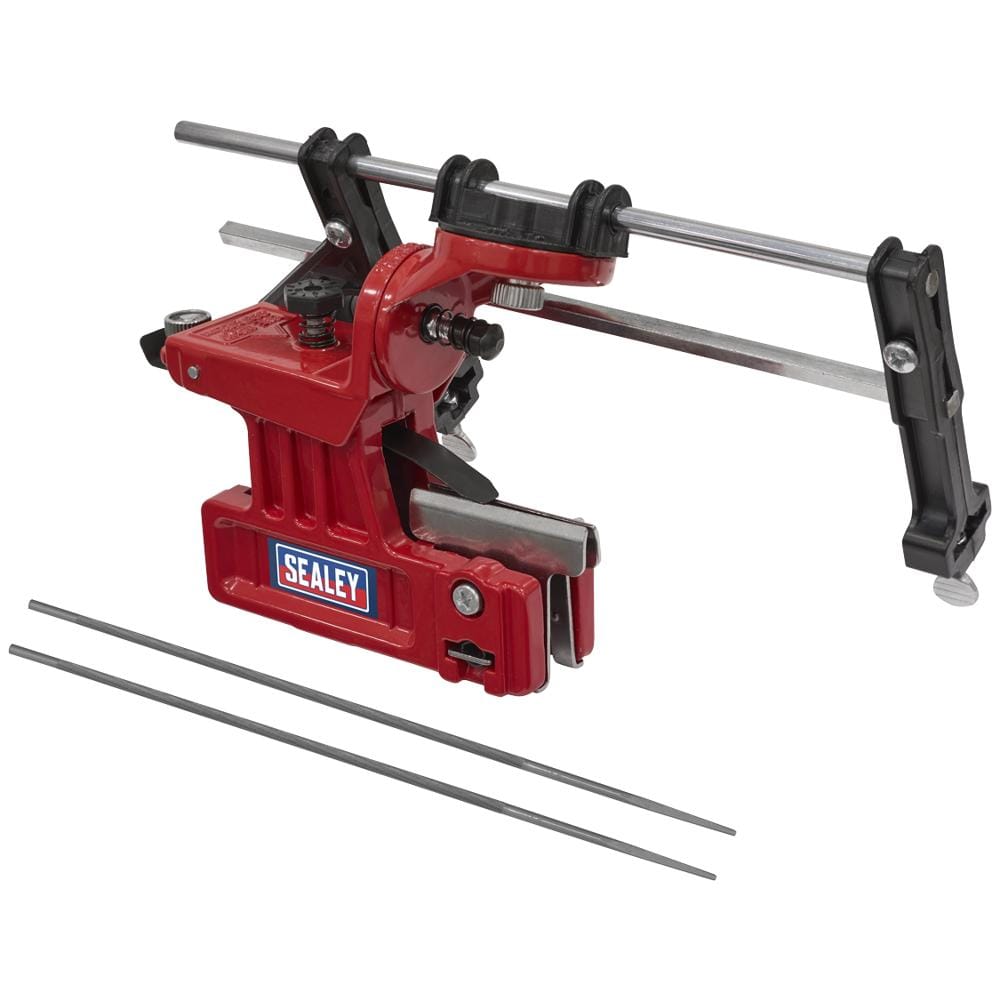

Sealey Bar Mount Chainsaw Chain Sharpening Guide

The Sealey Bar Mount Chainsaw Chain Sharpening Guide (Model CS02) is a precision filing guide designed to help users sharpen chainsaw chains accurately and consistently directly on the bar.

Mounted securely using a locking pin and adaptable jaws, the guide holds both the tool and chain firmly in position during use. It adjusts along two axes to accommodate different chain types, and both axes can be locked to ensure every cutter is filed to an identical angle — eliminating guesswork and reducing the risk of an uneven chain.

The chain code (S, H, or D) denotes the recommended angle setting, making correct adjustment straightforward even for less experienced users. A stop screw controls the depth of filing to keep each pass consistent, while the guide accommodates different file sizes to suit various cutter configurations. Two Ø4.8mm files are included, with Ø4mm files available separately under model number CS03 (pack of 3).

Suitable for arborists, landscapers, forestry contractors, and groundwork professionals who rely on sharp, well-maintained chainsaw chains, this guide is an ideal workshop or on-site tool for anyone looking to extend chain life and maintain cutting performance without the cost of professional resharpening.

Features and Benefits:
• Locking pin and adaptable jaws secure the guide and chain during filing
• Adjustable along two axes to suit specific chain types
• Both axes lockable to ensure uniform cutter angles throughout the chain
• Chain code reference (S, H or D) simplifies angle setting
• Stop screw maintains consistent filing depth across all cutters
• Accommodates different file sizes to suit various cutter configurations
• Includes two Ø4.8mm files; Ø4mm files available separately (Model CS03)

Specifications:
Model No: CS02
Brand: Sealey
Nett Weight: 0.49kg
Included File Diameter: Ø4.8mm (x2)
Alternative File Size: Ø4mm (available separately, Model No. CS03, pack of 3)
