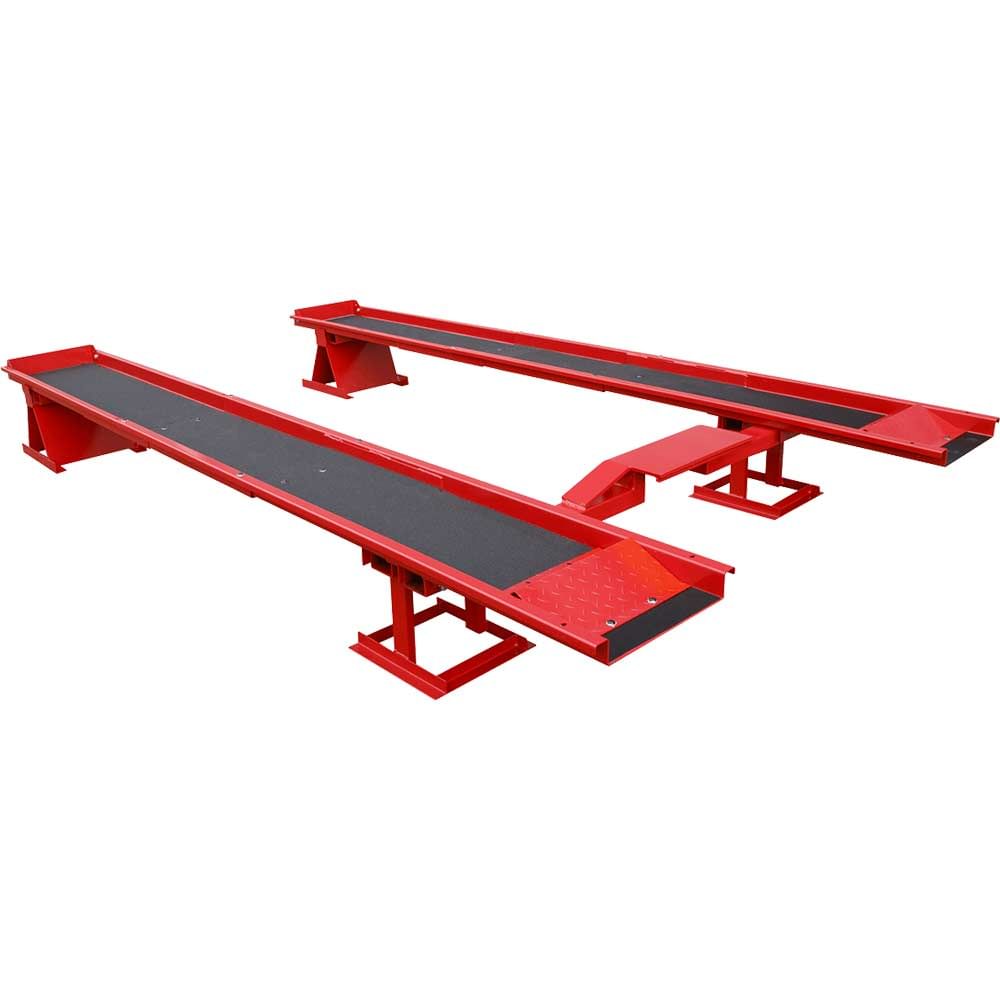

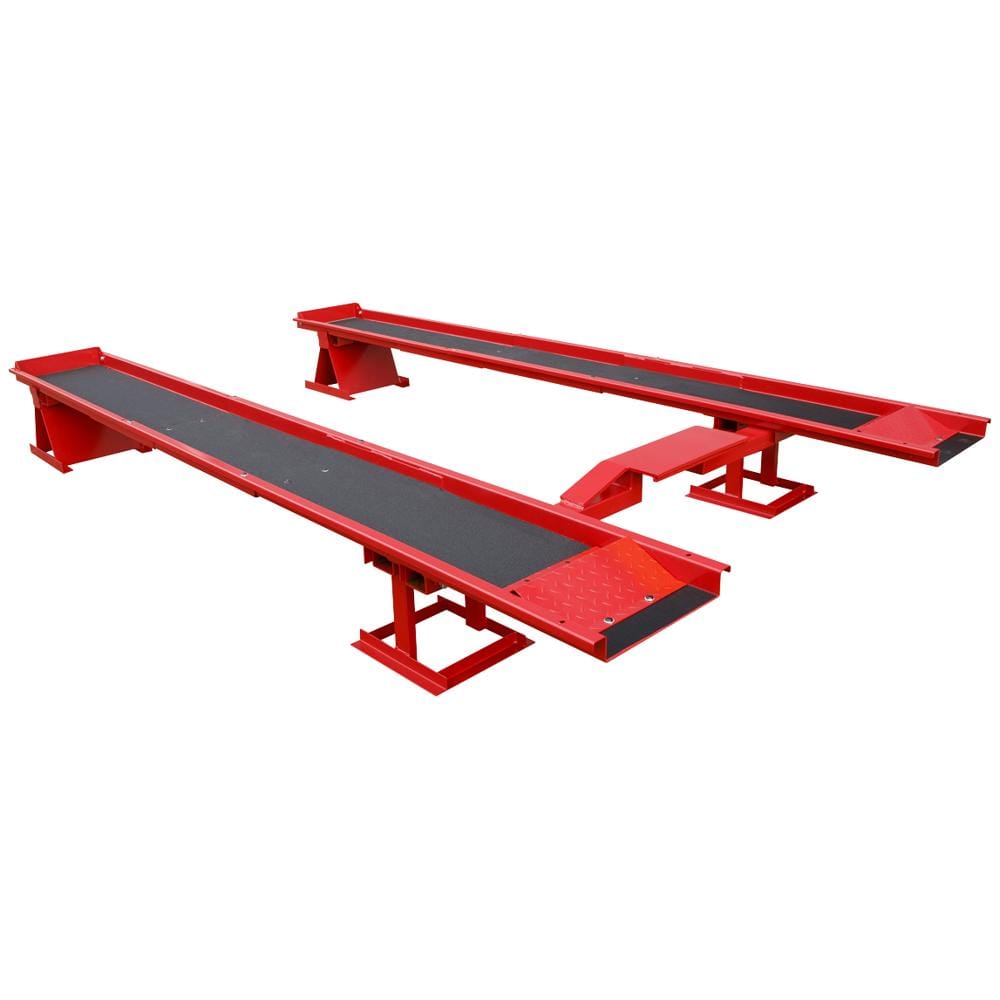

Sealey Car Lift / Ramp 3 Tonne Capacity

The Sealey Car Lift / Ramp 3 Tonne Capacity is a professional-grade vehicle lifting system designed to provide full underside access for comprehensive automotive work. This innovative ramp system safely raises vehicles completely off the ground, creating an unobstructed workspace ideal for servicing, repairs and maintenance tasks that require total clearance beneath the vehicle.

Supplied as a complete kit with four stands and a removable lifting beam, this 3 tonne capacity system (rated per pair, with a maximum single axle weight of 1800kg) offers exceptional versatility for professional workshops and garages. The adjustable track width accommodates various vehicle makes and models with tyres up to 380mm wide, whilst the maximum wheelbase capacity of 3000mm suits most passenger cars and light commercial vehicles.

The compact footprint makes this lifting system particularly valuable for confined workshop spaces where traditional fixed ramps would be impractical. It's especially well-suited to tasks requiring complete underside access, including exhaust system work, floor panel repairs, sill replacement, damaged jacking point repairs and undersealing applications.

Operation requires a compatible jack with a maximum saddle height of 100mm, maximum pad diameter of Ø120mm, and maximum jacking height of 435mm to lift the beam into position before inserting the stands. Please note this is a heavy item weighing 232.6kg – additional assistance will be required at the delivery point.

Features and Benefits:
• Complete vehicle lift system with four stands and removable beam for total underside access
• Adjustable track width (1306-1630mm centre line) fits various vehicle types
• Compact design fits within confined garage and workshop spaces
• 430mm ramp height provides excellent working clearance
• Accommodates wheelbase up to 3000mm and tyre width up to 380mm

Specifications:
Brand: Sealey
Capacity Pair: 3 Tonne
Maximum Jack Pad Diameter: Ø120mm
Maximum Jack Pad Entry Height: 100mm
Maximum Track: 1630mm (Ramp Centre Line)
Maximum Tyre Width: 380mm
Maximum Wheel Base: 3000mm
Minimum Track: 1306mm (Ramp Centre Line)
Nett Weight: 232.6kg
Overall Dimensions (L x W x H): 3540 x 2111 x 430mm
Overall Length: 3540mm
Ramp Height: 430mm
Model No. MR1
