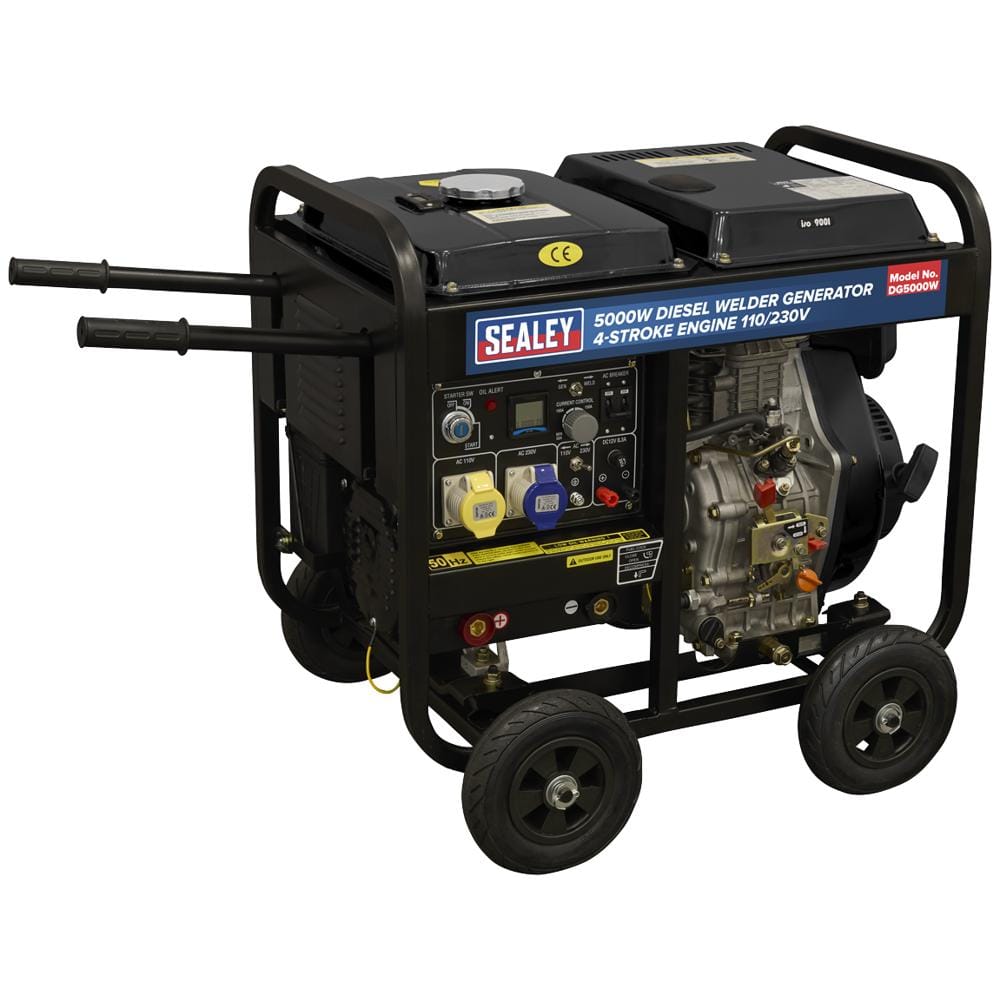

Sealey DG5000W 4 Stroke Diesel Welder Generator 5000W

The Sealey DG5000W is a diesel-powered welder generator delivering 5000W of maximum power alongside built-in arc welding capability, making it an exceptionally versatile unit for remote and off-grid worksites.

Powered by a 418cc single-cylinder, 4-stroke diesel engine, the DG5000W outputs both 110V and 230V AC, providing the flexible power options required across construction, agricultural, and industrial environments. A 15-litre fuel tank supports up to 12 hours of continuous operation, reducing downtime and the need for frequent refuelling on extended jobs.

The integrated welding function offers an adjustable current range of 80–180A, suitable for electrodes from Ø1.6–4mm, giving contractors and site welders genuine flexibility when working with different materials and joint requirements. Starting is straightforward with both manual recoil and key start options as standard.

Built for worksite conditions, the unit features a rugged protective frame with four wheels and two pull handles for practical manoeuvrability across uneven terrain. At 120kg, it is a substantial machine and benefits from the wheeled chassis for repositioning. The IP23 rating confirms a degree of protection against ingress, appropriate for outdoor site use. Supplied with two keys, a 2.8m electrode holder, and a 2.8m earth clamp, the DG5000W is ready to work straight from delivery.

Features and Benefits:
• Dual 110V and 230V AC output for flexible on-site power
• Built-in arc welding with adjustable 80–180A current range
• Compatible with electrodes from Ø1.6–4mm
• 418cc 4-stroke diesel engine with 5000W maximum power output
• Dual start options — manual recoil and key start
• 15-litre fuel tank with up to 12 hours maximum running time
• IP23 rated for outdoor site use
• Four-wheel chassis with pull handles for easy on-site movement
• Supplied with electrode holder and earth clamp ready for use

Specifications:
Model No: DG5000W
Brand: Sealey
Maximum Power Rating: 5000W
Continuous Power Rating: 4600W
Motor Power: 5.7kW/3600rpm
Motor Type: 4-Stroke Diesel
Output: 110V/230V
Current Rating: 20A
Welding Current: 80–180A
Electrode Capacity: 1.6–4mm
Fuel: Diesel
Fuel Tank: 15L
Oil Capacity: 1.65L
Maximum Running Time: 12hrs
IP Rating: IP23
Noise Rating: 97dB(A)
Nett Weight: 120kg
Dimensions (W x D x H): 720 x 485 x 600mm
Quality Class: A
Power Rating Category: COP
Performance Class: G1
Rated Power Factor (COS ?): 0.8 kW
