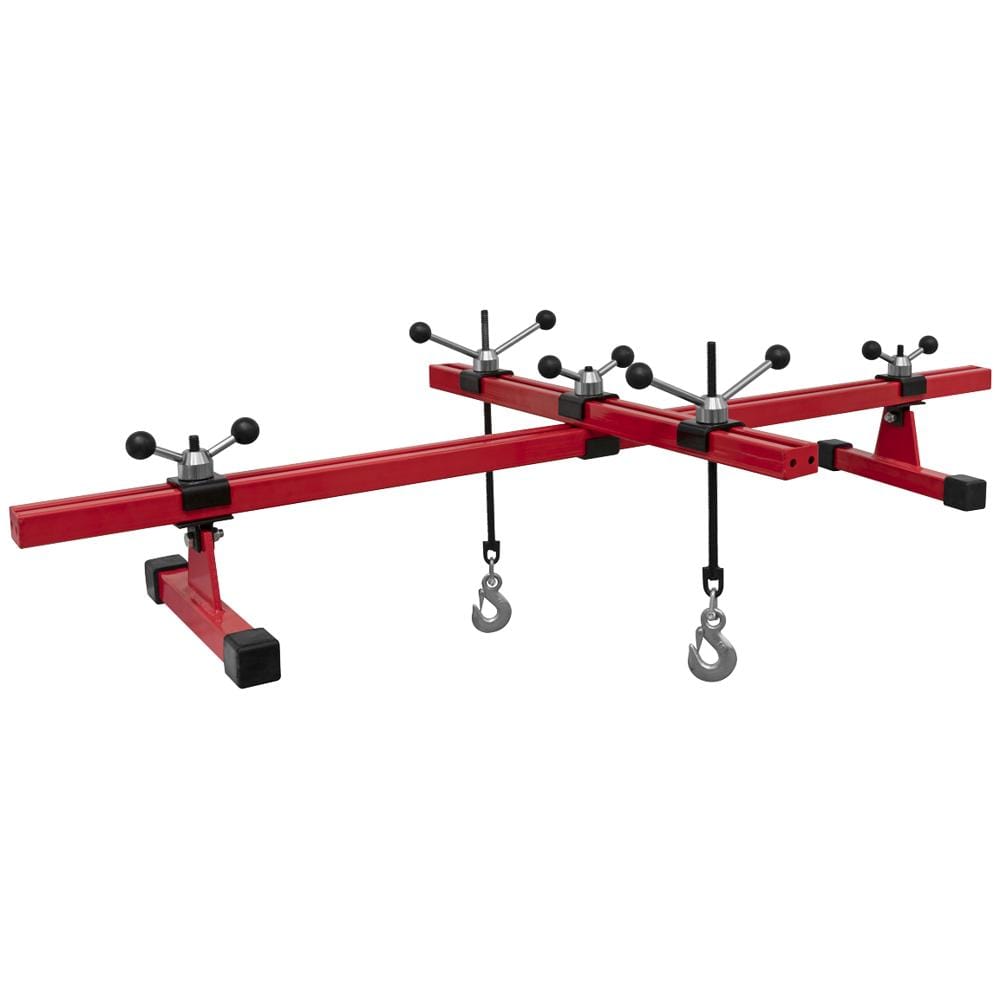

Sealey Engine Support Beam and Cross Beam

The Sealey Engine Support Beam and Cross Beam is a professional workshop support system designed for engine maintenance and transmission work. This robust 500kg capacity support enables mechanics and vehicle technicians to safely position and stabilise engines during critical operations such as replacing anti-vibration mountings, body panels, gearboxes and transmissions.

The distinctive 360° adjustable rotating cross beam provides exceptional versatility, allowing engineers to configure the support precisely for different vehicle layouts and access requirements. Both the main beam and cross beam feature extensive adjustment ranges, with the main beam extending from 60mm to 1680mm and the cross beam adjusting from 60mm to 860mm, accommodating a wide variety of vehicle sizes and engine bay configurations.

Fine positioning control is achieved through two screw hook mechanisms supplied in 350mm and 450mm lengths, whilst rubber feet ensure stable, secure placement on workshop surfaces without marking or slipping. The substantial 23kg construction delivers the rigidity required for safe, reliable engine support during demanding maintenance procedures.

Features and Benefits:
• 360° rotating cross beam enables flexible support positioning for complex jobs
• 500kg capacity suitable for most automotive engines
• Dual screw hook mechanisms provide precise height adjustment
• Wide adjustment range accommodates various vehicle types
• Rubber feet protect workshop floors and prevent movement

Specifications:
• Brand: Sealey
• Capacity: 500kg
• Cross Beam Maximum Width: 860mm
• Cross Beam Minimum Width: 60mm
• Main Beam Maximum Width: 1680mm
• Main Beam Minimum Width: 60mm
• Nett Weight: 23kg
• Screw Hook Lengths: 450/350mm
