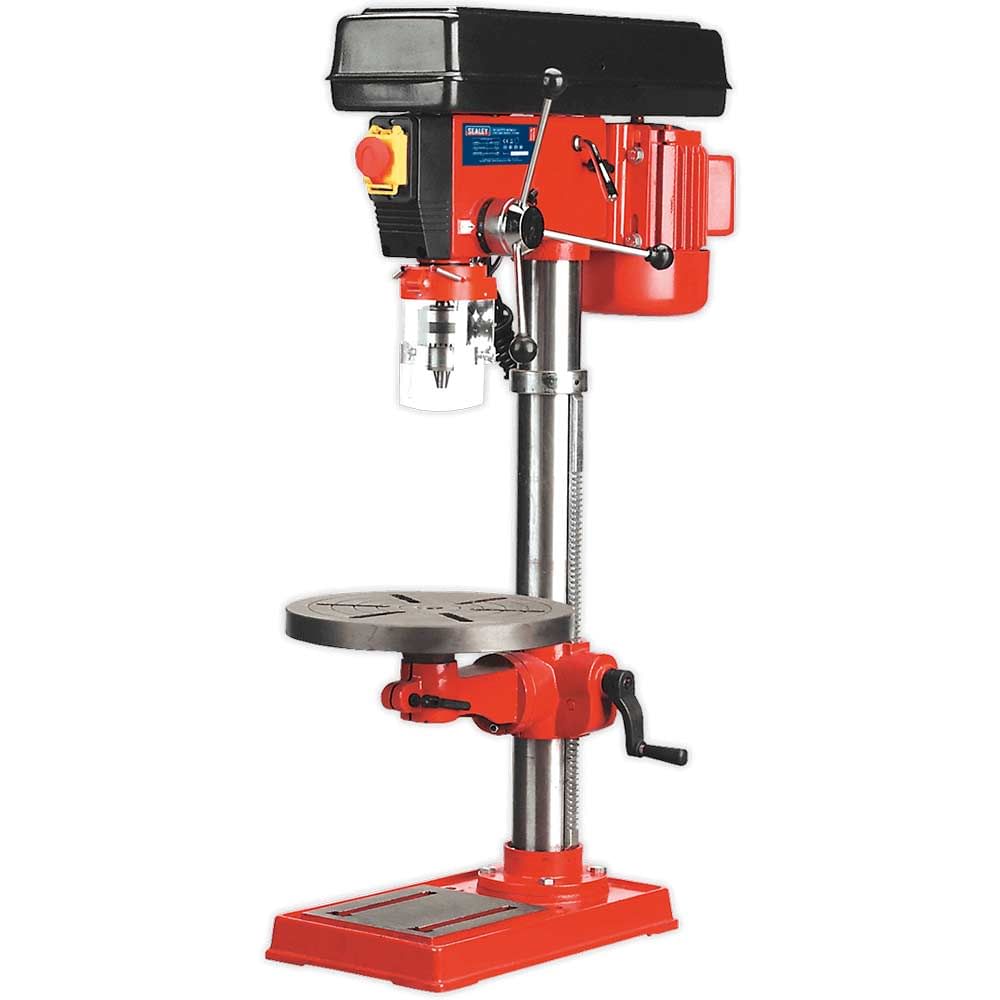

Sealey GDM120B 16 Speed Bench Pillar Drill

The Sealey GDM120B is a 16-speed bench pillar drill designed for light industrial, agricultural and woodworking applications. This versatile bench drill combines precision engineering with comprehensive safety features, making it suitable for professional workshops, farms and educational establishments.

The drill features a rack and pinion feed shaft with adjustable preset depth control, ideal for repetitive drilling tasks where consistency is essential. The multiple speed drive system offers 16 speeds ranging from 210 to 3340rpm, providing flexibility for drilling various materials and hole sizes. The MT2 Morse taper spindle housing accepts taper shank drill bits for enhanced versatility, whilst the 16mm capacity chuck handles standard drilling operations with ease.

Safety compliance is built into this bench pillar drill, meeting Safety of Machinery (Safety) Directives 1992 and amendments. The no-voltage release switch prevents accidental starting and enables insurance company approval for use in educational settings. Mechanical protection denies access to drive belts during operation, ensuring operator safety. The spindle centre to column measures 165mm, with 80mm spindle travel for controlled drilling depth. A mortise attachment is available separately (Model No. MA10) for extended functionality.

Features and Benefits:
• 16-speed range from 210-3340rpm for versatility across materials
• Adjustable preset depth control for accurate repetitive work
• No-voltage release switch and locking cover for enhanced safety
• MT2 Morse taper spindle accepts taper shank drill bits
• Meets safety directives with insurance approval for educational use
• Rack and pinion feed shaft for smooth, controlled operation

Specifications:
• Base Size: 420 x 250mm
• Brand: Sealey
• Collar Diameter: 60mm
• Column Diameter: 70mm
• Drilling Capacity (Chuck Size): 16mm
• Maximum Distance Spindle to Base: 600mm
• Maximum Distance Spindle to Table: 410mm
• Motor Power (Start): 350W(550W)
• Nett Weight: 47kg
• Number of Speeds: 16
• Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
• Overall Height: 960mm
• Speed Range: 210-3340rpm
• Spindle Centre to Column: 165mm
• Spindle Nose Taper: MT2
• Spindle Travel: 80mm
• Supply: 230V
• Swing: 330mm
• Working Base Surface Size: 210 x 190mm
• Working Table Surface Size: Ø310mm
• Model No. GDM120B
