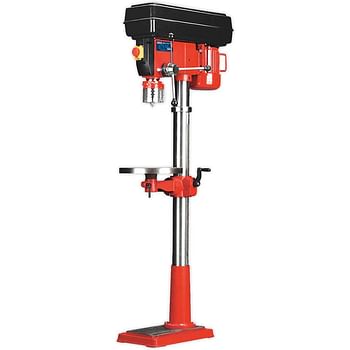

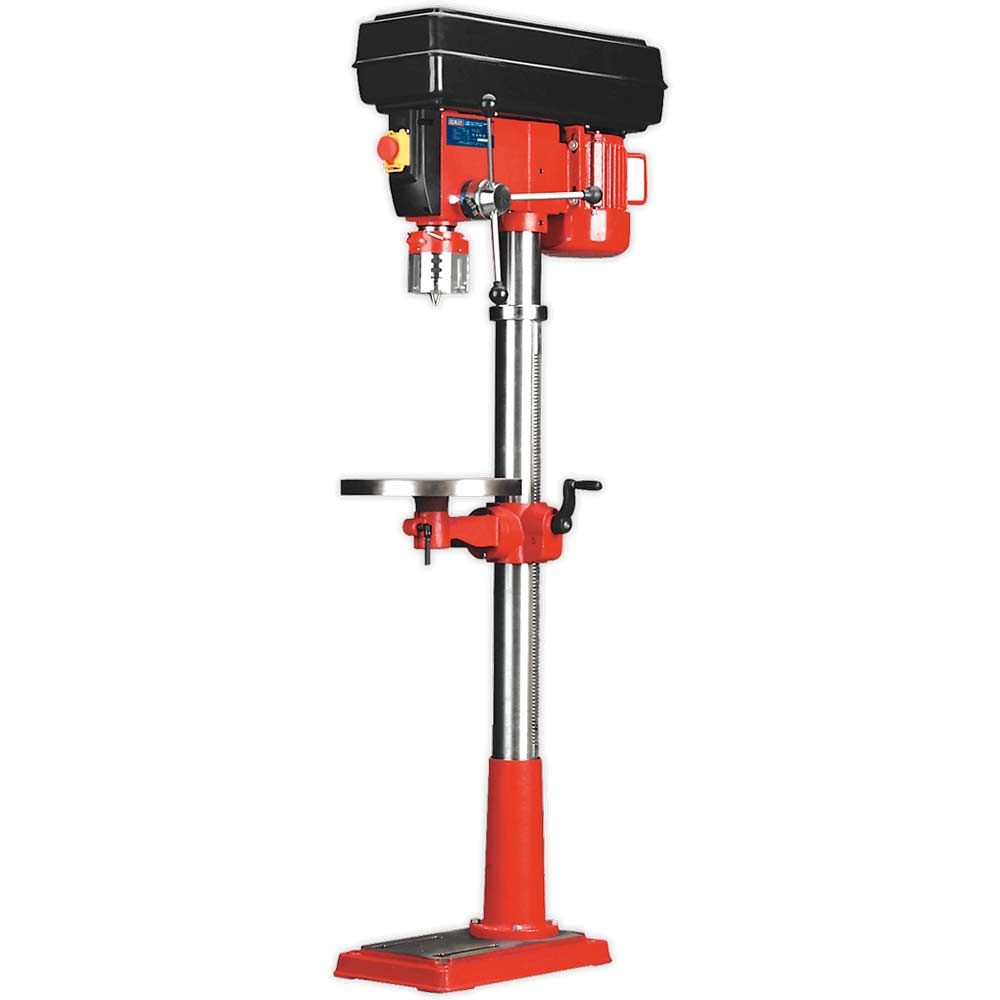

Sealey GDM200F/VS Floor Standing Pillar Drill

The Sealey GDM200F/VS is a floor standing pillar drill with variable speed control, designed for precision drilling applications in workshops and educational facilities. This model delivers stepless speed adjustment between 150-2300rpm, allowing operators to fine-tune drilling speeds for optimal finish and tolerance control across different materials and bit sizes.

The variable speed mechanism uses an innovative belt transmission system with two spring-tensioned cone pulleys. Speed adjustment is achieved by moving a centre idle pulley with a dedicated control lever, which alters the pulley diameters to provide smooth, continuous speed variation without the stepped changes of traditional multi-speed drills. This makes the drill particularly suitable for metalwork, plastics, and composite materials where precise speed control is essential.

Safety features include a no-volt release switch and locking cover to prevent accidental starting, meeting the requirements for insurance company approval in educational establishments. The 16mm capacity chuck features a No. 2 Morse taper, with a spindle centre to column distance of 178mm and 80mm spindle travel. The drill is supplied with a chuck guard and can be fitted with an optional mortise attachment (Model No. MA10) for woodworking applications.

With a substantial 71kg weight and 1630mm overall height, this floor-standing model provides the stability required for accurate drilling operations. The 450W motor (650W start) and robust construction make it ideal for professional workshops, training facilities, and light industrial applications.

Features and Benefits:
• Stepless variable speed control for precise adjustment between 150-2300rpm
• No-volt release switch approved for educational establishment use
• Spring-tensioned cone pulley system for smooth speed changes
• 16mm chuck capacity with MT2 taper for versatile drilling applications
• Supplied with chuck guard for enhanced operator safety
• Compatible with optional mortise attachment for woodworking tasks

Specifications:
• Base Size: 460 x 275mm
• Brand: Sealey
• Collar Diameter: Ø60mm
• Column Diameter: Ø80mm
• Drilling Capacity (Chuck Size): 16mm
• Maximum Distance Spindle to Base: 1170mm
• Maximum Distance Spindle to Table: 730mm
• Motor Power (Start): 450W(650W)
• Nett Weight: 71kg
• Number of Speeds: Variable
• Optional Accessories: GDMX/KC - Keyless Pillar Drill Chuck 16mm
• Overall Height: 1630mm
• Speed Range: 150-2300rpm
• Spindle Centre to Column: 178mm
• Spindle Nose Taper: MT2
• Spindle Travel: 80mm
• Supply: 230V
• Swing: 356mm
• Working Base Surface Size: 200 x 220mm
• Working Table Surface Size: Ø310mm
