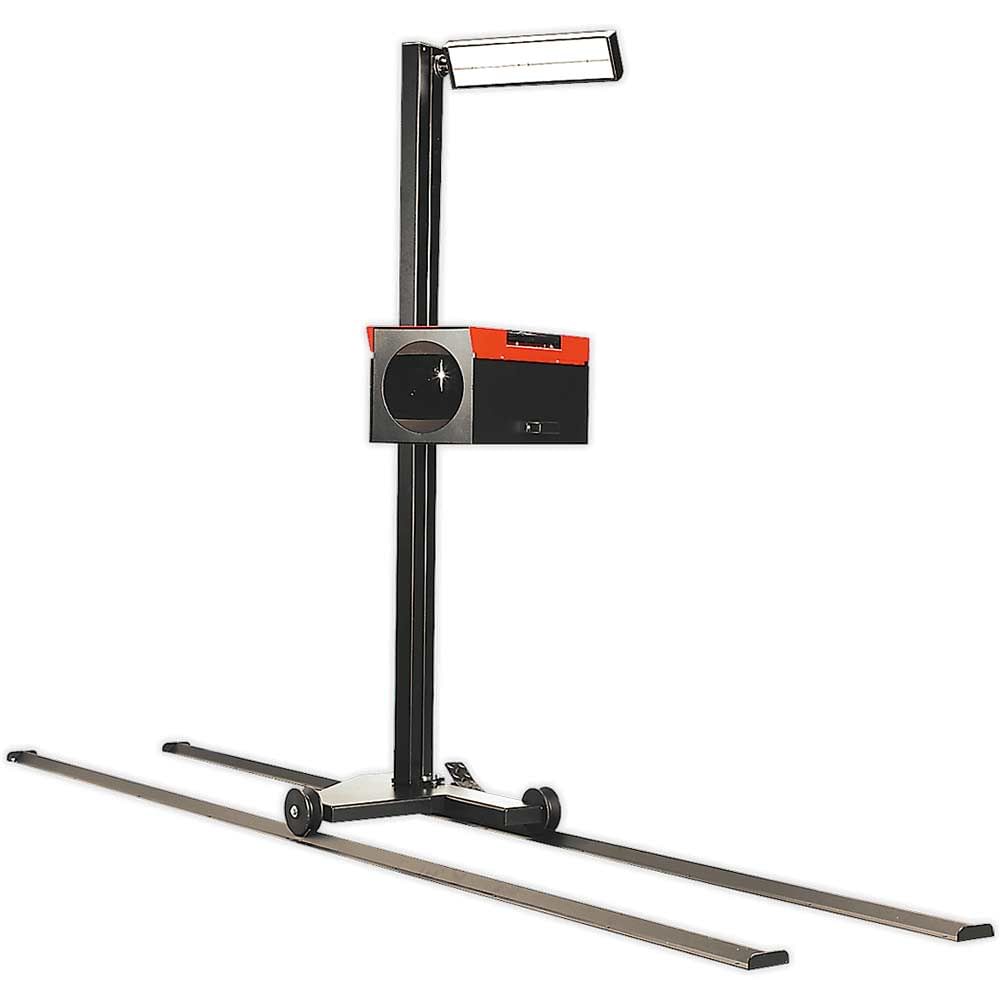

Sealey Headlamp Beam Setter and Rails

The Sealey Headlamp Beam Setter and Rails is a professional-grade testing equipment designed for MOT stations and vehicle workshops requiring DVSA-approved headlight alignment testing.

This comprehensive beam setter features a fixed aiming screen and an internal analogue LUX meter for precise light intensity measurement, ensuring accurate compliance testing. The unit is certified for use across multiple vehicle classes (I, II, III, IV, V, VII), making it suitable for testing motorcycles, cars and light commercial vehicles in professional testing stations.

Supplied complete with 2970mm rails for MOT use, this system covers a wide height measurement range from 240mm to 1410mm, accommodating various vehicle types and sizes. The equipment comes with a DVSA certificate of approval and full instructions, providing the necessary documentation for compliant testing station operation. For larger workshops or extended testing bay configurations, optional extension rails are available (HBS97E - 1520mm and HBS97ES - 700mm) to customise the setup to your facility requirements.

Features and Benefits:
• DVSA approved for legal MOT testing station use
• Internal analogue LUX meter provides accurate light intensity readings
• Fixed aiming screen ensures consistent beam alignment testing
• Wide height range (240mm-1410mm) covers multiple vehicle types
• Complete with rails and certification documentation for immediate deployment

Specifications:
Brand: Sealey
Focal Length: 489mm
Height: 1750mm
Length: 690mm
Max. Height Beam Measurement: 1410mm
Min. Height Beam Measurement: 240mm
Nett Weight: 43.0kg
Optional Accessories: HBS97E - 1520mm Extension Rail, HBS97ES - 700mm Extension Rail
Rail Length: 2970mm
Width: 660mm
