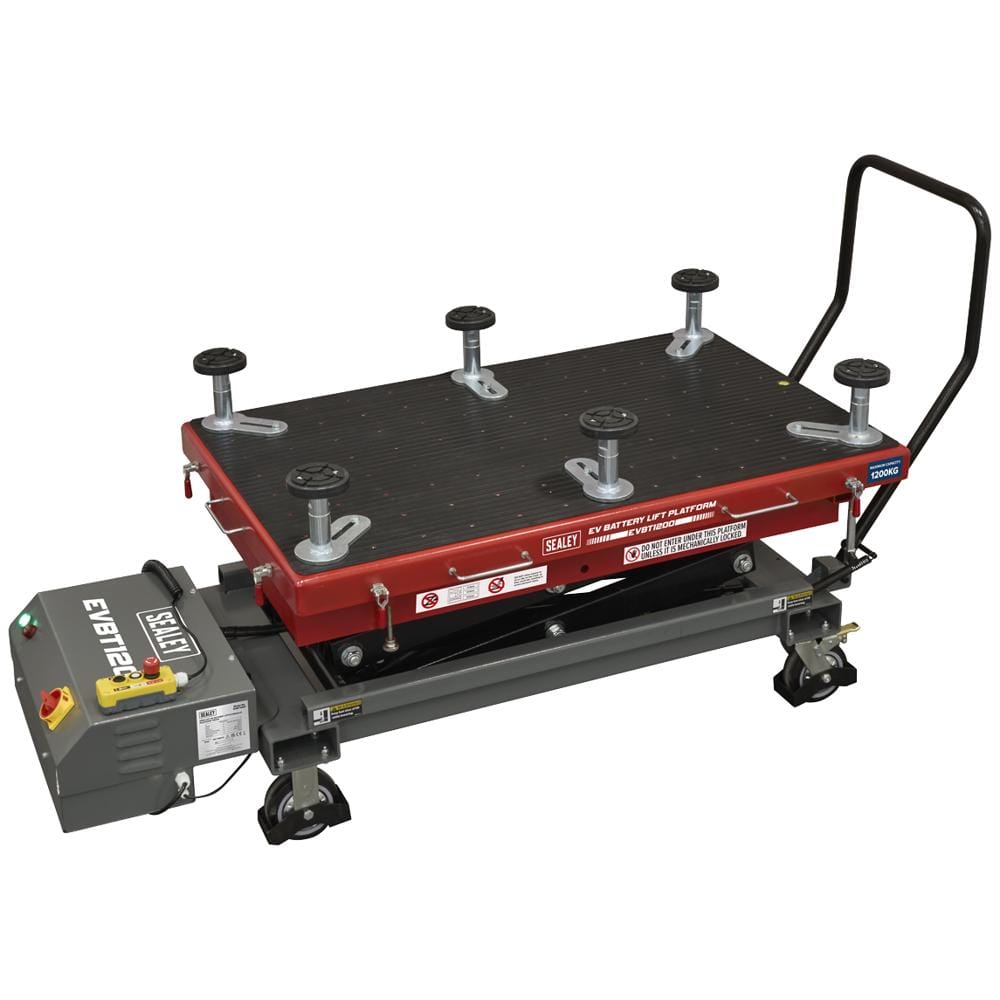

Sealey High Lift EV Battery Lift / Hydraulic Platform Truck

The Sealey High Lift EV Battery Lift is a professional-grade hydraulic platform truck designed specifically for electric vehicle battery maintenance and heavy workshop lifting tasks. With an impressive 1200kg capacity and maximum platform height of 1780mm, this heavy-duty unit provides the elevation and stability required for safe EV battery removal and installation across a wide range of electric vehicles.

Built with a solid steel framework, the EVBT1200 features a powerful electric motor that delivers smooth, controlled ascent and descent via a hand control with integrated safety stop feature. The platform dimensions of 1340mm x 820mm, combined with multiple table and saddle adjustments, accommodate most EV battery configurations. The 220V single-phase power supply (8A full-load current) includes a generous 5m cable length for workshop flexibility.

Mounted on four composite wheels—two fixed and two locking castors—this platform truck rolls easily over rough workshop floors whilst maintaining stability during operation. Beyond EV battery work, it proves invaluable for everyday workshop tasks including engine removal and installation, transmission work, fuel tank servicing, subframe maintenance, and can function as a mobile service bench.

Features and Benefits:
• High lift capability to 1780mm for optimal access to EV battery compartments
• 1200kg capacity handles heavy electric vehicle batteries and major components
• Electric-powered hydraulic system eliminates manual pumping effort
• Multiple adjustments accommodate different vehicle battery configurations
• Dual-purpose design serves EV maintenance and general workshop lifting tasks
• Locking castors provide secure positioning during critical operations

Specifications:
Brand: Sealey
Capacity: 1200kg
Maximum Platform Height: 1780mm
Minimum Platform Height: 650mm
Nett Weight: 460kg
Platform Length: 1340mm
Platform Width: 820mm
Rated Voltage: 220V
Number of Phase: Single Phase
Frequency: 50Hz
Full-Load Current: 8A
Cable Length: 5m
Wheel Bore Size: Ø12mm
Wheel Size: Ø150mm
