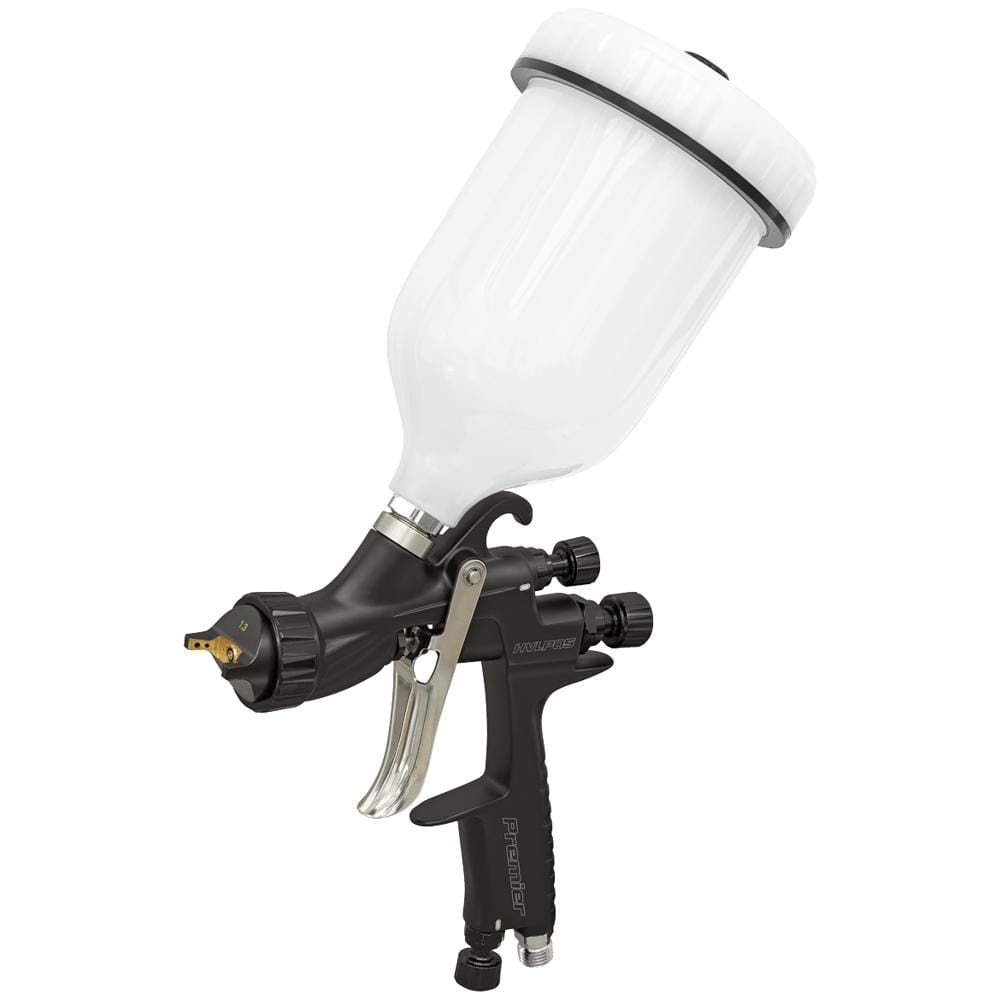

Sealey HVLP05 Gravity Feed Spray Gun

The Sealey HVLP05 is a professional gravity feed spray gun designed for applying clear and base coats with precision and consistency. This HVLP (High Volume Low Pressure) spray gun features precision engineering that delivers controlled application whilst minimising overspray and material waste, making it ideal for automotive refinishing and professional paint applications.

Built with durability in mind, the HVLP05 features stainless steel fluid passages, needle, nozzle, air cap and air valve, ensuring long-lasting performance with both solvent and water-based paints. The innovative no rubber O-ring design uses non-perishable materials that resist solvent degradation, extending service life in demanding workshop environments.

Adjustable air and paint flow controls allow fine-tuning of the spray pattern up to a maximum width of 280mm, giving operators precise control for different coating requirements. The 600ml gravity-fed pot provides ample capacity for extended spraying sessions whilst maintaining excellent balance and manoeuvrability. With ATEX approval, this spray gun is certified safe for use in explosive atmospheres where ignition sources must be eliminated.

The standard 1.3mm set-up is supplied, with optional 1.2mm (Model No. HVLP05-S1.2) and 1.4mm (Model No. HVLP05-S1.4) configurations available for different material viscosities and application requirements.

Features and Benefits:
• HVLP technology reduces overspray and material consumption
• Stainless steel construction suitable for solvent and water-based materials
• No rubber O-ring design for superior solvent resistance and longevity
• Adjustable controls for precise spray pattern adjustment up to 280mm
• ATEX approved for safe use in explosive atmospheres
• Lightweight 0.62kg design reduces operator fatigue

Specifications:
Air Consumption: 14.12cfm
Available Set-Up(s): 1.2,1.4mm
Brand: Premier
Nett Weight: 0.62kg
Pot Capacity: 600ml
Recommended Air Pressure: 29-32psi
Standard Set-Up: 1.3mm
