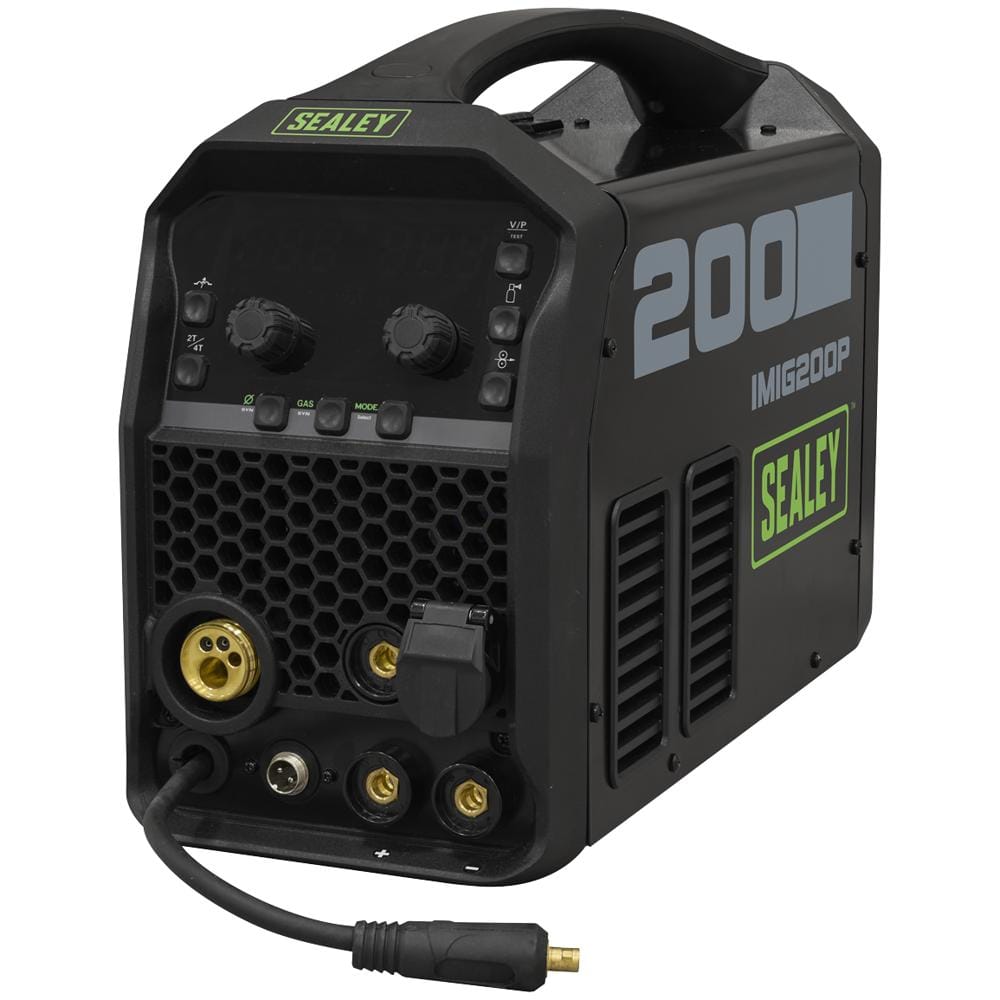

Sealey IMIG200P Multi Process Inverter Welder and Plasma Cutter

The Sealey IMIG200P is a multi-process inverter welder and plasma cutter capable of MIG, TIG, MMA/ARC welding up to 200A and plasma cutting at up to 40A from a standard 230V supply.

Built around IGBT inverter technology, this versatile machine handles both gas and gasless MIG welding using solid wire (Ø0.6–1mm) and flux-cored wire (Ø0.8–1mm) with a 5kg wire capacity. Electrode capacity ranges from 1.6–5mm, making it suitable for a broad range of MMA/ARC applications.

The integrated plasma cutter delivers clean cuts up to 8mm and a maximum cutting capacity of 12mm at 87psi, making it well suited to fabrication, bodywork, and general metalwork tasks where both welding and cutting are required on the same job.

Precision during longer welds is supported by a 2T/4T torch trigger function, and an easy-to-read digital amp and voltmeter display allows quick, accurate parameter monitoring. Protective features include hot start, anti-stick, forced air cooling, and thermal cut-out protection to help maintain reliable performance during extended use.

The unit ships with a comprehensive accessory set including a 1.5m earth clamp, 2m electrode holder, 3m MIG torch, and 4m cutting torch — providing everything needed to get started across all four processes.

Features and Benefits:
• Multi-process capability — MIG, TIG, MMA/ARC welding and plasma cutting in a single unit
• Gas and gasless MIG welding for flexible use with or without shielding gas
• Compatible with solid wire Ø0.6–1mm and flux-cored wire Ø0.8–1mm
• Plasma cutting up to 12mm maximum and 8mm clean cut capacity
• 2T/4T torch trigger function for greater control during longer welds
• Digital amp and voltmeter display for accurate, real-time parameter monitoring
• Hot start and anti-stick functions for easier arc starting and smoother operation
• Forced air cooling and thermal cut-out protection for sustained reliability
• Supplied with earth clamp, electrode holder, MIG torch, and cutting torch

Specifications:
Model No: IMIG200P
Brand: Sealey
Welding Current: 20–200A
Plasma Output: 15–40A
Duty Cycle: MIG 20% @ 200A, TIG 20% @ 200A, MMA 20% @ 200A
Wire Capacity: 5kg
Electrode Capacity: 1.6–5mm
Absorbed Power: 9.5kW
Supply: 230V
Plug Type: Bare Wire
Power Supply Cable Length: 2m
IP Rating: IP21S
Air Pressure: 87psi
Max. Cutting Thickness: 12mm
Clean Cutting Thickness: 8mm
Nett Weight: 11.1kg
Weight: 14.6kg
