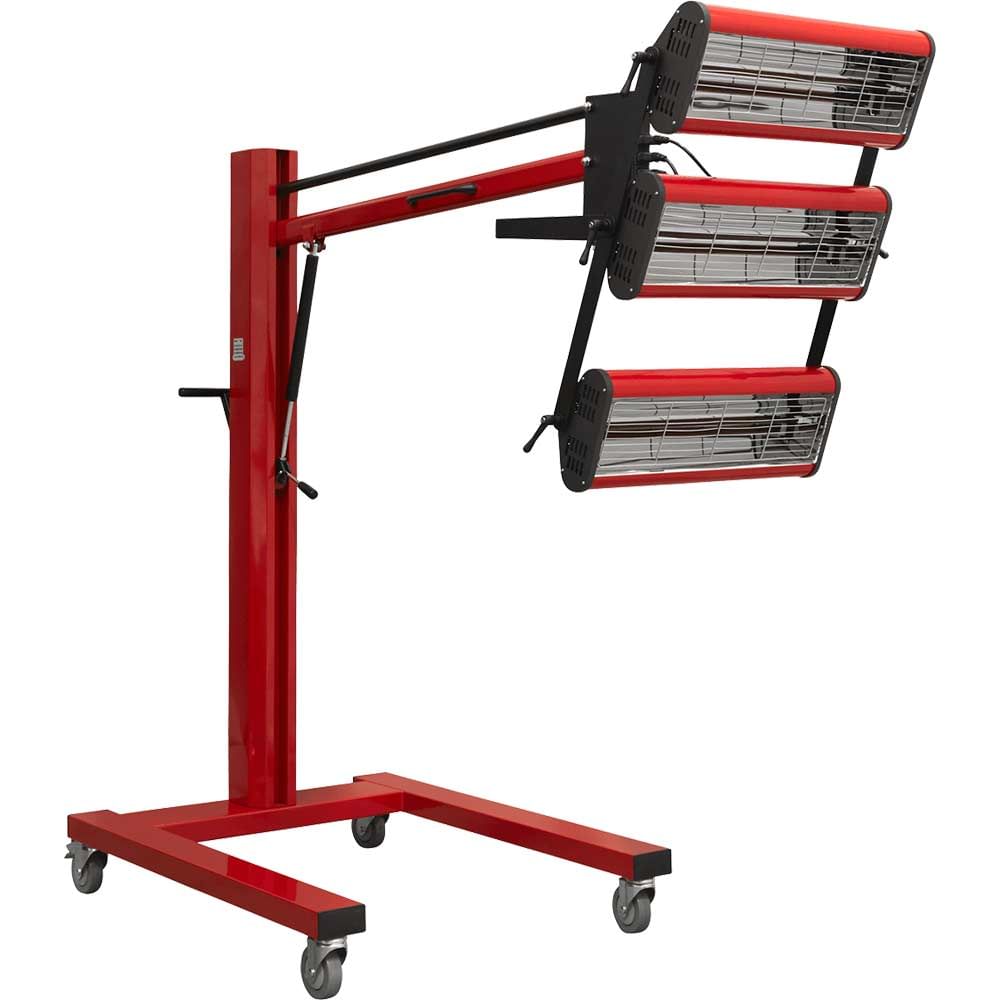

Sealey IR3000S Infrared Short Wave Panel Dryer

The Sealey IR3000S is a professional short wave infrared panel dryer designed specifically for accelerating the drying of water-based paints in automotive repair and refinishing applications. This mobile drying system features three 1050W infrared heating elements that deliver a combined 3150W of targeted short wave heat, making it ideal for body shops and paint workshops seeking efficient paint curing solutions.

Built for workshop versatility, this panel dryer is mounted on four swivel castors, with two featuring brakes to ensure stable positioning around vehicles. The flexible lamp system allows each heating element to be individually adjusted and locked in position, enabling precise coverage around vehicle contours and panel profiles. Height adjustment is managed through a gas strut mechanism that provides near-weightless movement of the support arm, allowing operators to position the unit effortlessly at the optimal working height.

The integrated timer function offers precise control over drying cycles, with a range of 0-30 minutes, automatically switching off the lamps once the set time has elapsed. The unit covers an optimal baking area of 1 x 0.8m and operates at temperatures between 40-70°C, providing controlled heat distribution across larger panel sections. At 39kg, this robust unit delivers professional performance whilst remaining manoeuvrable around the workshop.

Features and Benefits:
• Short wave infrared technology optimised for water-based paint systems
• Individual lamp adjustment for precise coverage around vehicle contours
• Built-in 30-minute timer for automated operation
• Gas strut height adjustment for effortless positioning
• Mobile castor design with braking system for workshop manoeuvrability

Specifications:
Brand: Sealey
Element Power: 3150W
Nett Weight: 39kg
Number of Elements: 3 x 1050W
Reflector Size: 530 x 140mm
Supply: 230V ~ 50Hz 16A
Optimal Baking Area: 1 x 0.8m
Operating Temperature (°C): 40-70°C
Timer Range: 0-30mins
