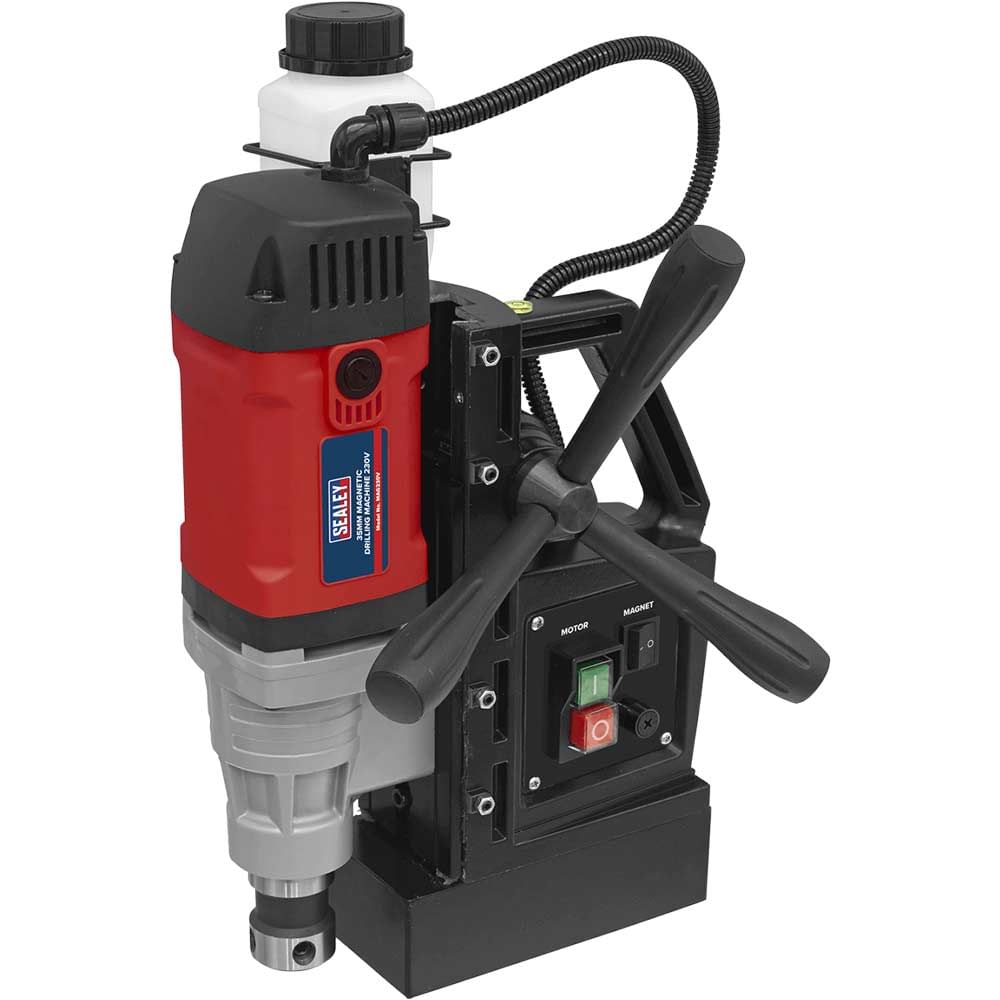

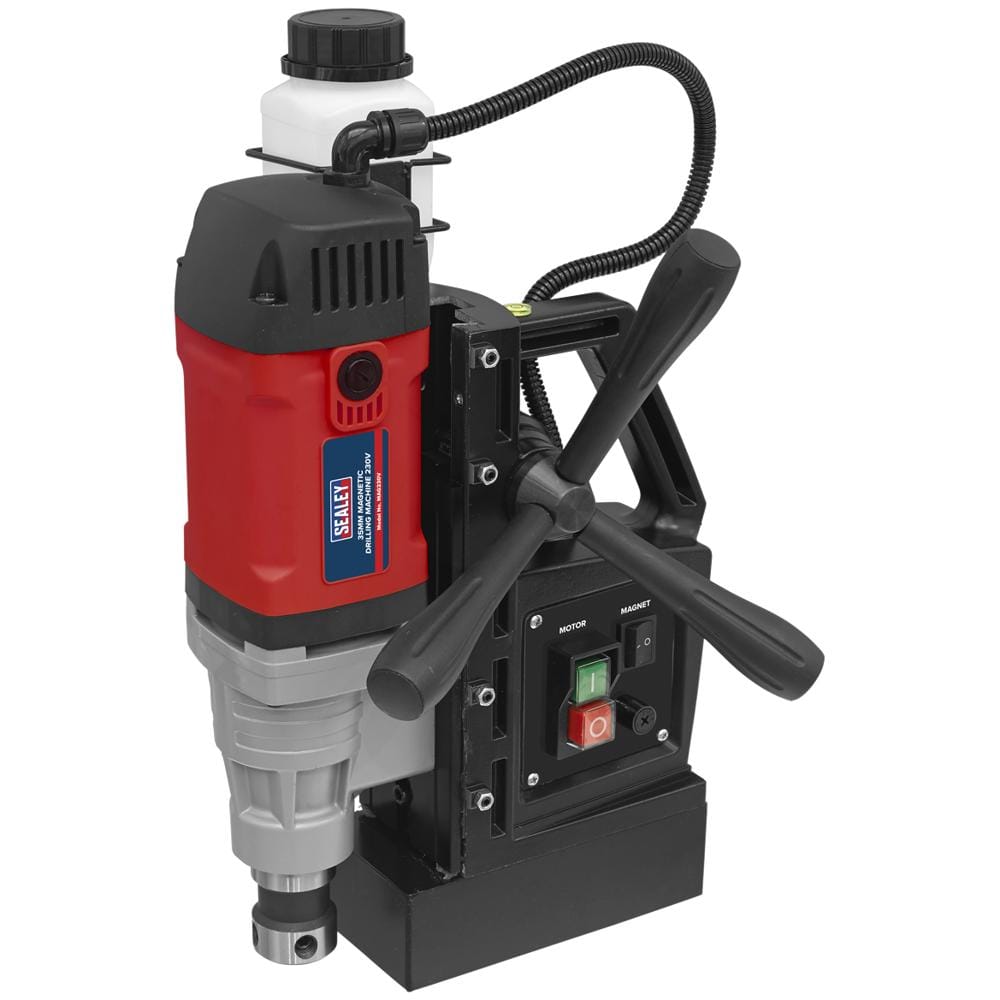

Sealey MAG230V Magnetic Drill

The Sealey MAG230V is a professional-grade magnetic drill designed for precision drilling in ferrous metal across fabrication, construction and industrial applications. Built from lightweight yet durable die-cast magnesium alloy, this compact unit combines portability with robust performance for demanding metalworking tasks.

Powered by a 1500W motor delivering 800rpm no-load speed, the drill generates an impressive 14000N of magnetic adhesion to ensure secure positioning at any angle during operation. The powerful magnet keeps the unit firmly attached to the workpiece, whilst the included safety fixing strap provides additional security for overhead and angled drilling applications.

Equipped with a 10mm twist drill chuck, the MAG230V accommodates annular cutters up to Ø35mm diameter with a maximum cutting depth of 50mm. The integrated coolant system extends cutter life and improves cut quality by dissipating heat during operation, making this an ideal choice for high-volume drilling tasks in steel fabrication workshops, structural steelwork and maintenance applications where clean, accurate holes in ferrous metal are required.

Features and Benefits:
• Die-cast magnesium alloy construction balances strength with portability at just 10kg
• 14000N magnetic adhesion ensures secure operation at any drilling angle
• Integrated coolant system extends cutter life and improves cut quality
• Safety fixing strap included for additional security during operation
• 2.5m cable provides good working radius from power source

Specifications:
Brand: Sealey
Cable Length: 2.5m
Magnet Adhesion: 14000N
Maximum Annular Cutter Capacity: Ø35mm
Maximum Cutter Depth: 50mm
Motor Power: 1500W
Nett Weight: 10kg
No-Load Speed: 800rpm
Supply: 230V~50Hz
