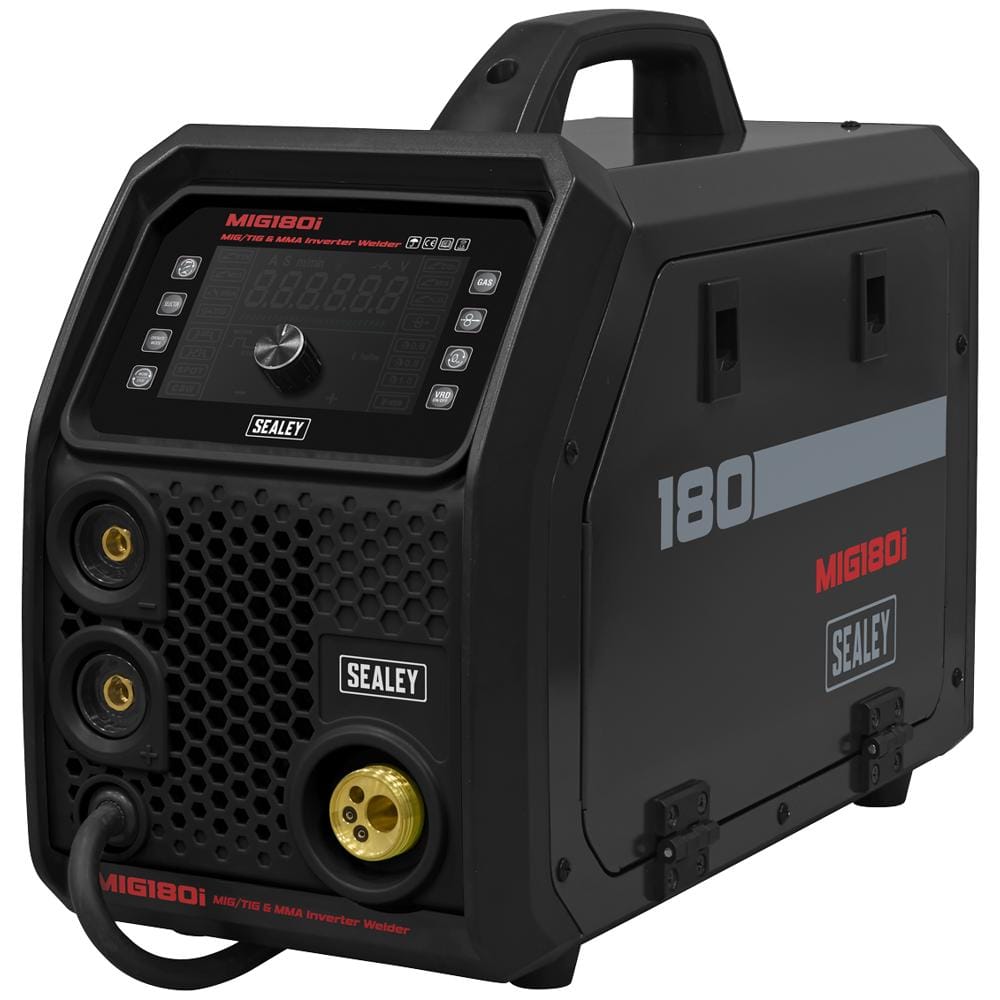

Sealey MIG180i 180Amp MIG / TIG / MMA Inverter Welder

The Sealey MIG180i is a 180Amp MIG/TIG/MMA inverter welder designed for portable multi-process welding up to 180A. It uses an IGBT inverter, fan-cooled DC power supply, and an LCD display shows welding parameters in real time for precise control. At just 12kg with a carry handle, it is easy to take to the job.

For MIG welding, the unit accepts 5kg reels of Ø0.8, Ø0.9 or Ø1mm solid wire as well as flux cored MIG wire. It runs on CO2, argon or CO2/argon mix gas. For MMA/ARC welding, it handles electrodes from Ø1.6mm up to Ø4mm. Duty cycles are 60% at 180A for MIG and 60% at 170A for both TIG and MMA.

Hot start and anti-stick help with arc striking, while forced air cooling and thermal cut-out protection help guard the machine during use. It comes with a fixed non-live 2.8m MIG torch, a 1.4m earth cable and clamp, and a 1.6m electrode holder. It runs from a 230V supply with a bare wire power cable.

Features and Benefits:
• Three welding processes (MIG, TIG and MMA/ARC) in one inverter unit
• LCD display for real-time monitoring of welding parameters
• Lightweight 12kg build with carry handle for easy transport
• Hot start and anti-stick for smoother arc starts
• Forced air cooling and thermal cut-out protection
• Accepts solid and flux cored MIG wire on 5kg reels
• Supplied with MIG torch, earth cable/clamp and electrode holder

Specifications:
Model No: MIG180i
Brand: Sealey
Supply: 230V
Absorbed Power: 6.5kva
Welding Current: 50-180A
Duty Cycle MIG: 180A @ 60%, 140A @ 100%
Duty Cycle TIG: 170A @ 60%, 132A @ 100%
Duty Cycle MMA: 170A @ 60%, 132A @ 100%
Wire Capacity: 5kg
Wire Diameter: Ø0.8mm, Ø0.9mm, Ø1mm
Electrode Capacity: Ø1.6mm up to Ø4mm
Gas Type: CO2, Argon, CO2/Argon Mix
MIG Torch Length: 2.8m
Earth Cable Length: 1.4m
Electrode Holder Cable Length: 1.6m
Power Supply Cable Length: 2m
Plug Type: Bare Wire
IP Rating: IP21
Nett Weight: 12kg
Weight: 13.2kg
