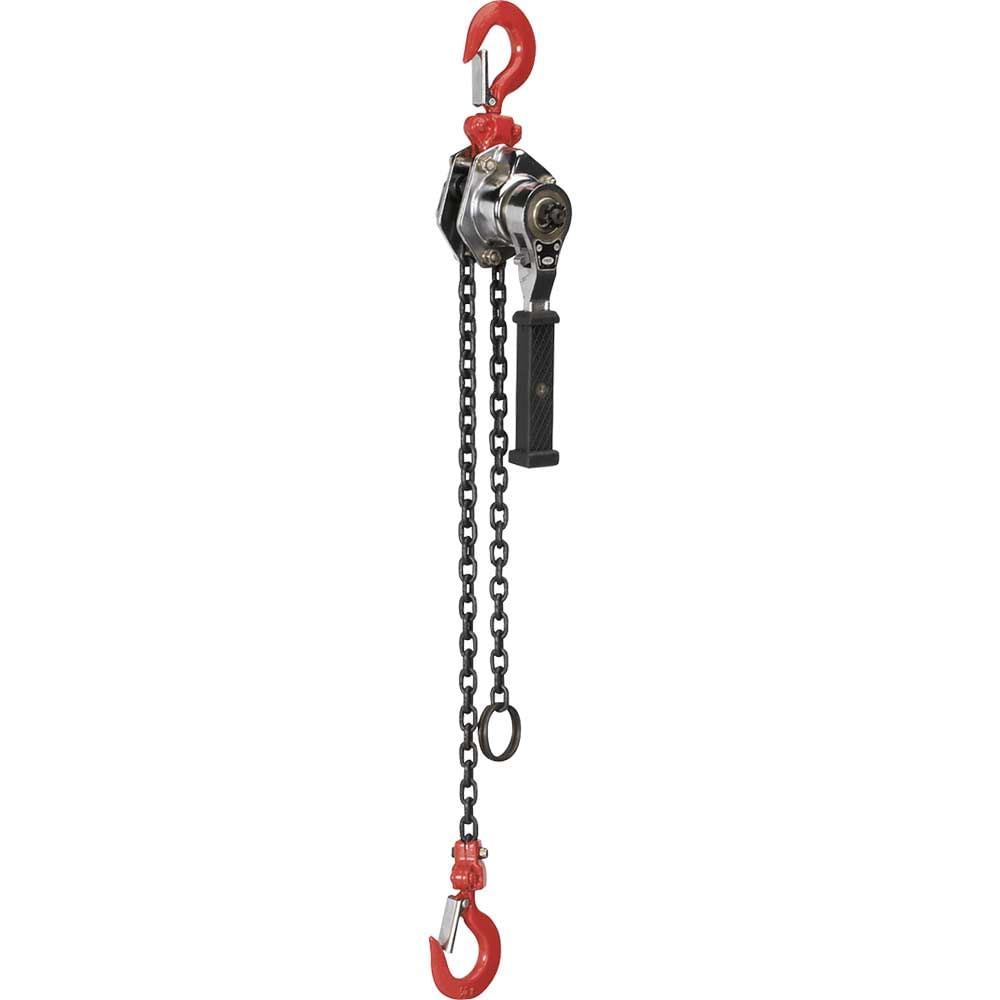

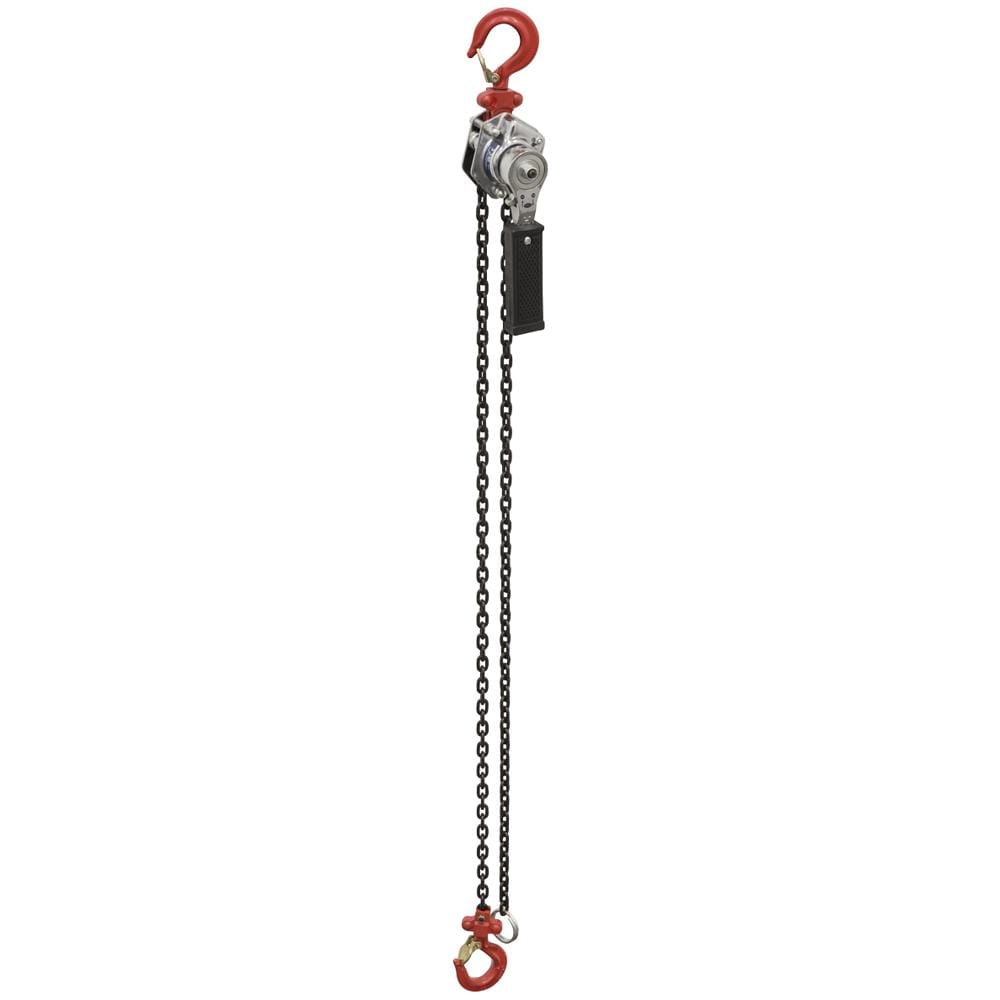

Sealey Mini Lever Chain Hoist

The Sealey Mini Lever Chain Hoist is a compact horizontal pulling device designed for use in confined working spaces where a full-size chain hoist cannot be deployed. Ideal for vehicle body shops, machinery installation, and tight workshop applications, this 250kg capacity lever hoist combines portability with professional performance.

Weighing just 2kg with compact 85 x 92mm dimensions, this mini lever hoist features a drop-forged and heat treated pinion gear housed within a totally enclosed mechanism for protection against debris and wear. The 360° rotating hooks are fitted with safety latches to prevent accidental load release, whilst the free-chaining feature allows tradespeople to take up slack in the 1m load chain by hand before engaging the ratchet arm for precise load positioning.

The 150mm lever requires just 235N of pull force to lift the full 250kg capacity, providing excellent mechanical advantage for horizontal pulling tasks. With a minimal 240mm headroom requirement and 60mm operating clearance, this lever chain hoist is particularly suited to automotive repair work, equipment positioning, and confined space applications where standard hoisting equipment cannot be accommodated.

Please note: This unit is designed for horizontal pull applications only and must not be used for overhead lifting operations.

Features and Benefits:
• Compact 2kg design ideal for confined working conditions
• Drop-forged and heat treated pinion gear for durability
• 360° rotating hooks with safety latches for secure load handling
• Free-chaining feature for quick slack removal and precise control
• Totally enclosed mechanism protects against contamination
• Low 235N lever pull required for full 250kg capacity

Specifications:
Brand: Sealey
Capacity: 250kg
Chain Falls: 1
Chain Length: 1m
Head Room: 240mm
Hook Aperture: 14mm
Lever Length: 150mm
Load Chain Diameter: Ø4mm
Maximum Hook Capacity Ø: 28mm
Nett Weight: 2kg
Operating Clearance: 60mm
Pull on Lever to Lift Full Load: 235N
Size (W x D): 85 x 92mm
Test Load: 375kg
