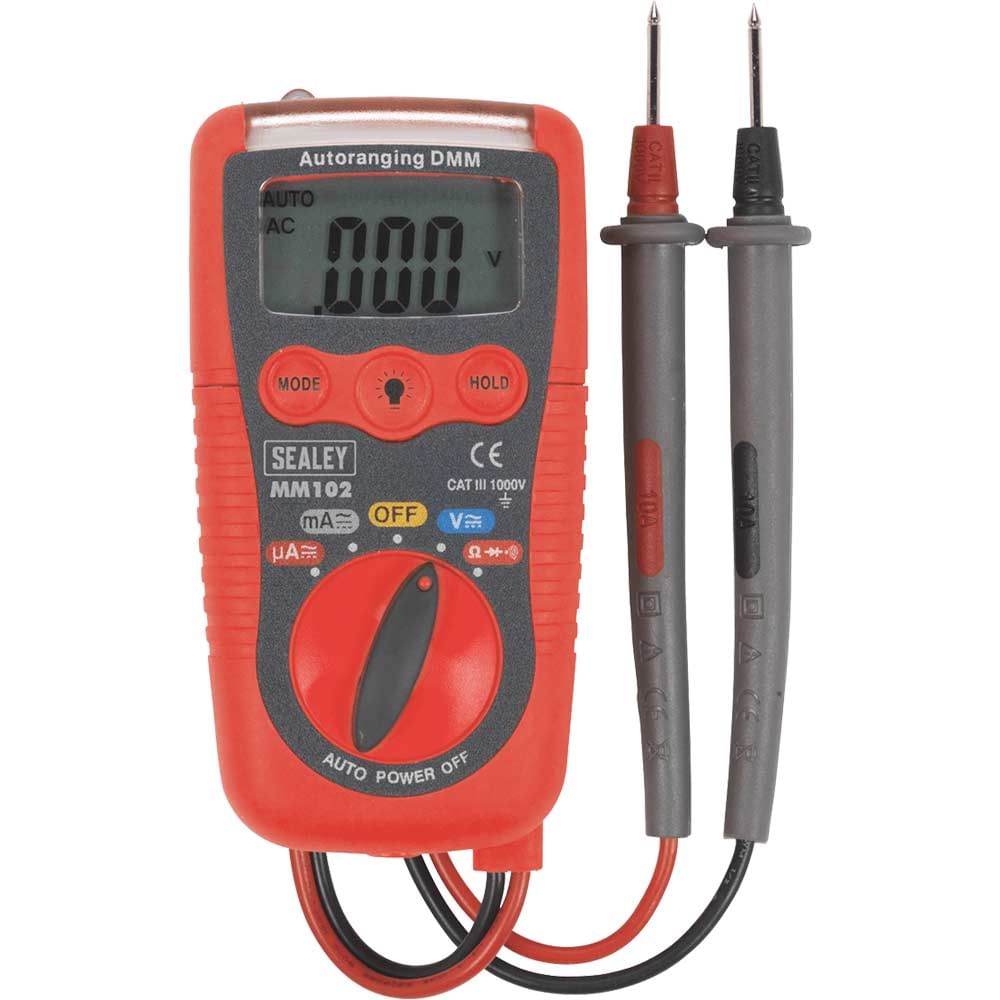

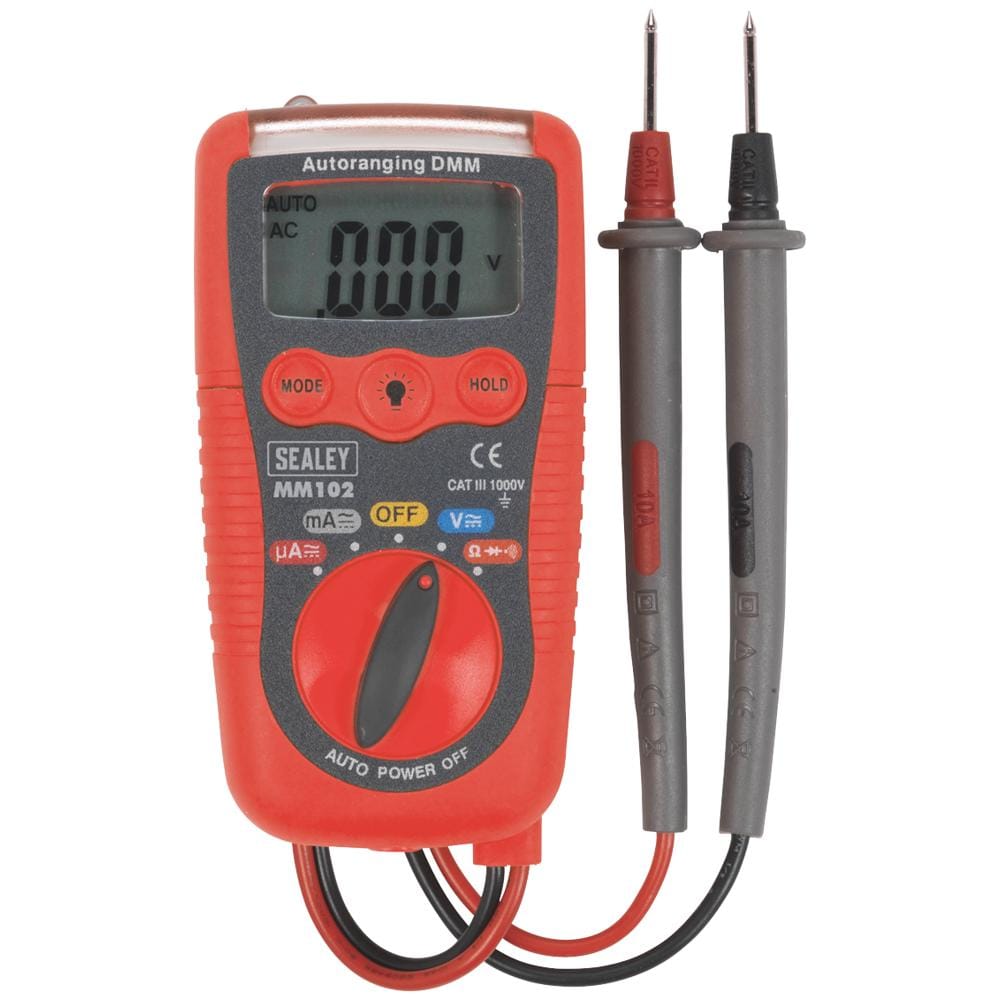

Sealey MM102 Professional Auto Ranging Digital Multimeter

The Sealey MM102 is a professional auto-ranging digital multimeter designed for accurate electrical testing and diagnostics. This lightweight testing instrument features double-moulded plastic housing for durability and a clear 2000 counts LCD display with 14mm digit height for easy reading in various working conditions.

With its auto-ranging capability, the MM102 simplifies electrical measurements by automatically selecting the appropriate range for AC and DC voltage, AC and DC current, and resistance testing. The multimeter measures voltages up to 600V and includes essential testing functions such as continuity testing with audible alert, diode testing, and data-hold functionality for recording measurements.

A standout feature is the integrated non-contact voltage detection (NCVD) for detecting AC voltages between 100V and 600V without direct contact, enhancing safety during preliminary checks. The forward-facing worklight illuminates the testing area, proving particularly useful when working in poorly lit spaces such as consumer units, under-floor areas, or cramped installations.

Conforming to EN 61010-1 CAT IV 600V safety standard, this multimeter is suitable for professional electricians, maintenance engineers, and electrical contractors requiring reliable diagnostic equipment. At just 160g and measuring 105 x 57 x 34mm, the MM102 is highly portable and includes a low battery indicator to prevent unexpected downtime.

Features and Benefits:
• Auto-ranging functionality eliminates manual range selection for faster testing
• Non-contact voltage detection provides safer preliminary voltage checks
• Forward-facing worklight illuminates work area in low-light conditions
• Data-hold function allows measurement recording for documentation
• Audible continuity testing enables hands-free circuit verification
• CAT IV 600V rating ensures safe use in demanding electrical environments
• Compact, lightweight design at 160g for easy portability

Specifications:
Brand: Sealey
Nett Weight: 160g
AC Voltage (Accuracy): 2V, 20V (±1%), 200V, 600V (±2.3%)
DC Voltage (Accuracy): 200mV (±0.5% + 3-digits), 2V, 20V, 200V, 600V (±1.2%)
AC Current (Accuracy): 200µA, 2000µA, 20mA, 200mA (±2.5%)
DC Current (Accuracy): 200µA, 2000µA, 20mA, 200mA (±2%)
Resistance (Accuracy): 200O (±0.8% + 5-digits), 2KO, 20KO, 200KO (±1.2%), 2MO (±5%), 20MO (±10%)
Capacitance (Accuracy): No
Frequency (Accuracy): No
Duty Cycle: No
Continuity Audible: Yes
Diode Test: Yes
Transistor Test: No
Hi-Impact Case: No
Digits x Height: 4 x 14mm
Low Battery Indicator: Yes
Battery (Supplied): 2 x 1.5V
Size (L x W x D): 105 x 57 x 34mm
Weight: 160g
Conformity: EN61010-1
Non-Contact Voltage Detection VAC: 100V - 600V
