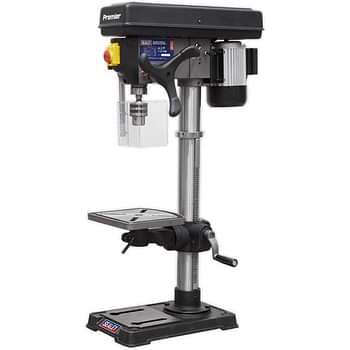

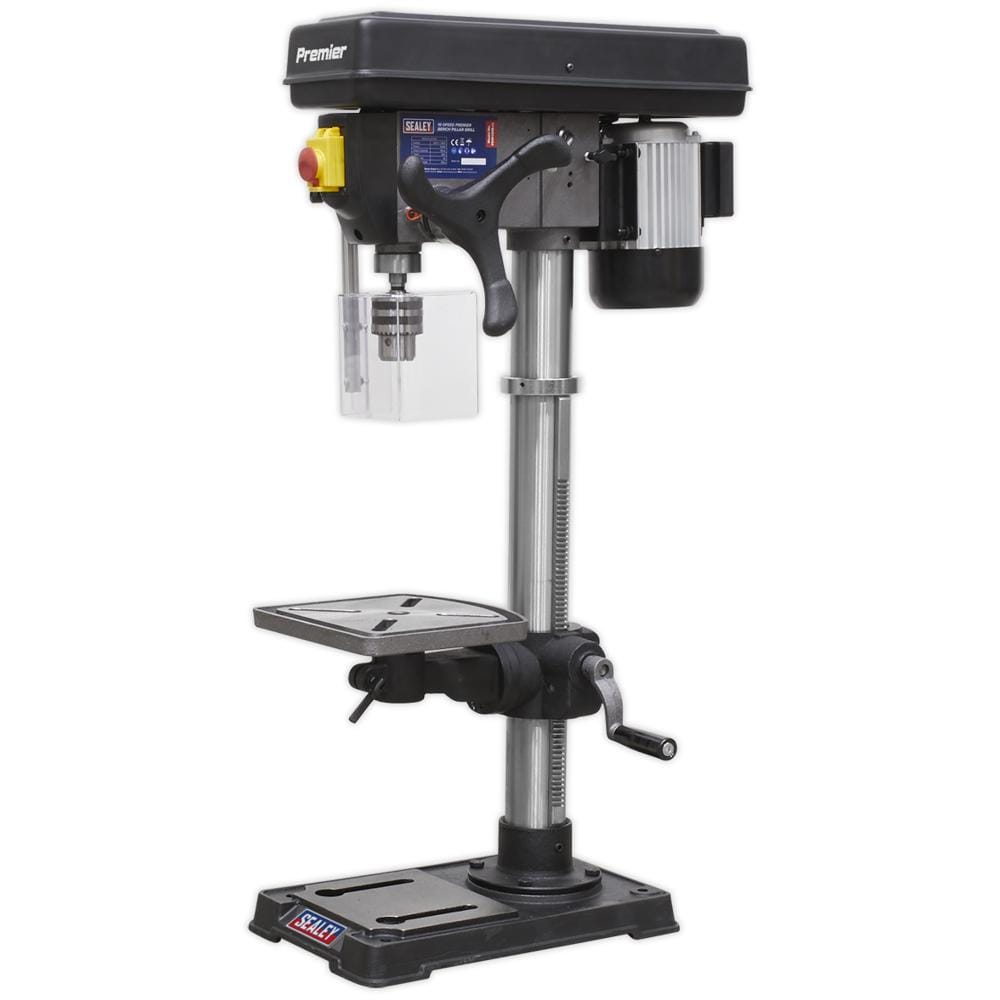

Sealey PDM125B 16 Speed Bench Pillar Drill

The Sealey PDM125B is a 16-speed bench pillar drill designed for professional workshop applications, offering precise drilling operations with comprehensive safety features. Part of Sealey's Premier range, this bench-mounted pillar drill delivers reliable performance for engineering workshops, fabrication shops, and maintenance facilities requiring accurate metalworking capabilities.

Featuring a high-torque aluminium-bodied induction motor, this pillar drill provides 16 speed settings spanning 190-3000rpm, enabling operators to match drilling speeds precisely to material types and bit sizes. The substantial 165mm spindle centre to column distance and 330mm swing capacity accommodate a wide range of workpiece sizes, whilst the 80mm spindle travel and MT2 taper spindle nose with 16mm chuck capacity handle demanding drilling tasks with precision.

Safety has been engineered throughout this professional-grade machine. The no-volt release switch prevents inadvertent start-up after power interruptions, whilst the pulley cover features a microswitch that prevents operation when open. An electrically interlocked chuck guard provides additional protection during drilling operations, meeting the safety requirements expected in commercial workshop environments.

The large 254 x 254mm square working table incorporates precision rack and pinion height adjustment for accurate workpiece positioning, with a maximum spindle to table distance of 485mm. The robust construction is reflected in the 45kg nett weight and substantial 450 x 270mm base, providing the stability essential for precision drilling operations. Backed by a 3-year guarantee, this 230V bench pillar drill represents dependable equipment for professional engineering and metalworking applications.

Features and Benefits:
• 16-speed range (190-3000rpm) for optimal drilling performance across different materials
• No-volt release switch and microswitch-protected pulley cover for enhanced operator safety
• Electrically interlocked chuck guard provides additional protection during operation
• Large 254 x 254mm square table with precision rack and pinion height adjustment
• Heavy-duty aluminium-bodied induction motor for long-term reliability
• 165mm spindle centre to column with 330mm swing for versatile workpiece capacity
• MT2 taper spindle nose with 16mm chuck capacity for secure bit retention
• 3-year guarantee providing peace of mind for professional users

Specifications:
• Base Size: 450 x 270mm
• Brand: Premier
• Collar Diameter: Ø55mm
• Column Diameter: Ø73mm
• Drilling Capacity (Chuck Size): 16mm
• Integral Work Light: No
• Maximum Distance Spindle to Base: 700mm
• Maximum Distance Spindle to Table: 485mm
• Motor Power (Start): 370W(600W)
• Nett Weight: 45kg
• Number of Speeds: 16
• Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm
• Overall Height: 1050mm
• Speed Range: 190-3000rpm
• Spindle Centre to Column: 165mm
• Spindle Nose Taper: MT2
• Spindle Travel: 80mm
• Supply: 230V
• Swing: 330mm
• Working Base Surface Size: 205 x 200mm
• Working Table Surface Size: 254 x 254mm
