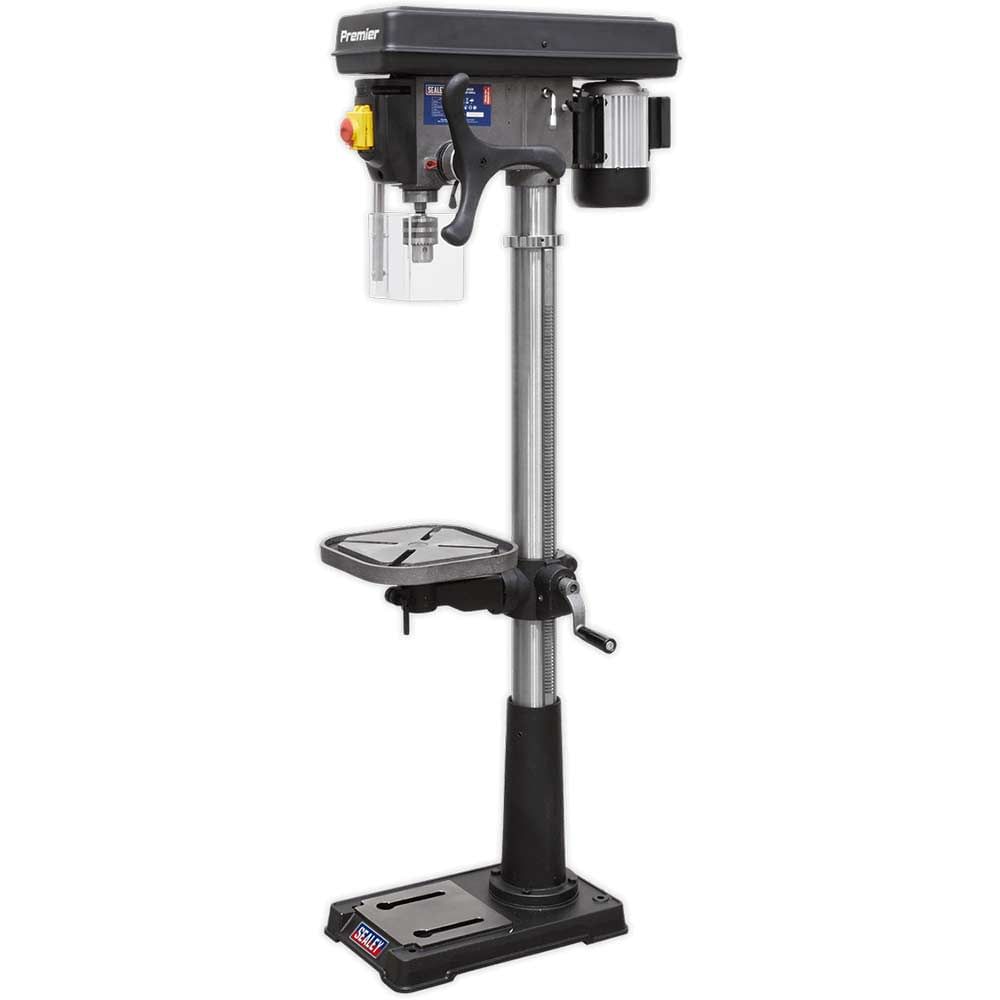

Sealey PDM210F 16 Speed Floor Pillar Drill

The Sealey PDM210F is a professional-grade floor standing pillar drill offering 16-speed versatility for demanding workshop applications. Built around a heavy-duty aluminium-bodied induction motor, this Premier model delivers reliable performance for metalworking, engineering, and fabrication tasks requiring precision drilling across a wide range of materials.

Safety features are comprehensive, including a no-volt release switch to prevent inadvertent start-up and a microswitch-protected pulley cover that disables operation when open. The electrically interlocked chuck guard provides additional operator protection during drilling operations. An integral work light illuminates the drilling table, giving clear visibility of the workpiece and drill position throughout the process.

The 16mm capacity chuck with MT2 taper accommodates a wide range of drill bit sizes, whilst the speed range of 190-3000rpm allows optimal cutting speeds for different materials. The large 290 x 290mm square working table features precision rack and pinion height adjustment for accurate positioning, with a maximum spindle-to-table distance of 725mm providing excellent clearance for larger workpieces.

With 190mm spindle centre to column distance and 380mm swing capacity, this floor pillar drill handles substantial drilling tasks in professional engineering and metalworking environments. The robust construction includes an 80mm diameter column and 62kg nett weight ensuring stability during operation, whilst the 80mm spindle travel provides adequate depth control for through-drilling and precision depth work.

Features and Benefits:
• 16-speed configuration (190-3000rpm) for optimal drilling across diverse materials
• No-volt release switch and microswitch-protected pulley cover for enhanced safety
• Electrically interlocked chuck guard protects operator during use
• Integral work light illuminates drilling area for improved accuracy
• Heavy-duty aluminium-bodied induction motor for long-term reliability
• Precision rack and pinion table adjustment for accurate workpiece positioning
• 16mm chuck capacity with MT2 taper for versatile bit compatibility
• 3 Year guarantee for professional peace of mind

Specifications:
• Base Size: 495 x 290mm
• Brand: Premier
• Collar Diameter: Ø60mm
• Column Diameter: Ø80mm
• Drilling Capacity (Chuck Size): 16mm
• Integral Work Light: Yes
• Maximum Distance Spindle to Base: 1225mm
• Maximum Distance Spindle to Table: 725mm
• Motor Power (Start): 370W(600W)
• Nett Weight: 62kg
• Number of Speeds: 16
• Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm
• Overall Height: 1610mm
• Speed Range: 190-3000rpm
• Spindle Centre to Column: 190mm
• Spindle Nose Taper: MT2
• Spindle Travel: 80mm
• Supply: 230V
• Swing: 380mm
• Working Base Surface Size: 205 x 200mm
• Working Table Surface Size: 290 x 290mm
• Model No. PDM210F
