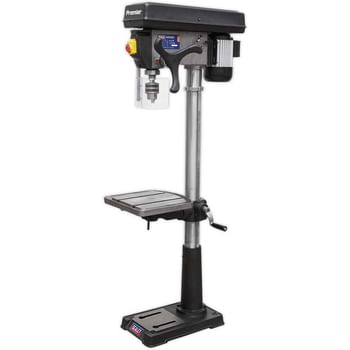

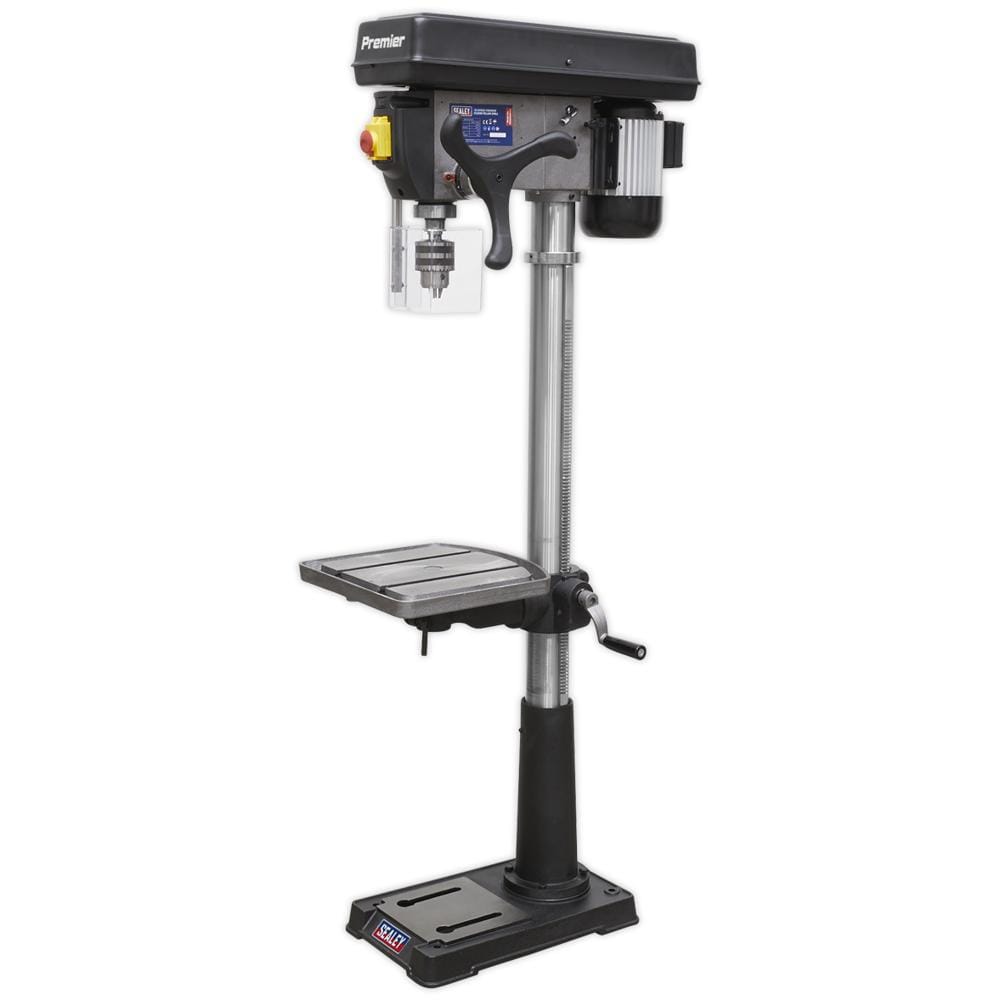

Sealey PDM240F 16 Speed Floor Pillar Drill

The Sealey PDM240F is a heavy-duty floor standing pillar drill designed for professional workshop environments requiring precision drilling across a wide range of materials. Part of the Premier range, this 16-speed pillar drill combines robust construction with essential safety features to deliver reliable performance for demanding trade applications.

Built around a high-torque aluminium-bodied induction motor rated at 750W (1000W start), this floor pillar drill offers exceptional versatility with 16 speed settings ranging from 160 to 3000rpm. The 20mm (3/4") capacity chuck with MT3 taper handles a comprehensive range of drilling operations, whilst the 216mm spindle centre to column distance and 80mm spindle travel provide excellent working capacity. The large 356 x 356mm square working table features precision rack and pinion height adjustment, allowing accurate positioning up to 720mm from the spindle.

Safety is prioritised throughout the design, with a no-volt release switch preventing inadvertent start-up and a microswitch-protected pulley cover that prevents operation when open. The electrically interlocked chuck guard provides additional operator protection during use. An integral work light illuminates the drilling table for enhanced visibility during precision work, whilst the substantial 76kg weight and 495 x 290mm base ensure exceptional stability even during heavy-duty drilling operations.

Ideal for engineering workshops, fabrication shops, and maintenance facilities where accuracy and power are essential, this pillar drill is supplied with a 3-year manufacturer guarantee, reflecting its professional-grade construction and reliability.

Features and Benefits:
• 16-speed range from 160-3000rpm for versatile material drilling
• No-volt release switch and microswitch-protected pulley cover for enhanced safety
• Electrically interlocked chuck guard provides operator protection
• Integral work light illuminates drilling table for improved visibility
• Large 356 x 356mm table with precision rack and pinion height adjustment
• Heavy-duty aluminium-bodied induction motor for long-term reliability
• Substantial 76kg construction ensures excellent stability during operation

Specifications:
• Base Size: 495 x 290mm
• Brand: Premier
• Collar Diameter: Ø75mm
• Column Diameter: Ø80mm
• Drilling Capacity (Chuck Size): 20mm
• Integral Work Light: Yes
• Maximum Distance Spindle to Base: 1230mm
• Maximum Distance Spindle to Table: 720mm
• Motor Power (Start): 750W(1000W)
• Nett Weight: 76kg
• Number of Speeds: 16
• Optional Accessories: PDM/KC - Keyless Pillar Drill Chuck 16mm
• Overall Height: 1635mm
• Speed Range: 160-3000rpm
• Spindle Centre to Column: 216mm
• Spindle Nose Taper: MT3
• Spindle Travel: 80mm
• Supply: 230V
• Swing: 512mm
• Working Base Surface Size: 205 x 200mm
• Working Table Surface Size: 356 x 356mm
