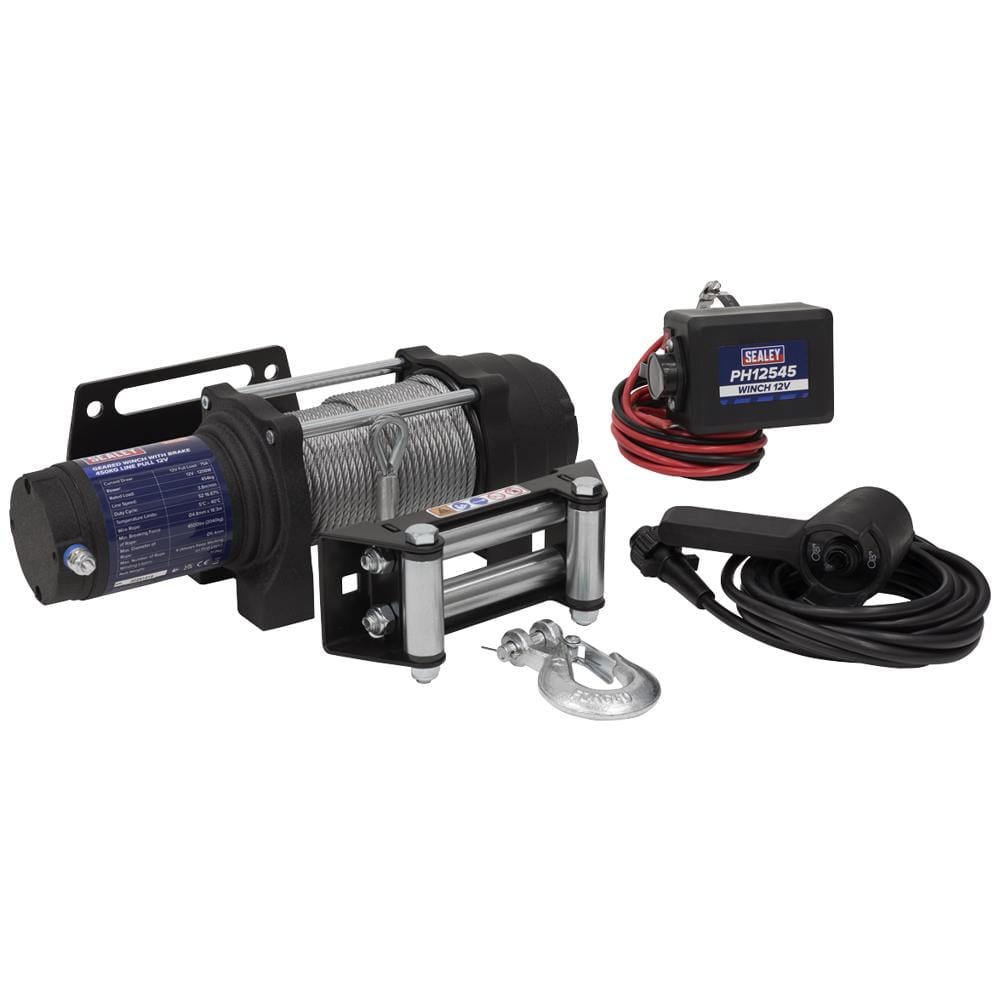

Sealey PH12545 12v Geared Winch with Brake

The Sealey PH12545 is a 12V geared winch with dual braking system, rated at 454kg line pull and built for demanding recovery and lifting applications.

Powered by a permanent magnet 12V motor delivering 1,200W, this compact winch provides reliable pulling power across a wide range of tasks. The 3-stage planetary gear train with a 140:1 gear ratio maximises the force generated, making light work of heavy loads.

Durability is built in from the ground up. The reinforced steel drum is designed to withstand repeated use under load, while the IP68 weatherproof rating ensures reliable performance in even the harshest outdoor conditions — making it equally suited to site work, agricultural use, or off-road recovery.

Safety is a priority with the dual-brake system, which combines a mechanical cone brake and a permanent motor dynamic brake. Working together, these two systems keep the load stable and protect the operator during operation. The 18.3m wire rope with a minimum breaking force of 2,040kg provides a substantial safety margin above the 454kg rated capacity.

Features and Benefits:
• IP68 weatherproof rating — suitable for use in all weather conditions
• 3-stage planetary gear train with 140:1 gear ratio for maximised pulling force
• Dual-brake system — mechanical cone brake and dynamic motor brake for load stability and operator safety
• Reinforced steel drum for strength and durability under load
• 18.3m wire rope included with minimum breaking force of 2,040kg
• Compact 12V operation — compatible with standard vehicle batteries

Specifications:
Model No: PH12545
Brand: Sealey
Motor Power: 12V - 1,200W
Current Draw: 75A (12V full load)
Gear Ratio: 140:1
Rated Capacity: 454kg (1,000lbs)
Line Pull: 454kg (1,000lbs)
Line Speed (Full Load): 3.8m/min
Min. Breaking Rope Force: 2,040kg (4,500lbs)
Wire Rope Diameter: Ø4.8mm
Wire Rope Length: 18.3m
Max. Rope Diameter: Ø5.4mm
Max. Rope Winding Layers: 4 (always operate on first layer)
Nett Weight: 11kg
