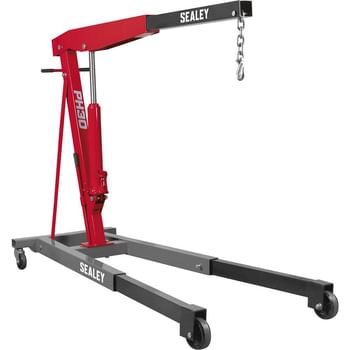

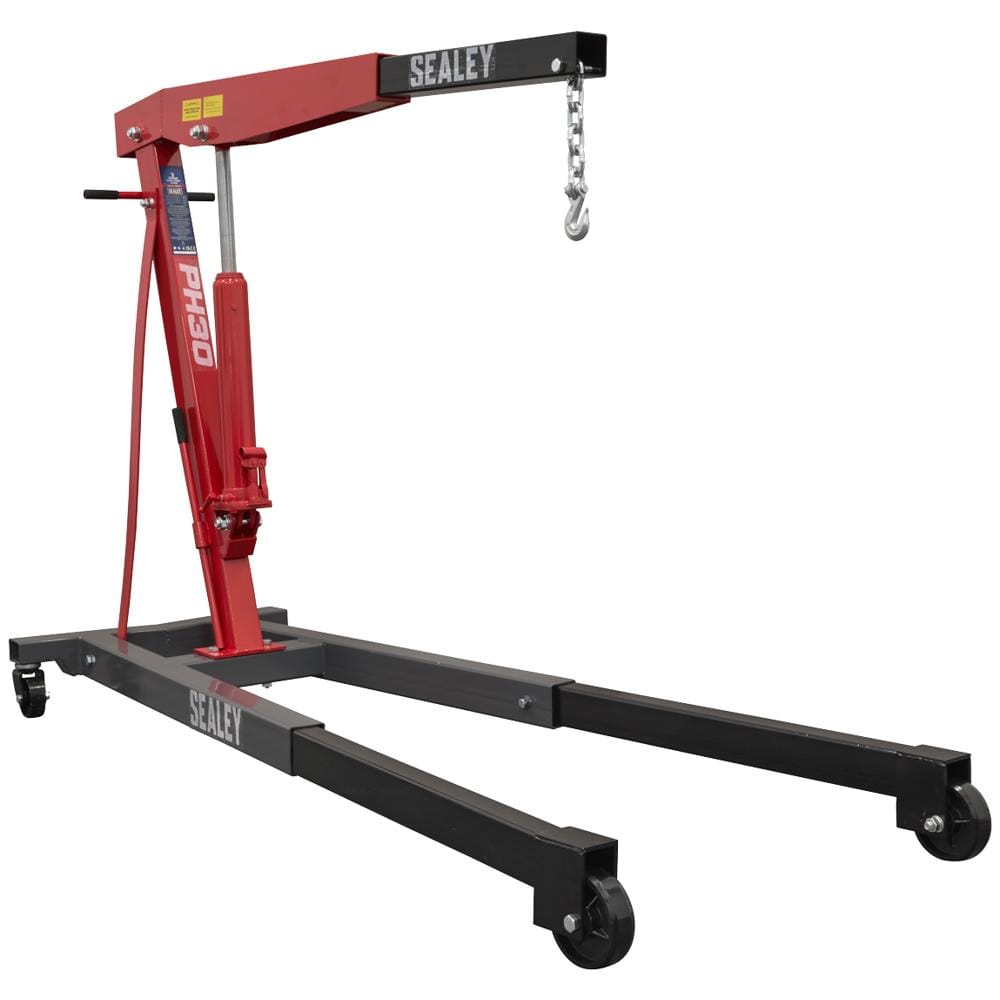

Sealey PH30 Fixed Frame Engine Crane

The Sealey PH30 is a heavy-duty fixed frame engine crane designed for demanding commercial, industrial and workshop applications. Built to handle substantial loads with professional reliability, this robust lifting solution offers impressive versatility with a maximum capacity of 3000kg at its closest jib position.

This engine crane features a four-position adjustable beam system that allows operators to balance capacity with reach according to the task at hand. At the minimum 1200mm jib extension, the crane lifts 3000kg, reducing to 2000kg at 1400mm, 1500kg at 1610mm, and 1000kg at the maximum 1820mm extension. The extendable heavy-duty legs provide enhanced stability when working at maximum jib reach, whilst the heavy-duty fixed front wheels and rear castors ensure safe manoeuvrability when handling heavy loads.

Weighing 155kg, the PH30 is engineered for reliability in professional environments where substantial engine and component lifting is routine. Side-mounted pump access enables safe operation and precise load control, whilst the robust construction delivers the durability required for intensive workshop use. The crane is supplied in knock-down form requiring self-assembly, reducing freight costs whilst maintaining the structural integrity expected from professional-grade lifting equipment.

Features and Benefits:
• Four-position adjustable jib beam for versatile load positioning and capacity management
• Extendable legs for improved stability during operation at extended reach
• Heavy-duty fixed front wheels and rear castors for safe load handling and manoeuvrability
• Side pump access for convenient and safe operation
• Maximum lift height of 2220mm at full jib extension for overhead clearance

Specifications:
Brand: Sealey
Height Jib Down: 1610mm
Height Legs Folded: N/A
Height of Frame: 195mm
Length Legs Extended: 950mm
Length of Jib Position 1: 1200mm
Length of Jib Position 2: 1400mm
Length of Jib Position 3: 1610mm
Length of Jib Position 4: 1820mm
Length of Jib Position 5: n/a
Lifting Capacity in Position 1: 3000kg
Lifting Capacity in Position 2: 2000kg
Lifting Capacity in Position 3: 1500kg
Lifting Capacity in Position 4: 1000kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1880mm
Max. Lift Ht at Jib Position 2: 1970mm
Max. Lift Ht at Jib Position 3: 2010mm
Max. Lift Ht at Jib Position 4: 2220mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 155kg
Note: *Legs Extended
Rear Width: 780mm
Width Front Frame: 855mm*
Width Inside Front Frame: 700mm*
