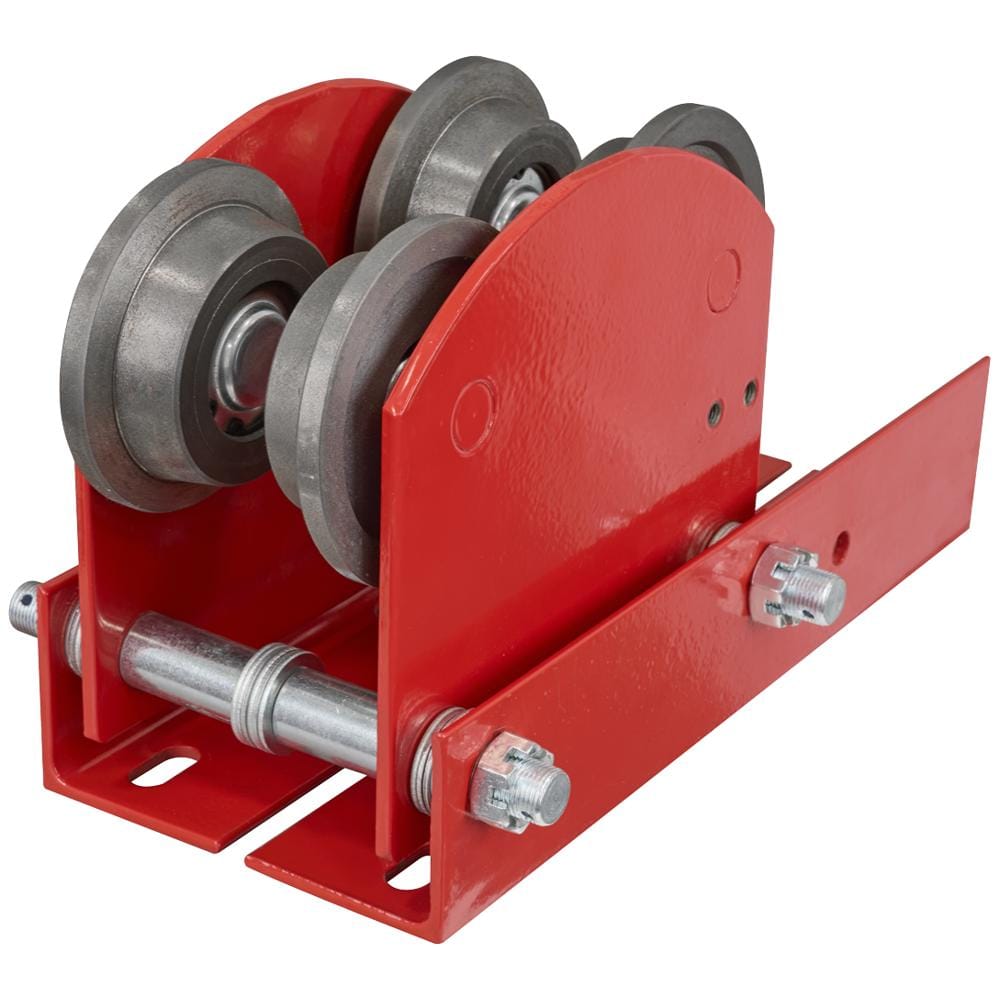

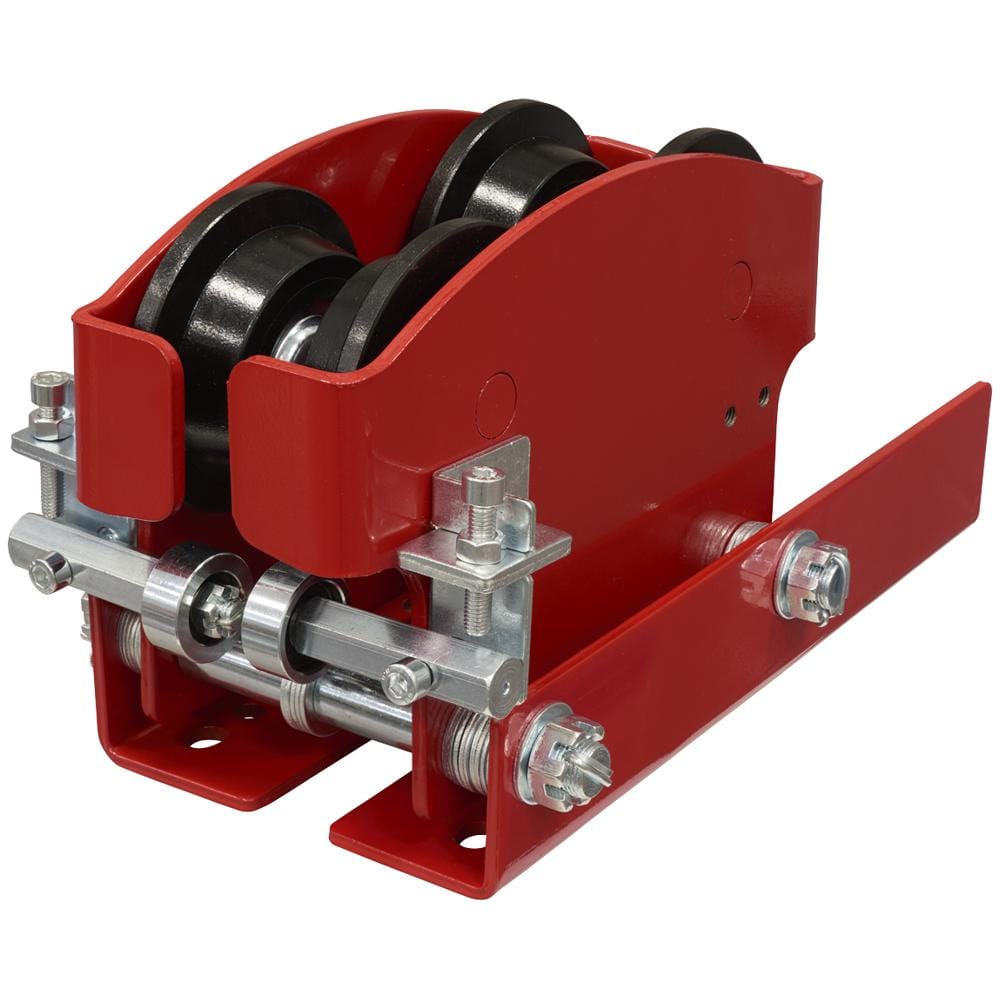

Sealey RSJ and I Beam Mounting Manual Hoist Trolley

The Sealey PHT1000 is a manual hoist trolley designed for mounting onto I-beams and RSJ steel sections, enabling loads to be manoeuvred horizontally with ease. With a 1000kg capacity, it is well suited to workshop, garage, and light industrial environments where a hoist needs to travel along a beam rather than lift from a fixed point.

Compatible with Sealey Power Hoists (a fixing plate is included), as well as lever hoists and chain blocks, this trolley offers genuine flexibility across a range of lifting setups. The adjustable frame secures to beams between 68 and 110mm wide, with castellated nuts providing a reliable, positive lock once the correct width is set.

Construction is in strong steel with a powder coat finish for rust resistance, making it suitable for workshop conditions where exposure to moisture and general wear is a consideration. At 12kg, the trolley is robust without being unwieldy to install.

Features and Benefits:
• 1000kg load capacity suitable for demanding workshop and light industrial use
• Compatible with Power Hoists (fixing plate included), lever hoists, and chain blocks
• Adjustable frame fits I-beams and RSJs from 68 to 110mm wide
• Castellated nuts secure the frame firmly at the correct beam width
• Powder coat steel finish provides resistance to rust and everyday workshop wear
• Minimum curve radius of 1000mm allows use on curved beam tracks

Specifications:
Brand: Sealey
Model No: PHT1000
Type: Plain
Capacity: 1000kg
Nett Weight: 12kg
Track Width Adjustable Range: 68-110mm
Minimum Curve Radius: 1000mm
Steel Beam (a): 10-22a
