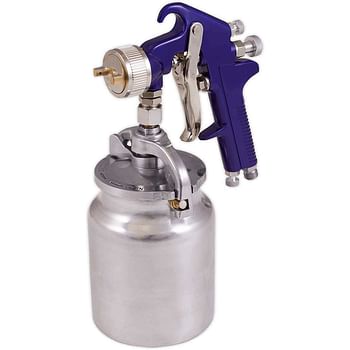

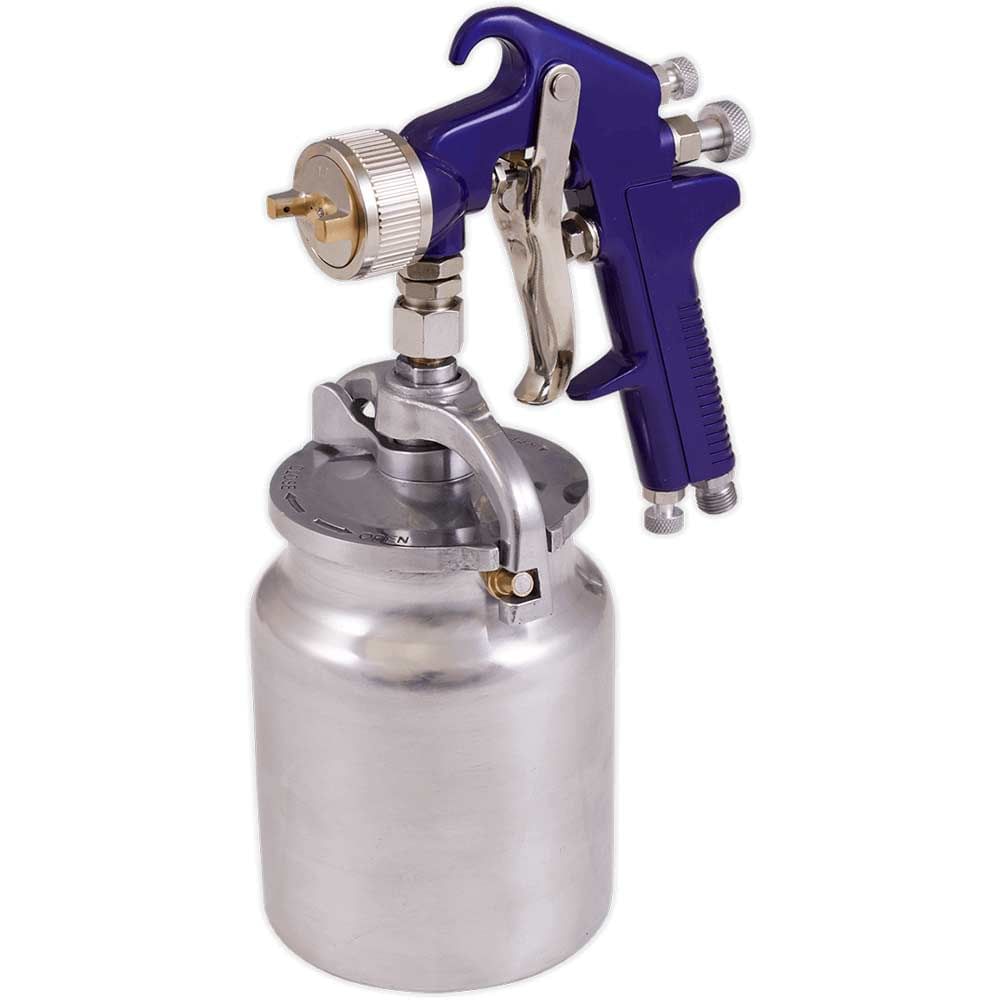

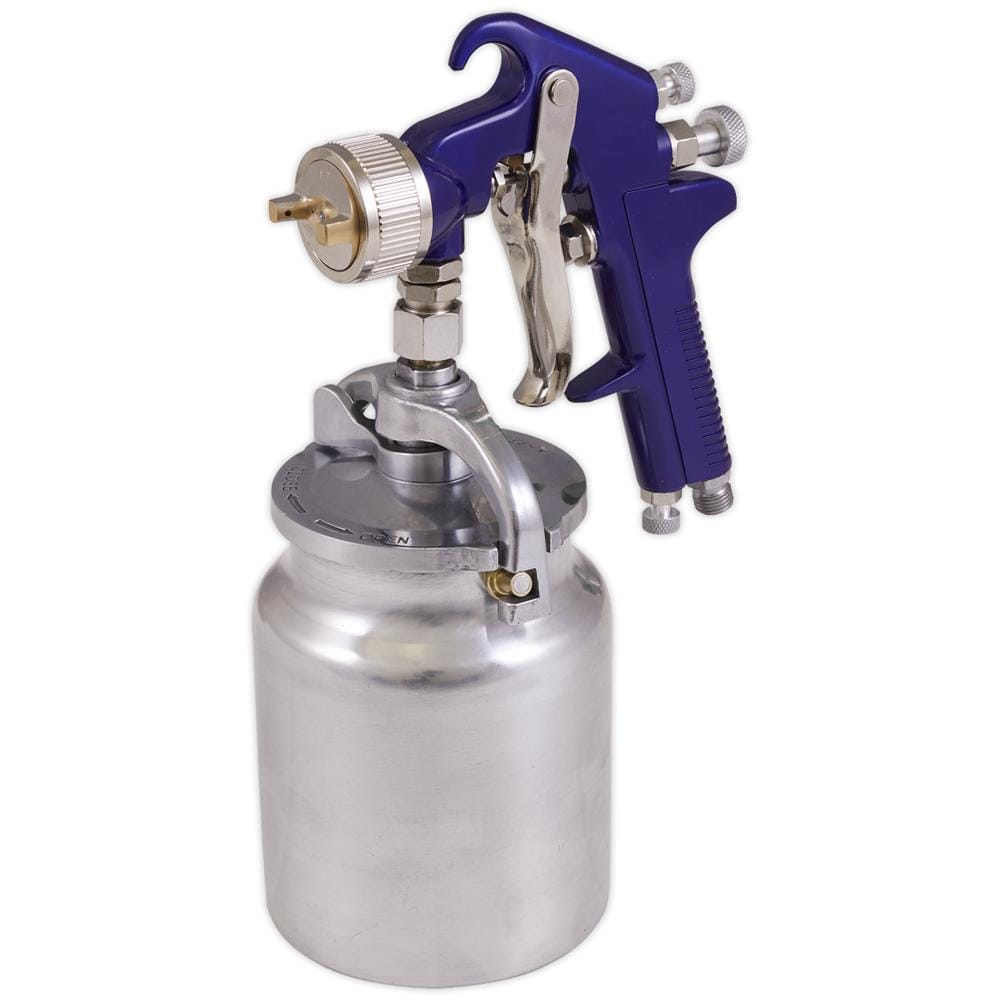

Sealey S717 Suction Feed Spray Gun

The Sealey S717 is a professional suction feed spray gun designed for automotive refinishing and general spray painting applications. Featuring a 2-stage trigger control for precise operation, this spray gun delivers professional results with excellent user control. The robust 1000ml aluminium suction feed pot provides ample capacity for extended spraying sessions without frequent refills.

Built for versatility, the S717 offers fully adjustable spray width and fluid flow controls, allowing operators to tailor the spray pattern to suit different coating materials and surface requirements. Supplied as standard with a 1.7mm nozzle set-up, the gun is ideally suited to applying primers, basecoats and topcoats in automotive workshops and body shops.

The gun operates at a recommended 57psi air pressure with a modest 3-4cfm air consumption, making it compatible with most workshop compressors. Additional nozzle set-ups are available separately – 2.0mm (Model No. WEN-SET2.0) for heavier materials and 2.5mm (Model No. WEN-SET2.5) for higher viscosity coatings, providing flexibility across various spraying tasks.

Features and Benefits:
• 2-stage trigger control for precise paint and air flow adjustment
• 1000ml aluminium pot for extended spraying without frequent refilling
• Adjustable spray width and fluid flow for versatile application
• Maintenance tools supplied for routine cleaning and servicing
• Compatible with alternative nozzle sizes for different coating viscosities

Specifications:
Air Consumption: 3-4cfm
Available Set-Up(s): 2, 2.5mm
Brand: Sealey
Nett Weight: 1.01kg
Pot Capacity: 1000ml
Recommended Air Pressure: 57psi
Standard Set-Up: 1.7mm
