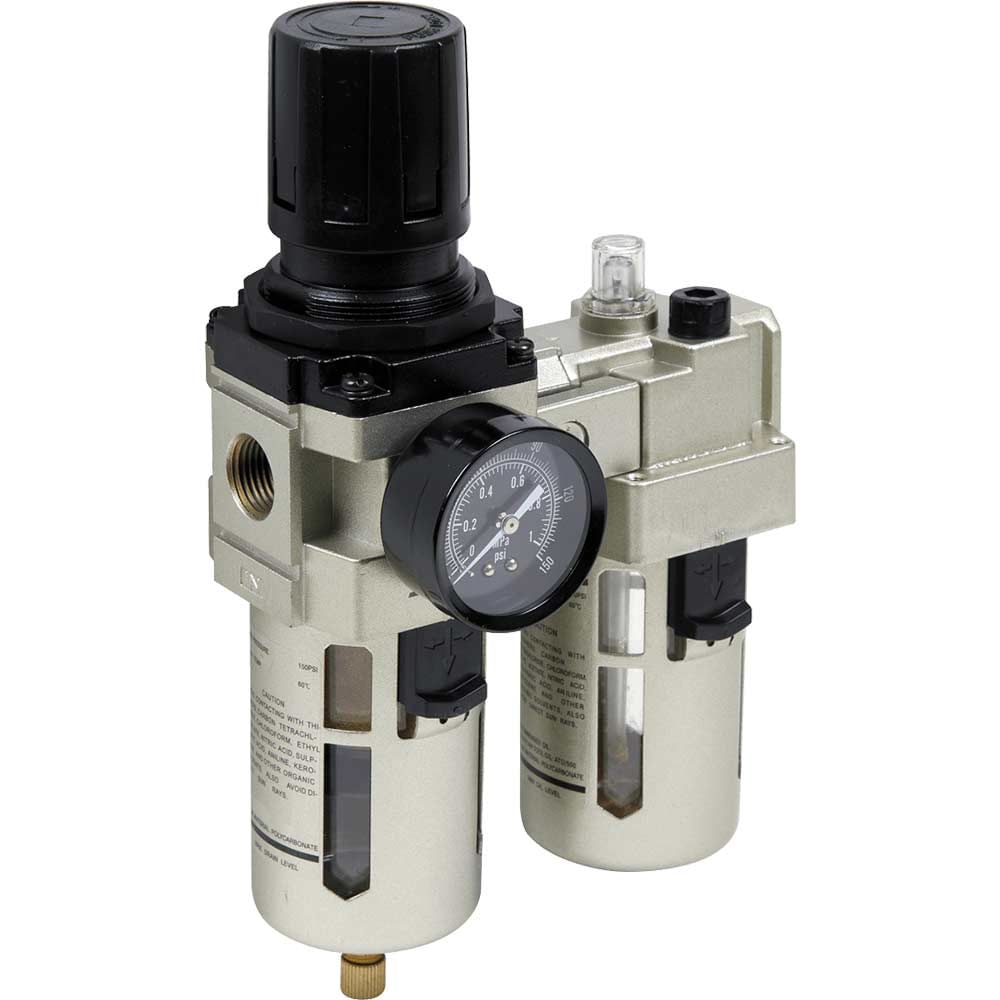

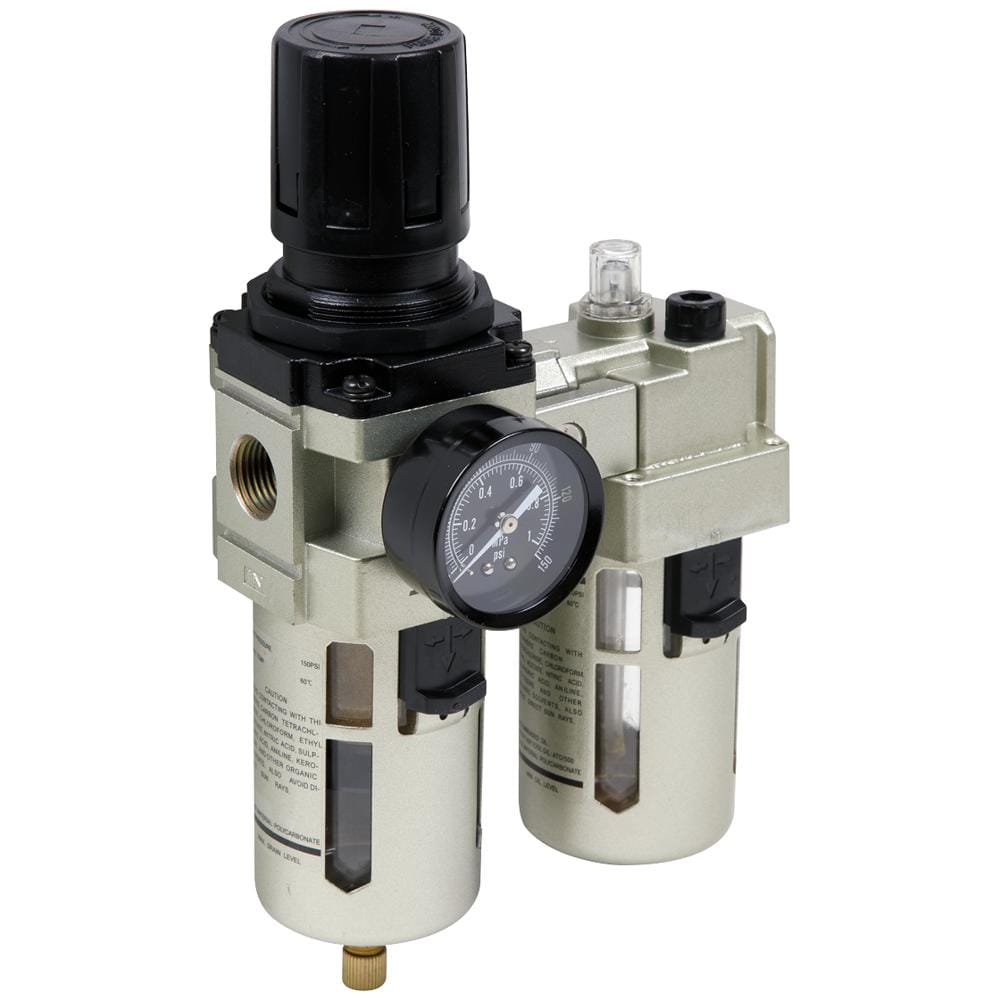

Sealey SA206 Air Line Filter / Regulator / Lubricator

The Sealey SA206 is a professional-grade three-stage air line filter, regulator and lubricator unit designed for industrial workshop air supply systems requiring high-volume applications. This comprehensive FRL unit delivers filtered, pressure-regulated and lubricated compressed air to pneumatic tools and equipment, ensuring optimal performance and extended tool life.

Engineered for demanding workshop environments, the SA206 features a regulator assembly with a locking control knob that allows operators to preset and maintain consistent air pressure throughout operation. The large, easy-to-read pressure gauge provides clear visibility of output pressure, whilst the manual drain facility with female 1/8"BSP outlet enables efficient moisture removal from the system.

The integrated lubricator incorporates adjustable oil/air mix control and a transparent sight glass for monitoring oil levels and flow rate at a glance. Both the filter and lubricator are fitted with robust metal bowl cages that provide essential protection against impact damage in busy workshop settings. The unit is supplied complete with a wall bracket for secure mounting, making installation straightforward.

With 1/2"BSP inlet and outlet connections, this FRL unit handles maximum airflow of 105cfm at 100psi supply pressure, accepting input pressures up to 150psi and delivering regulated output up to 125psi. Ideal for automotive workshops, manufacturing facilities and fabrication shops where multiple air tools operate simultaneously from a central compressed air system.

Features and Benefits:
• Three-stage filtration, regulation and lubrication in one compact unit
• Locking pressure control knob prevents accidental adjustment during operation
• Metal bowl cage protection guards against workshop impact damage
• Adjustable oil/air mix ratio optimises lubrication for different tool types
• High-volume 105cfm capacity suitable for industrial applications
• Wall mounting bracket included for secure installation

Specifications:
• Brand: Sealey
• Inlet Size: 1/2"BSP
• Maximum Air Input: 150psi
• Maximum Air Output: 125psi
• Maximum Airflow: 105cfm*
• Nett Weight: 1.88kg
• Note: *Supply Pressure of 100psi
• Outlet Size: 1/2"BSP
