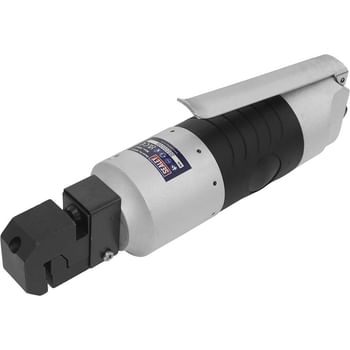

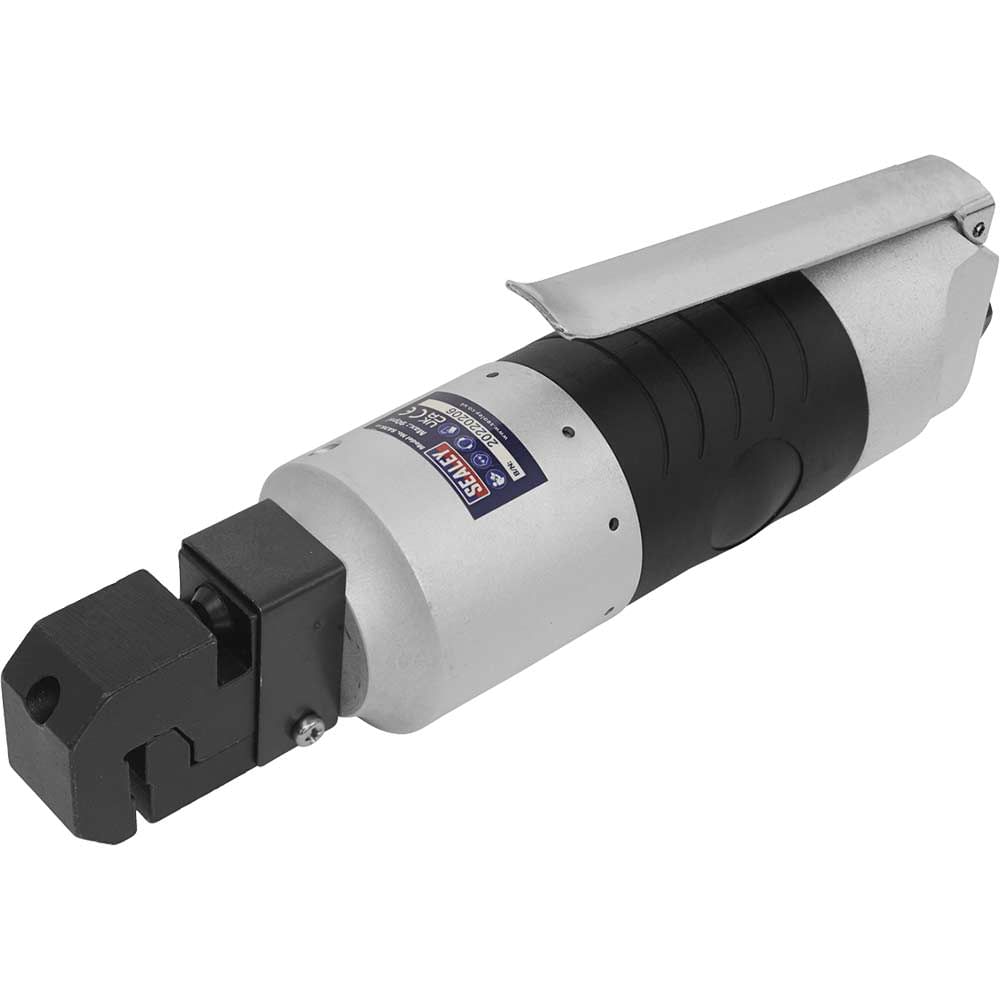

Sealey SA36 Air Punch/Flange Tool

The Sealey SA36 Air Punch/Flange Tool is a pneumatic bodyshop tool designed for creating flanges and spot-weld preparation holes in automotive panels. Built to withstand heavy bodyshop use, this dual-function air tool combines professional panel joining capabilities with MIG welding preparation in a single compact unit.

Featuring a robust aluminium alloy body with hardened steel punch and die components, the SA36 delivers reliable performance in demanding workshop environments. The tool creates precise 10mm flanges on car panel thickness sheet metal for lap jointing applications, whilst also punching 5mm diameter holes for MIG spot-welding operations. This versatility makes it an essential addition to any body repair or fabrication workshop where panel joining and welding preparation are routine tasks.

Operating at 90psi with a modest 2cfm air consumption, this air punch flange tool connects via a standard 1/4" BSP air inlet, ensuring compatibility with most workshop air supply systems. At just 1.3kg, the lightweight construction reduces operator fatigue during extended use, whilst the relatively low vibration rating of 0.8m/s² enhances user comfort and control during precision metalworking operations.

Features and Benefits:
• Dual-function design creates flanges and spot-weld holes with one tool
• Durable aluminium alloy body with steel punch and die for professional longevity
• Low air consumption of 2cfm for economical workshop operation
• Lightweight 1.3kg design reduces operator fatigue
• Replacement consumable parts available for extended service life

Specifications:
Air Consumption: 2cfm
Air Inlet Size: 1/4"BSP
Brand: Sealey
Consumable Parts: SA36.V2-06 - Replacement Punch; SA36.V2-03 - Replacement Die
Nett Weight: 1.3kg
Noise Power/Pressure: 85/74dB(A)
Operating Pressure: 90psi
Vibration/Uncertainty: 0.8/0.57m/s²
