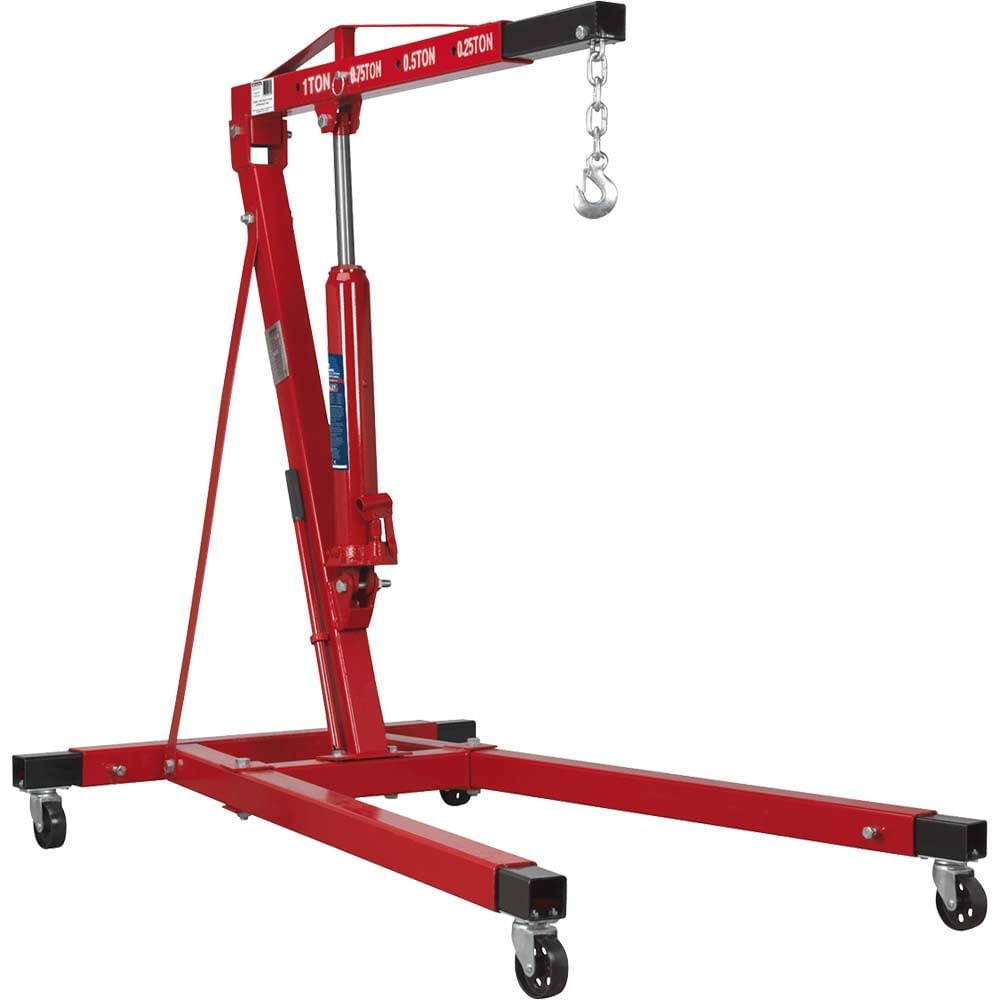

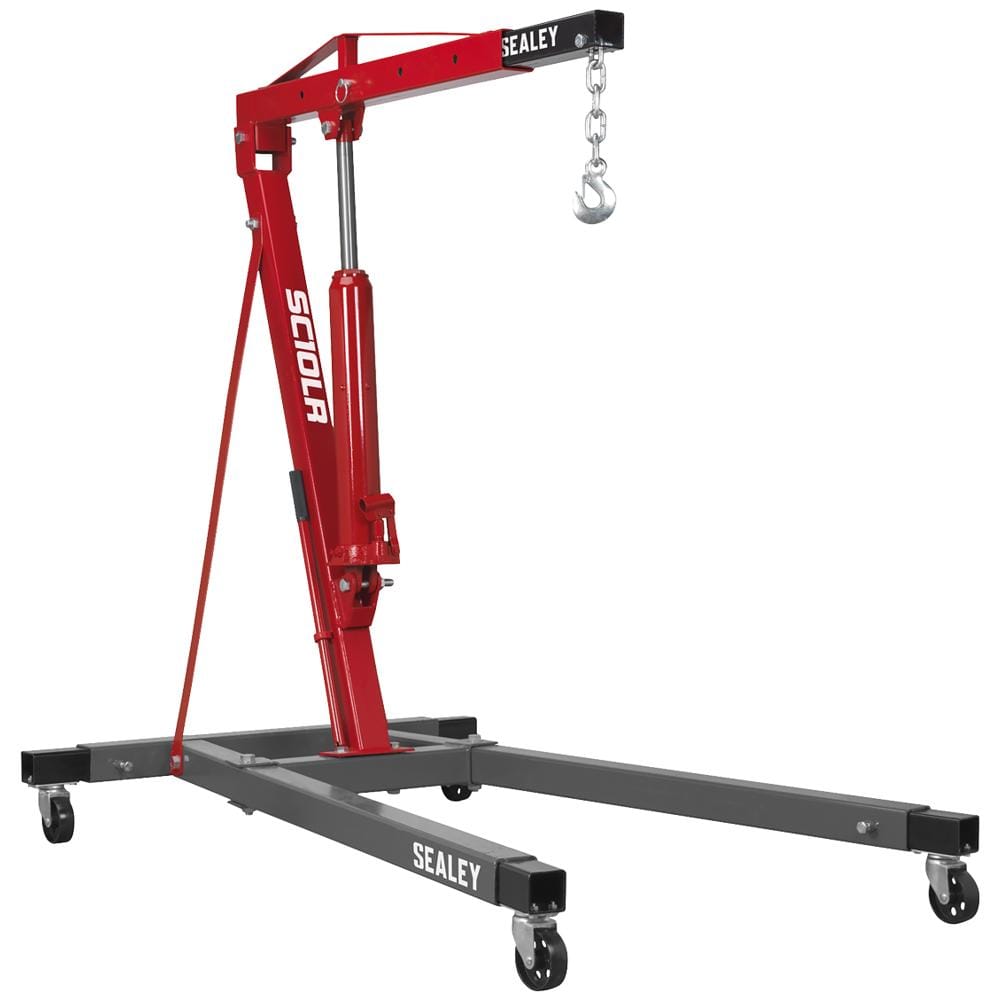

Sealey SC10LR Long Reach Crane

The Sealey SC10LR is a long reach engine crane designed for lifting heavy loads in workshops and garage environments where extended reach capability is essential. This heavy-duty lifting equipment features extendable legs with robust front and rear castors that provide enhanced stability, particularly crucial when operating at the maximum jib extension of 1447mm.

The crane offers four adjustable jib positions, delivering variable lifting capacities from 1000kg at the shortest 937mm extension down to 250kg at the full 1447mm reach. Maximum lift heights range from 1750mm to 2050mm depending on jib position, providing versatility for different engine removal and installation tasks. The side-mounted hydraulic pump allows easy access whilst maintaining clear visibility of the load throughout the lifting operation.

Designed with practicality in mind, the SC10LR features a folding construction that facilitates compact storage and transportation between job sites. The removable handle further aids space-saving storage, whilst the knock-down delivery format helps reduce freight costs. With extendable legs that adjust from 1450mm to 1590mm, the crane provides a stable working platform for professional mechanics and vehicle technicians handling engine removal, transmission work, and other heavy component lifting tasks.

Features and Benefits:
• Extendable legs with heavy-duty castors for superior stability during extended reach operations
• Side-mounted pump maintains clear line of sight to load throughout lifting process
• Four jib positions offering lifting capacities from 250kg to 1000kg
• Folding design with removable handle for compact storage and transportation
• Maximum lift height of 2050mm at full extension
• Knock-down delivery format reduces shipping costs

Specifications:
Brand: Sealey
Height Jib Down: 1446mm
Height of Frame: 180mm
Length Legs Extended: 1600mm
Length of Jib Position 1: 937mm
Length of Jib Position 2: 1107mm
Length of Jib Position 3: 1277mm
Length of Jib Position 4: 1447mm
Length of Jib Position 5: n/a
Length: 1450mm
Lifting Capacity in Position 1: 1000kg
Lifting Capacity in Position 2: 750kg
Lifting Capacity in Position 3: 500kg
Lifting Capacity in Position 4: 250kg
Lifting Capacity in Position 5: n/a
Max. Lift Ht at Jib Position 1: 1750mm
Max. Lift Ht at Jib Position 2: 1850mm
Max. Lift Ht at Jib Position 3: 1950mm
Max. Lift Ht at Jib Position 4: 2050mm
Max. Lift Ht at Jib Position 5: n/a
Nett Weight: 81.5kg
Rear Width: 860/1160mm
Standard Leg Length: 1450mm
Extended Leg Length: 1590mm
Extendable Distance: 140mm
Width Front Frame: 690-720mm
Width Inside Front Frame: 381/605mm
