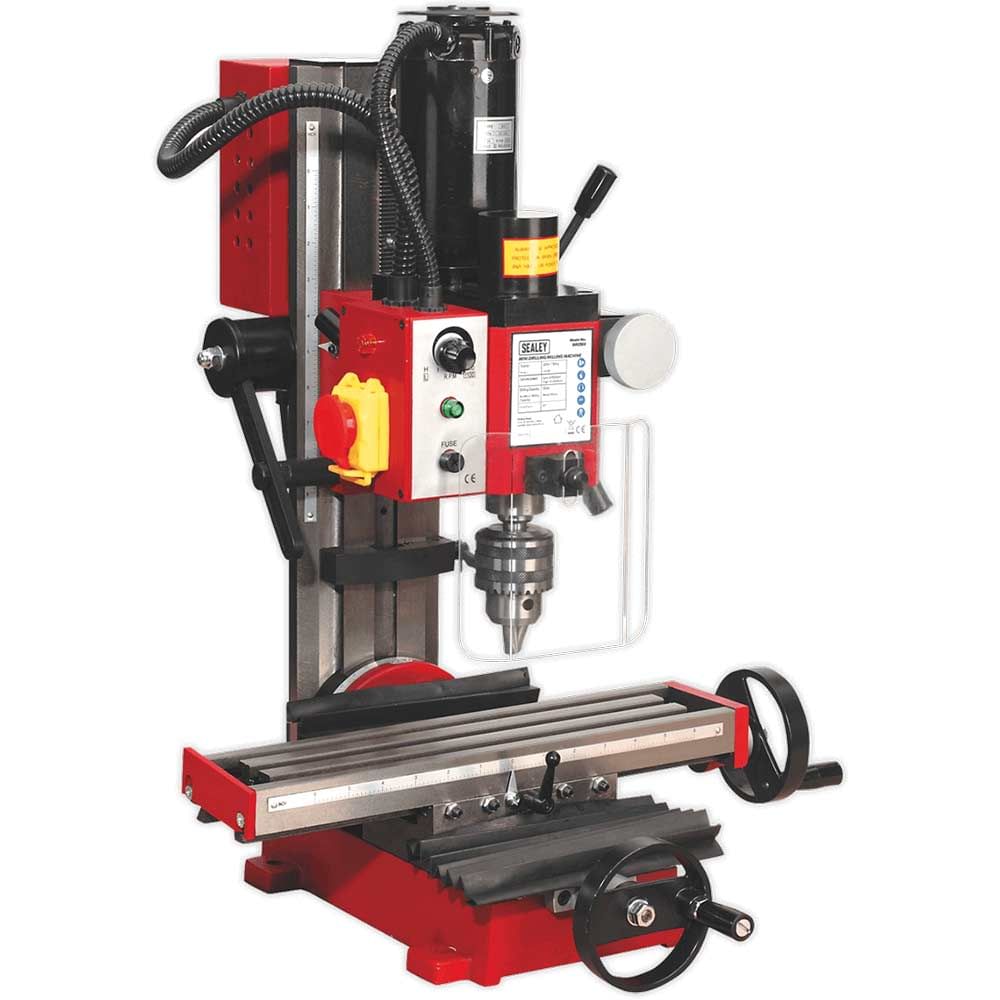

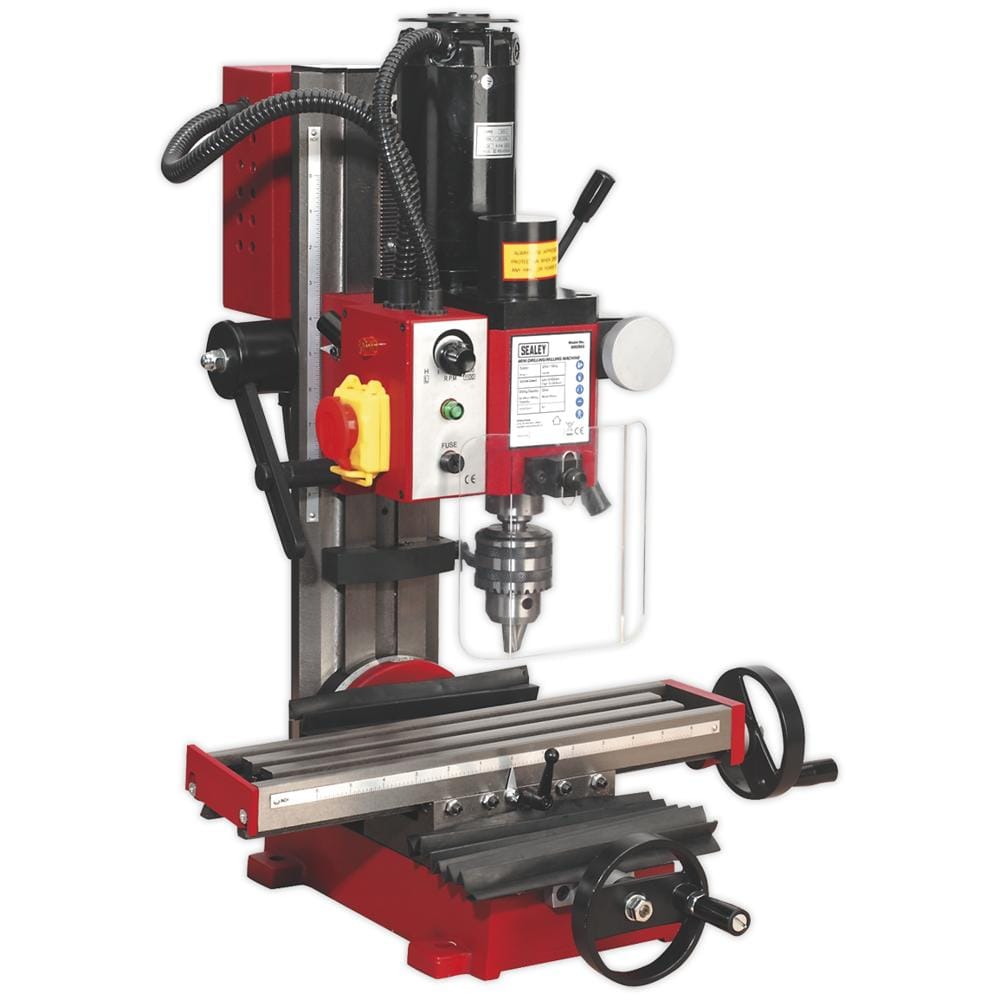

Sealey SM2502 Mini Drilling and Milling Machine

The Sealey SM2502 is a bench-mounting mini drilling and milling machine designed for precision work across a wide range of materials. This versatile unit combines drilling and milling capabilities in a compact format, making it ideal for workshops where space is at a premium but performance cannot be compromised.

Powered by a 350W motor with variable speed drive, the SM2502 delivers spindle speeds from 0-1100rpm in the low range and 0-2500rpm in the high range, providing the flexibility to work with different materials and cutting tools. The working table features T-slots for secure clamping of workpieces, whilst metric graduated compound scales ensure accurate positioning with 220mm longitudinal axis travel and 100mm cross axis movement.

A standout feature is the tilting column mechanism, which allows drilling and milling operations at ±45° from vertical, expanding the range of applications considerably. The machine is supplied with a 13mm chuck and a complete accessory kit for adjusting and setting, providing everything needed to get started. With an MT3 spindle nose taper and capacities including 16mm end mill and 30mm face mill, this machine is suitable for precision engineering tasks, model making, and general workshop applications. An optional stand (Model No. SM3002ST) is available separately for those requiring freestanding installation.

Features and Benefits:
• Variable speed drive with dual range capability for optimal cutting speeds
• Tilting column mechanism enables angled drilling and milling operations
• T-slotted work table with metric graduated scales for precise workpiece positioning
• MT3 spindle taper compatible with standard tooling accessories
• Supplied complete with 13mm chuck and adjustment accessories

Specifications:
Brand: Sealey
Cross Axis: 100mm
Drilling Capacity (Chuck Size): 13mm
End Mill Capacity: 16mm
Face Mill Capacity: 30mm
Headstock Travel: 180mm
Longitudinal Axis: 220mm
Motor Power: 350W
Nett Weight: 68kg
Spindle Nose Taper: MT3
Spindle Speed - High Range: 0-2500rpm
Spindle Speed - Low Range: 0-1100rpm
Spindle Tilt Angle: ±45°
Supply: 230V
T-Slot: 12mm
